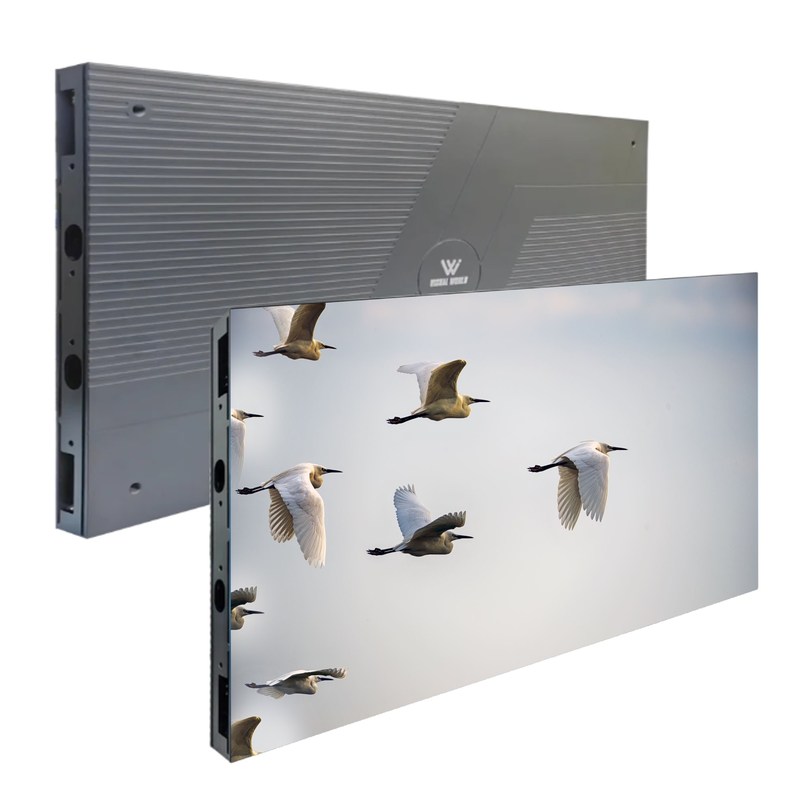

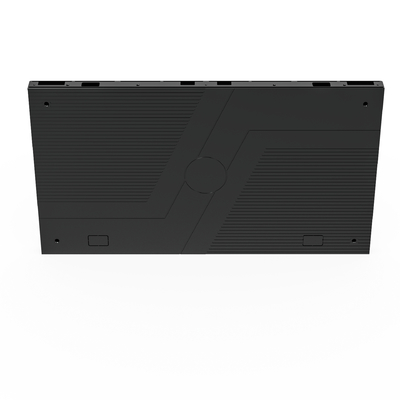

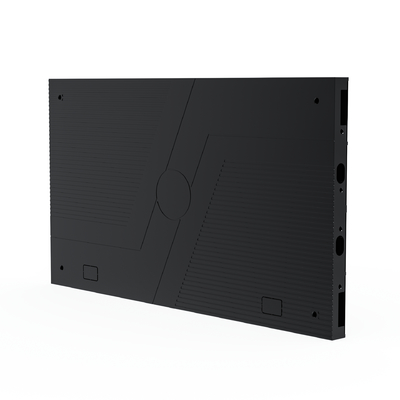

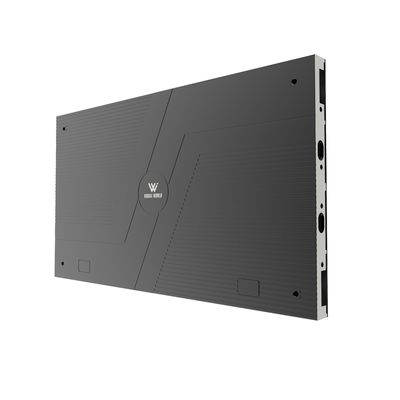

P1.56 COB Small Pixel Pitch LED Display Weight 4kg Thickness 29.5mm For Showing
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.56 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.56 COB Small Pixel Pitch LED Display Weight 4kg Thickness 29.5mm For Showing | Pixel Pitch: | 1.56mm |
|---|---|---|---|
| Refresh Rate: | >3840Hz Or >7680Hz | Cabinet Size: | 600×337.5×29.5mm |
| Maintenance: | Front Service | IP Rating: | Front: IP54 Rear: IP30 |
| Cabinet Weight: | 4kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | P1.56 COB LED display,small pixel pitch LED screen,ultra-thin 29.5mm LED display |
||
Product Description
P1.56 COB Small Pixel Pitch LED Display
The P1.56 Flip-COB Small Pixel Pitch LED Display leverages advanced full flip-chip COB technology to achieve a slim, lightweight, and ultra-thin profile. Its 16:9 aspect ratio ensures seamless compatibility with diverse content formats, while front-access maintenance simplifies servicing. An optimized thermal management system enhances durability, and built-in signal and power redundancy guarantees uninterrupted operation—making it the premier solution for high-performance display environments.
Key Features
- Full flip-chip COB process integrates advanced protective technologies including anti-collision, waterproofing, moisture resistance, and salt-spray protection
- 3D ink printing technology enhances contrast by 20% and reduces brightness requirements for optimal display performance
- Built-in LCD status display panel provides real-time insights into cabinet operational status for efficient monitoring
- HDI multi-layer circuit PCB design ensures uniform color representation and stable temperature management
- Energy-efficient common cathode chips deliver exceptional grayscale performance up to 16 bits
Technical Specifications
| Model | P1.56 |
| Pixel Pitch | 1.56mm |
| LED Type | Flip-COB (common cathode) |
| Cabinet Dimension | 600×337.5×29.5mm |
| Cabinet Resolution | 384×216 |
| Module Size | 150×168.75mm |
| Cabinet Weight | 4kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type | 1/48 |
| Maintenance | Front service |
| Brightness | 600/1000 nits |
| Max Power | 330W/m² |
| Average Power | 100W/m² |
| IP Rating | Front: IP54 Rear: IP30 |
| Refresh Rate | >3840Hz or >7680Hz |
| Installation Type | Mounting/Hanging/Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170° V:170° |
| Operational Temperature | -20℃ to +50℃ |
| Operational Humidity | 10%-90% RH |
Application Scenarios
- Digital Signage Systems: Ideal for malls, airports, stations, and offices, offering vibrant, high-brightness displays for dynamic ads and information
- Football Stadiums: Delivers high-resolution replays, scores, and ads with reliable performance and efficient heat dissipation
- Perimeter LED Posters: Perfect for sports fields and event venues, providing dynamic ads and info with easy installation
- Arena Displays: Designed for concert halls, convention centers, and arenas, offering vivid visuals with high contrast for live events
Service and Support
- Pre-Sale Services: 24-hour response to inquiries, market research, customized solutions, datasheets, samples, custom packing, and factory visits
- In-Sale Process: Production monitoring, photos/videos upon request, free spare parts included
- After-Sales Support: 24-hour complaint response, maintenance guidance within 48 hours, 24-month warranty, free technician training, and comprehensive documentation
Frequently Asked Questions
Do you offer sample orders?
Yes, we welcome sample orders so you can assess the quality and test the market before committing to bulk purchases.
Is there a warranty included?
Definitely! We provide a 24-month warranty on our products to guarantee your satisfaction and confidence in our offerings.
Can I customize the product?
Of course! We provide full customization options, supported by our dedicated product development team to meet your specific requirements.
What is your minimum order quantity (MOQ)?
There is no strict MOQ, and we offer competitive pricing for bulk orders.
To order a display, what kind of information do I have to offer you?
You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
