P0.9 Small Pixel Pitch LED Display Full Flip-chip COB Process For Video Display
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 Small Pixel Pitch LED Display Full Flip-chip COB Process For Video Display | Pixel Pitch: | P0.9 |
|---|---|---|---|
| Cabinet Weight: | 4kg | Cabinet Size: | 600x337.5×29.5mm |
| Maintenance: | Front Service | IP Rating: | Front: IP54 Rear: IP30 |
| Cabinet Material: | Die-casting Aluminum | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | P0.9 small pixel pitch LED display,Full flip-chip COB LED screen,Fine pixel pitch video display |
||
Product Description

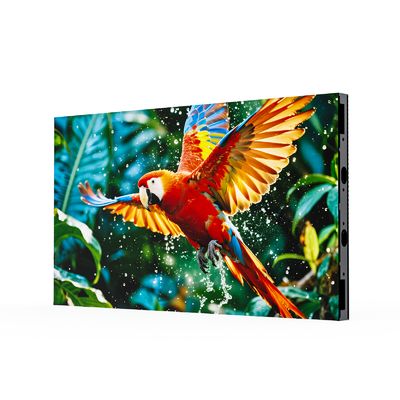

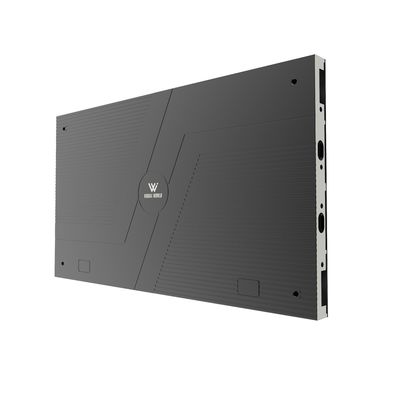

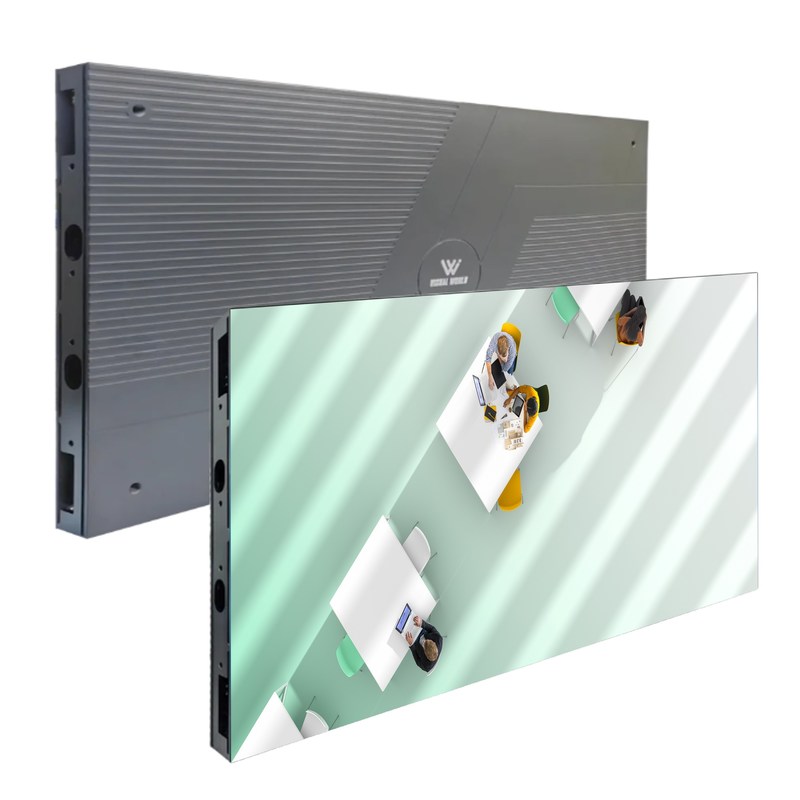

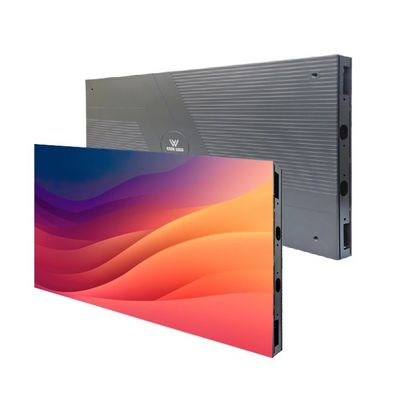

P0.9 Small Pixel Pitch LED Display Full Flip-chip COB Process
The P0.9 COB Small Pixel Pitch LED Display leverages advanced full flip-chip COB technology to achieve a slim, lightweight, and ultra-thin profile. Its 16:9 aspect ratio ensures seamless compatibility with diverse content formats, while front-access maintenance simplifies servicing. An optimized thermal management system enhances durability, and built-in signal and power redundancy guarantees uninterrupted operation—making it the premier solution for high-performance display environments.
Key Features
- The full flip-chip COB process integrates advanced protective technologies, including anti-collision, waterproofing, moisture resistance, and salt-spray protection
- The module incorporates 3D ink printing technology, enhancing contrast by 20% and reducing the brightness requirements for optimal display performance
- A built-in LCD status display panel provides real-time insights into the cabinet's operational status, ensuring efficient monitoring and maintenance
- The PCB design features an HDI multi-layer circuit structure, guaranteeing uniform color representation and stable temperature management for reliable performance
- This series leverages Sunrise's energy-efficient common cathode chips, delivering exceptional grayscale performance with levels of up to 16 bits
Technical Parameters
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | Flip-COB(common cathode) | |||
| Cabinet Dimension(mm) | 600*337.5*29.5 | |||
| Cabinet Resolution | 768*432 | 640*360 | 480*270 | 384*216 |
| Module Size(mm) | 150x168.75 | |||
| Cabinet Weight | 4kg | |||
| Cabinet Material | Die-casting Aluminum | |||
| Driving Type | 1/36 | 1/36 or 1/54 | 1/27 or 1/60 | 1/48 |
| Maintenance | Front service | |||
| Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
| Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
| Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
| IP Rating | Front: IP54 Rear: IP30 | |||
| Refresh Rate | >3840Hz or >7680Hz | |||
| Installation Type | Mounting/Hanging/Stacking | |||
| Gray Scale | 16bit | |||
| Viewing Angle | H:170°V:170° | |||
| Operational Temp | -20℃~+50℃ | |||
| Operational Humidity | 10%-90%RH | |||
Applications
- Digital Signage Systems: Ideal for malls, airports, stations, and offices, offering vibrant, high-brightness displays for dynamic ads and information, ensuring visibility in bright settings
- Football Stadiums: Delivers high-res replays, scores, and ads with reliable performance and efficient heat dissipation for long events
- Perimeter LED Posters: Perfect for sports fields and event venues, providing dynamic ads and info with easy installation and maintenance
- Arena Displays: Designed for concert halls, convention centers, and arenas, offering vivid visuals with high contrast for live events, promotions, and announcements
Service and Support
- Pre-Sale Services: 24-hour response to inquiries. Market research and customized solutions. Datasheets, samples, custom packing, and factory visits
- In-Sale Process: Production monitoring. Photos/videos upon request. Free spare parts are included
- After-Sales Support: 24-hour complaint response. Maintenance guidance within 48 hours. 24-month warranty, free technician training, and comprehensive documentation
Frequently Asked Questions
Do you offer sample orders?
Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen. Mixed samples are acceptable.
Is there a warranty included?
Definitely! We provide a 24-month warranty on all our products to guarantee your satisfaction and confidence in our offerings.
Can I customize the product?
Of course! We provide full customization options, supported by our dedicated product development team to meet your specific requirements.
What is your minimum order quantity (MOQ)?
Low MOQ, 1 square meter or a module checking is available.
To order a display, what kind of information do I have to offer you?
You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
