P2.85 Outdoor Display Module Full Front Access Die-casting Aluminum IP67 5000 nits
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, EMC, LVD, ROHS, FCC |
| Model Number: | P2.85 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | plywood case, carton box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P2.85 Outdoor Display Module Full Front Access Die-casting Aluminum IP67 5000 Nits | Pixel Pitch: | 2.85mm |
|---|---|---|---|
| LED Type: | SMD1415 | Maintenance: | Full Front Access |
| Brightness: | 5000 Nits | Refresh Rate: | 3840Hz |
| Module Material: | Die-casting Aluminum | Control System: | NovaStar |
| Highlight: | P2.85 outdoor LED display module,full front access LED module,die-casting aluminum LED display |
||
Product Description
P2.85 Outdoor Display Module Full Front Access Die-casting Aluminum IP67 5000 nits
Product Description:
P2.85 Outdoor LED Display Module is designed to deliver exceptional visual performance in a variety of outdoor settings. With a pixel pitch of 2.85mm, this module ensures that images are displayed with high clarity and detail, capturing the attention of viewers from a distance.
This model is crafted with a die-casting aluminum cabinet, which is not only lightweight but also provides a high level of durability. The cabinet's design facilitates easy installation and integration into various structures, such as building facades or freestanding frames.
A key feature of this display is its high brightness of 5000 nits, which ensures that the screen remains visible and vivid even under direct sunlight. This is particularly beneficial for outdoor advertising, where the screen needs to compete with bright ambient light.
Features:

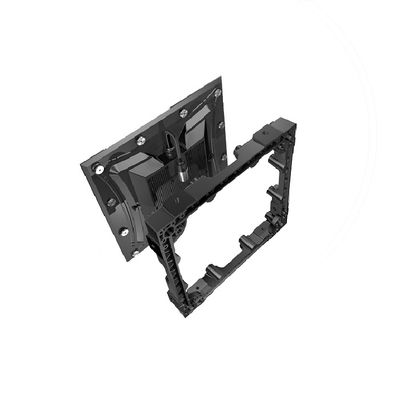

- Diecasting aluminum:Light and durable die-casting aluminum panel makes accurate assembling of corresponding hole position
- Front access:Magnetic led modules strongly connect to the module frame. Safety rope is optional to tighten the connection.
- Power box integration:The power supply, receiving card and hub board are simplied into a small power box. The module can work individually.

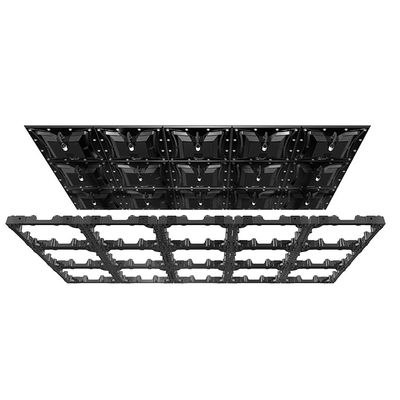

- Curved video wall:The 45° edges modules are compatible with simple customized metal cabinet by magnets, which allows the module to build curved led walls.
- 2-in-1 transmiting cable:Customized 2 in 1 cable allows the led screen to transmit the current and signal simultaneously.
Technical Parameters:
| Technical Parameters | Outdoor LED Display Module |
| Product Model: | SMART BLOCK |
| Pixel Pitch: | 2.85 mm |
| LED Type: | SMD1415 |
| Pixel Density: | 122500 dots/sqm |
| Cabinet Dimension: | 320x320mm |
| Module Resolution: | 112*112 |
| Module Weight: | 1.54 kg |
| Module+Frame Weight: | 2.22 kg |
| Module Material: | Die-casting aluminum |
| Driving Type: | 1/16 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | IP67 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bits |
| Viewing Angle: | H:140°；V:160° |
| Operational Temp: | -30℃~+60℃ |
| Operational Humidity: | 10%~80% RH |
Apllication:
This product can be used for advertising, informational displays, and even as a background for events and performances. With its high brightness and resolution, it can easily attract the attention of passersby and deliver your message effectively.
FAQ:
Q1:Can you give me a discount?
A1:Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.
Q2: Is your company a real manufacturer?
A2: Our company is a professional factory , located in Baoan district, Shenzhen city, China. You are the mostly welcomed to visit our factory anytime.
Q3: How is the quality of the product?
A3: Our products have been strictly tested high quality by QC before shipping to customers.We are adhering to the principle:
"Quality and service are our first priority."
Q4: What pixel pitch should I choose on my display?
A4: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q5: What if I don't know how to maintain the screen?
A5: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
Q6:Can you provide free spare parts?
A6:A certain amount of spare parts will be provided for free, spare parts including module,power cable,signal cable,LED lamp,lC,mask, power supply, receiving card. etc.
