P3.9 Holographic Transparent LED Film Display Ultra Thin 6mm 85% Transparency
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case, flight case |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T,L/C,D/A,D/P |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P3.9 Holographic Transparent LED Film Display Ultra Thin 6mm 85% Transparency | Brightness: | 1000-5000nits |
|---|---|---|---|
| Waterproof: | IP42 | Led Type: | SMD1415 1R1PG1PB UV |
| Driving Method: | Static | Transparent Rate: | 70% |
| Maintenance: | Rear Service | Cabinet Size: | 600/1200/1800x500/600/700/800mm |
| Cabinet Material: | Aluminum+PCB | Panel Weight: | 6 Kg/sqm |
| Highlight: | P3.9 transparent LED film display,ultra thin holographic LED screen,6mm transparent indoor LED display |
||
Product Description

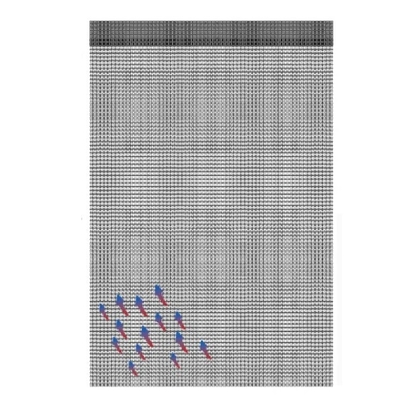

P3.9 Holographic Transparent LED Film Display Ultra Thin 6mm 85% Transparency
P3.9 Indoor Holographic Transparent LED Display is an innovative display solution designed for indoor applications that require a high level of visual engagement without compromising on aesthetics or space. This lightweight display system, weighing only 6kg per square meter, offers a perfect blend of technology and design.
Features

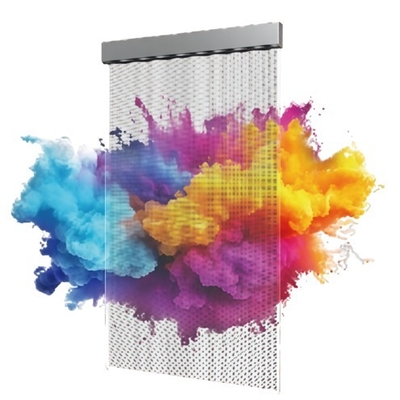

- Transparent: Industry premiere, with no structural backbone; Real fully transparent; Permeability can reach 85%

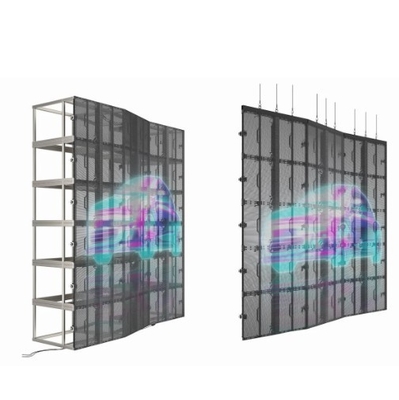

- Thin: Module thickness <6mm; Seamless curved surface mounting; Integrated seamlessly onto glass

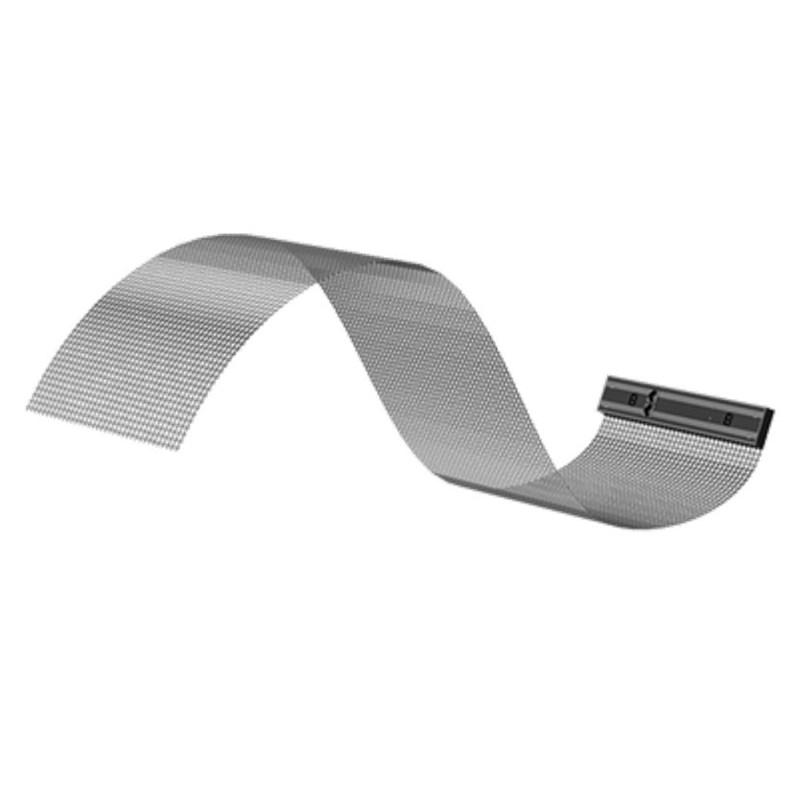

- Foldable and arbitrary transformation shape: Soft and bendable. It can be customized into different shapes according to different scenes, for example, triangles, ellipses, etc.
Technical Parameters
| Parameter | Specification 1 | Specification 2 |
|---|---|---|
| Pixel Pitch (H/V) | W:3.9; H:3.9mm | W:6.25; H:6.25mm |
| Module Size | 250x1000/250x1200/250x1500mm | |
| LED Configuration | SMD1415 1R1PG1PB UV | |
| Pixel Density | 65536dot/㎡ | 25600dot/㎡ |
| Transparency | 80% | 85% |
| Material | Case Aluminum+PCB 1.8mm | |
| Maintenance | Rear | |
| Driving Type | Static | |
| Control Method | Synchronous/Asynchronous | |
| Viewing Distance | > 4m | > 6m |
| Cabinet Weight | 6kg/㎡ | |
| IP Rating (front/back) | IP20 | |
| Brightness | 2000-3000 nits | |
| Viewing Angle (H/V) | H:160°; V:160° | |
| Refresh Rate | 3840 Hz | |
| Gray Scale | 16 bit | |
| Max/Avg Power | 800/280 W/m² | |
| Environment | indoor | |
| Operational Temp | -20℃~+60℃ | |
| Operational Humidity | 10%~90% RH | |
| Operating Life | 100,000hours | |
Applications
- Retail Displays: Enhance product showcases with dynamic holographic displays that capture the attention of shoppers and provide an immersive shopping experience.
- Galleries and Exhibitions: Provide a unique viewing experience for art and exhibits, allowing visitors to see the artwork in a new light.
- Corporate Settings: Use in conference rooms and lobbies for impactful presentations and informational displays that leave a lasting impression.
- Entertainment Venues: Create immersive environments in theaters, clubs, and other entertainment spaces, adding depth and excitement to the atmosphere.
Frequently Asked Questions
Q1: Can you give me a discount?
A1: Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.
Q2: Is your company a real manufacturer?
A2: Our company is a professional factory, located in Baoan district, Shenzhen city, China. You are the mostly welcomed to visit our factory anytime.
Q3: How is the quality of the product?
A3: Our products have been strictly tested high quality by QC before shipping to customers. We are adhering to the principle: "Quality and service are our first priority."
Q4: What pixel pitch should I choose on my display?
A4: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q5: What if I don't know how to maintain the screen?
A5: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
Q6: Can you provide free spare parts?
A6: A certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
