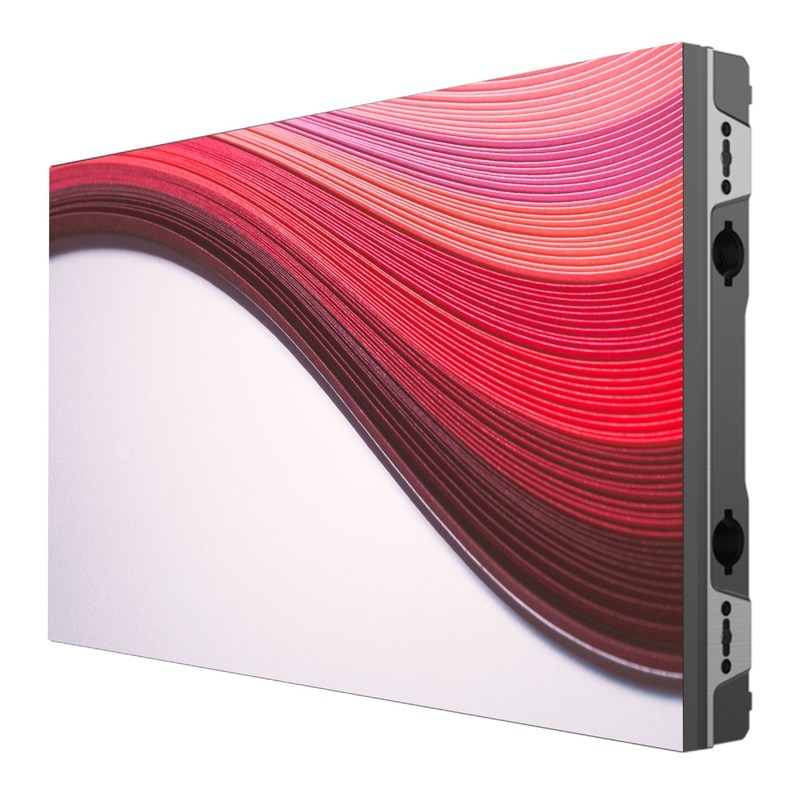

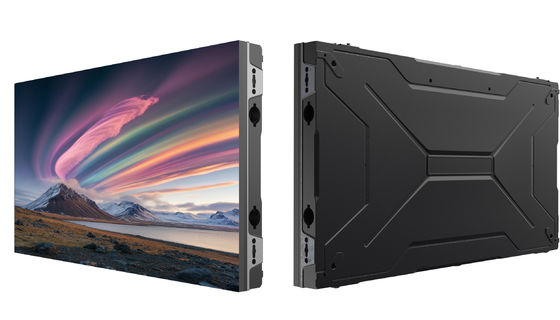

P1.875 Fine Pixel Pitch Outdoor LED Display Independent Modular Design For Studio
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | CE,FCC,ROHS |
| Model Number: | P1.875 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.875 Fine Pixel Pitch Outdoor LED Display Independent Modular Design For Studio | Pixel Pitch: | 1.875mm |
|---|---|---|---|
| Weight(kg/pc): | 6 | Brightness: | 4500nits |
| Module Size: | 150×337.5mm | Cabinet Size: | 600x337.5×50mm |
| Protection Grade: | IP65 | Cabinet Material: | Aluminum Alloy |
| Highlight: | P1.875 outdoor LED display,modular fine pixel pitch LED,studio LED display with warranty |
||
Product Description
P1.875 Fine Pixel Pitch Outdoor LED Display Independent Modular Design For Studio
Product Description
Introducing our advanced Small Pixel Pitch Display - engineered to transform visual experiences through superior performance, energy efficiency, and seamless ultra-HD visuals. Designed for high-impact applications, it excels in premium digital signage, control room environments, and immersive VR/XR simulations.
Key Features
- Independent module design for easy installation and removal
- No maintenance access required for outdoor installation

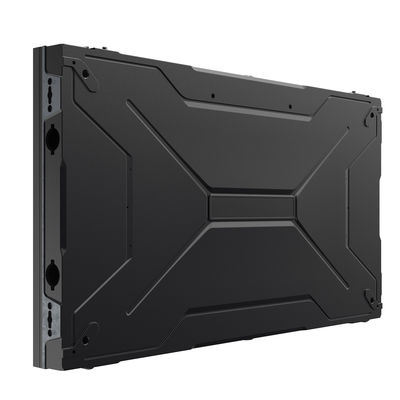

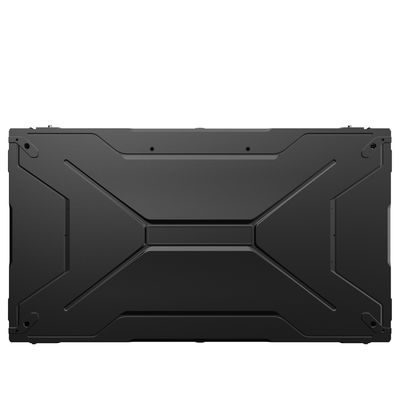

- Die-casting cabinet ensures structural stability and excellent heat dissipation
- Front service installation reduces reliance on human resources and controls costs
- High refresh rate (3840Hz+) eliminates screen tearing and shadow dragging
- Precise synchronization for high-speed shutter shooting and live events
Technical Specifications
| Parameter | Value |
|---|---|
| Pixel Pitch (mm) | 1.875 |
| Module Size (mm) | 150 x 337.5 |
| Module Resolution (dot) | 80 x 180 |
| Module Assembly | 4 x 1 |
| Panel Size (w x h x d) (mm) | 600 x 337.5 x 50 |
| Panel Resolution (dot) | 320 x 180 |
| LED Type | SMD1415 |
| Brightness (cd/m²) | 4500 |
| Viewing Angle (Horizontal/Vertical) | 140° / 140° |
| Gray Level | 16384 |
| Refresh Rate (Hz) | 3840Hz |
| Power Consumption (Max/Avg) | 700W/m² / 350W/m² |
| Voltage | AC100~240 50/60HZ |
| Operating Temperature | -30℃~+50℃ |
| Storage Temperature | -40℃~80℃ |
| Operating Humidity | 10~95% RH |
| Protection Grade | IP65 |
| Cabinet Material | Aluminum alloy |
| LED Lifetime | 100,000 hours |
| Weight (kg/pc) | 6 |
Applications
- Digital Signage systems
- Chain stores
- Street furniture
- Billboards
- Football stadiums
- Perimeter LED posters
- Arena displays
Packing and Shipping
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping methods: Air; Express; Ocean; Land Transportation
Delivery time: 10-15 working days after payment confirmation
Frequently Asked Questions
Q1: Can you provide customized services?
A1: Yes, we can design different categories of products according to your demand.
Q2: Is it OK to print our logo on the LED screen product?
A2: Yes, we can print your logo according to your request.
Q3: Can I order a sample for the LED display screen?
A3: Yes, we welcome you to order a sample to test and check quality. You can choose any item that you want.
Q4: Do you have any MOQ limit for LED display order?
A4: Low MOQ, 1 square meter or a module checking is available.
Q5: Do you offer a guarantee for the products?
A5: Yes, we offer 2 years warranty on our products.
Q6: To order a display, what kind of information do I have to offer you?
A6: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then we can provide you with a detailed quotation.
