P1.25 Flexible LED Display Modules 240*120mm Iron With Painting Curved 110°-180°
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.25 Flexible LED Display Modules 240*120mm Iron With Painting Curved 110°-180° | Pixel Pitch: | P1.25,P1.579,P1.667,P1.875,P2,P2.5,P3,P4 |
|---|---|---|---|
| Module Size: | 240*120mm | Curved Angle: | 110°-180° |
| Cabinet Material: | Steel Cabinet With Painting | Module Weight: | 0.2kg |
| Brightness: | 600-1000 Nits | Maintenance: | Magnets Front Service |
| Highlight: | P1.25 flexible LED display modules,240x120mm iron LED display,curved flexible LED screen 110°-180° |
||
Product Description
P1.25 Flexible LED Display Modules 240*120mm Iron With Painting Curved 110°-180°
The P1.25 Flexible LED Display Screen features a unique design with stable, advanced functionality. Its high flexibility and superior HD performance make it a better choice for outdoor LED displays compared to traditional models.
Features

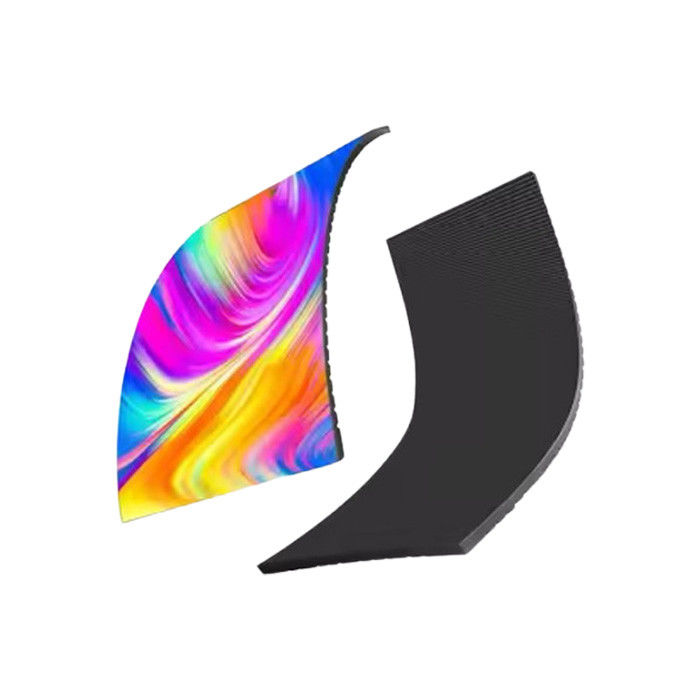

- Flexible Design - Soft PCB allows bending for versatile installations.

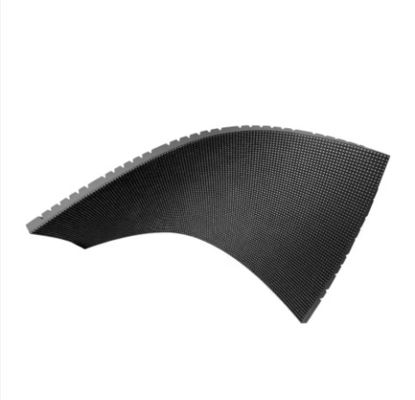

- Curved Display - Supports angles from 110° to 180°, both inner and outer curves.
- Multiple Shapes - Adapts to round, convex, concave, S-shaped, and other irregular designs.

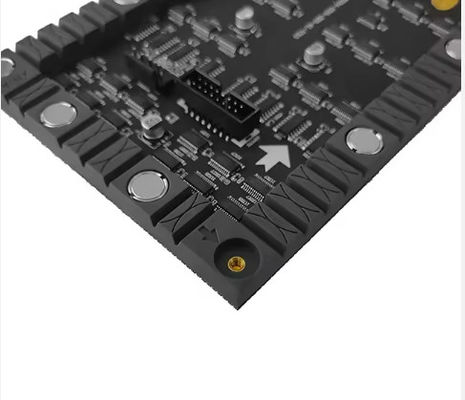

- Magnetic Front Service - Easy front maintenance with magnetic modules; optional safety rope for secure high-position installations.
Technical Parameters
| Product Model: | P1.25 |
|---|---|
| Pixel Pitch: | 1.25 mm |
| LED Type: | SMD1010 |
| Module Resolution: | 192*96 pixels |
| Module Size: | 240*120mm |
| Module Weight: | 0.215 kg |
| Cabinet Material: | Iron with painting |
| Driving Type: | 1/48 |
| Brightness: | 600-1000 nits |
| Max Power: | 19 w/pcs |
| Maintenance: | Front & Rear service |
| Environment: | Indoor Use |
| IP Rating: | F: IP20, R: IP20 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting / Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Application
- Creative Designs - Adaptable for unique shapes (cubes, spheres, ribbons) and customizable angles.
- Outdoor Advertising - Scalable, durable, excellent heat dissipation, long lifespan, low maintenance.
- 360° Displays - Ultra-thin, lightweight, bendable up to 180°, versatile shapes (cylinders, ribbons).
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
We are a professional OEM/ODM manufacturer, which has specialized in the LED display industry for more than 10 years.
Q2: How to install?
- Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging.
- Technical support: Provide technical consultation and guidance to help users solve problems encountered during use.
- Remote collaboration: Specialized after-sales department online remote operation to ensure the normal use of the screen.
- Technical support: Provide technical consultation and guidance to help users solve problems encountered during use.
- Remote collaboration: Specialized after-sales department online remote operation to ensure the normal use of the screen.
Q3: What about your quality?
- The lamp beads used in our LED display are all genuine lamp beads. We do not need to be used scattered lights and tail lights.
- Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
- Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q4: What about the warranty?
- Calculated from the goods to the customer, the warranty period is 3 years, don't worry, there is a problem with the module, you can send it back to us for repair.
Q5: What's your after-sale service?
- If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
Q6: Can the product system be customized with models?
- Yes, support customization.
