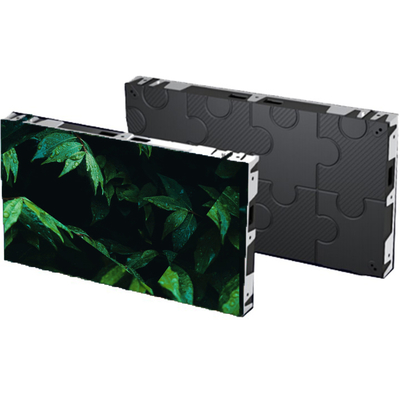

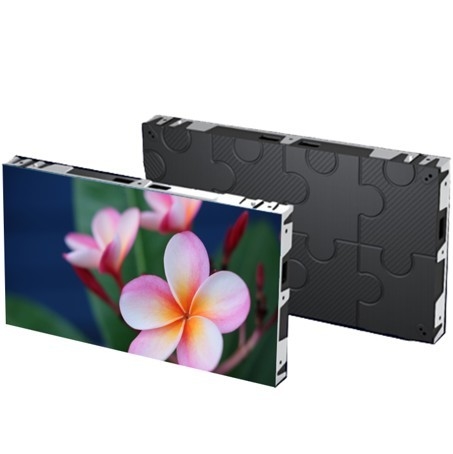

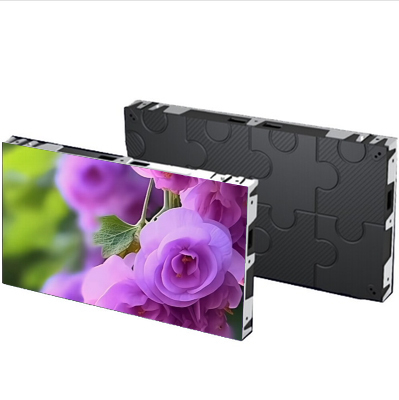

P1.875 COB Small Pixel Pitch LED Display SMD1515 Front service For Indoor
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | FP1.875 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.875 COB Small Pixel Pitch LED Display SMD1515 Front Service For Indoor | Pixel Pitch: | 1.875mm |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Cabinet Size: | 600×337.5×58 Mm |
| Driving Type: | 1/45 | Brightness: | 600 Nits |
| Cabinet Weight:: | 5.5kg | IP Rating: | F: IP30, R: IP45 |
| Highlight: | P1.875 COB LED display,SMD1515 indoor LED screen,front service fine pixel display |
||
Product Description
P1.875 COB Small Pixel Pitch LED Display SMD1515 Front service For Indoor
Product Description:
The P1.875 COB Small Pixel Pitch LED Display excels in delivering exceptional visual performance with ultra-fine detail and vibrant color reproduction. Its optimized 16:9 aspect ratio ensures broad viewing angles and comfortable immersion for diverse audiences. The integrated control system simplifies operation, while the full front-access maintenance design enables effortless servicing—maintaining peak display performance with minimal downtime.
Features:
- The full flip-chip COB process includes protection technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance, preventing LED screens from blinding or experiencing failures due to dampness in high-humidity and salt-spray conditions.
- The module features 3D ink printing technology, enhancing contrast by 20% and lowering display brightness requirements. It supports an LCD status display panel for intuitive real-time monitoring of cabinet operations.
- The module's PCB utilizes an HDI multi-layer circuit board design, ensuring good color uniformity and even temperature distribution.
- The entire series incorporates Sunrise's energy-efficient common cathode chip, delivering higher performance with grayscale levels up to 16-bit.
Technical Parameters:
| Product Model | FP0.9375 | FP1.25 | FP1.5625 | FP1.875 |
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
| LED Type | 4 in 1 LED | SMD1212 | SMD1212 | SMD1515 |
| Cabinet Dimension: | 600x337.5x58 mm | |||
| Module Size: | 300x168.75 mm | |||
| Cabinet Weight: | 5.5 kg | |||
| Cabinet Material: | Die-casting Aluminum | |||
| Driving Type: | 1/46 | 1/45 | 1/48 | 1/45 |
| Brightness: | 400 nits | 600 nits | ||
| Max/Avg Power: | 450/135 W/m² | |||
| Maintenance: | Front service | |||
| Environment: | Indoor Use | |||
| IP Rating: | F: IP30, R: IP45 | |||
| Refresh Rate: | >3840 Hz | |||
| Installation Type: | Mounting/Hanging | |||
| Gray Scale: | 14 bit | |||
| Viewing Angle: | H:140°; V:140° | |||
| Operational Temp: | -20℃~+50℃ | |||
| Operational Humidity: | 10%~90% RH | |||
Applications:
- Digital Signage system
- Chain store
- Billboard
- Perimeter LED poster
- Arena display, etc.
Support and Service:
Full-service support throughout the process.
Pre-sales: we offer detailed production instructions and professional installation guidance.
Sales: we provide customized solutions, visual designs, and project showcases.
After-sales: Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, logistics tracking, and continuous software improvement.
FAQ:
Q1: Can you accept some sample orders?
A1: Yes, the sample order is acceptable for quality check and market test.
Q2: What LED screen size you can do?
A2: Screen size can be customized based on your demand.
Q3: Does there have any warranty?
A4: A two-year warranty for all products.
Q4: How to guarantee product quality?
A4: We prioritize quality at every stage of production. Our rigorous quality control processes include stringent component selection, advanced manufacturing techniques, and comprehensive testing. Before shipment, each LED floor display undergoes a meticulous final inspection to ensure it meets our exacting standards.
Q5: How fast can you provide after-sale technical support after encountering product problems?
A5: We promise to provide professional after-sale technical support within 24 hours after receiving the customer's notice.
