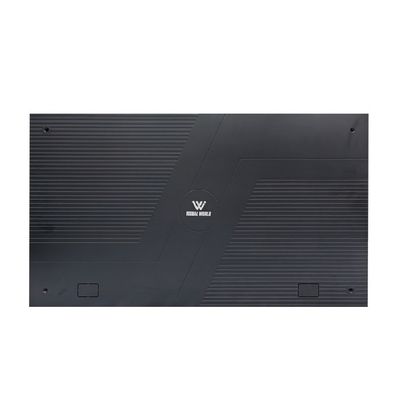

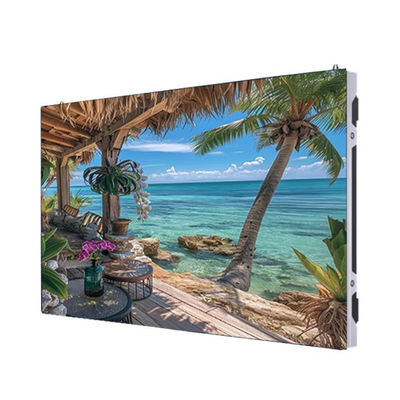

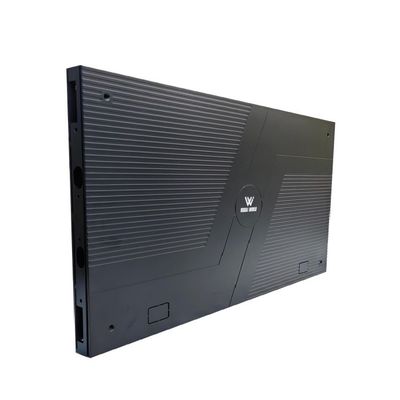

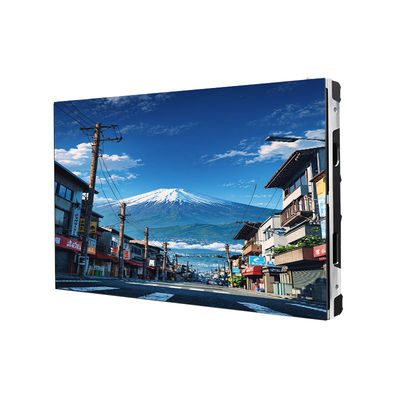

P1.25 Fine Pixel Pitch LED Display COB Die-casting Aluminum For Retail Store
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Fine Pixel Pitch LED Display COB Die-casting Aluminum For Retail Store | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aluminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | P1.25 COB LED display,die-cast aluminum LED screen,retail store LED display |
||
Product Description
P1.25 Fine Pixel Pitch LED Display COB Die-casting Aluminum For Retail Store
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Features
- Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | Flip-COB (common cathode) | |||
| Cabinet Dimension (mm) | 600*337.5*29.5 | |||
| Cabinet Resolution | 768*432 | 640*360 | 480*270 | 384*216 |
| Module Size(mm) | 150x168.75 | |||
| Cabinet Weight | 4kg | |||
| Cabinet Material | Die-casting Aluminum | |||
| Driving Type | 1/36 | 1/54 or 1/36 | 1/60 or 1/27 | 1/48 |
| Maintenance | Front service | |||
| Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
| Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
| Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
| IP Rating | Front: IP54 Rear: IP30 | |||
| Refresh Rate | >3840Hz | |||
| Installation Type | Mounting/Hanging/Stacking | |||
| Gray Scale | 16bit | |||
| Viewing Angle | H:170°V:170° | |||
| Operational Temp | -20℃~+50℃ | |||
| Operational Humidity | 10%-90%RH | |||
Applications
Advertising publish
Retail store
Shopping mall
Home cinema
Welcome display
Self-service business
Exhibition hall
Airport
Subway
Elevator
Restaurant & hotel supplies
Education
Medical treatment
FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A1: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display. Pixel pitch is smaller, led display resolution is higher.
Q2: What pixel pitch should I choose on my display?
A2: It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display, what kind of information do I have to offer you?
A3: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Q4: How to install?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5: Can I order a sample?
A5: Yes, We welcome customers to order samples to check our product quality of our products and service.
Want to Know more details about this product
