P1.56 Flip-COB Small Pixel Pitch LED Display With 4kg Cabinet 600*337.5mm
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.56 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.56 Flip-COB Small Pixel Pitch LED Display With 4kg Cabinet 600*337.5mm | Pixel Pitch: | 1.56mm |
|---|---|---|---|
| Refresh Rate: | >3840Hz Or >7680Hz | Cabinet Size: | 600×337.5×29.5mm |
| Maintenance: | Front Service | IP Rating: | Front: IP54 Rear: IP30 |
| Cabinet Weight: | 4kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | P1.56 Flip-COB LED display,small pixel pitch LED screen with 4kg cabinet,600x337.5mm fine pixel pitch display |
||
Product Description

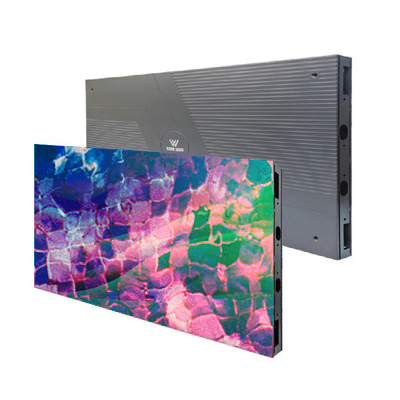

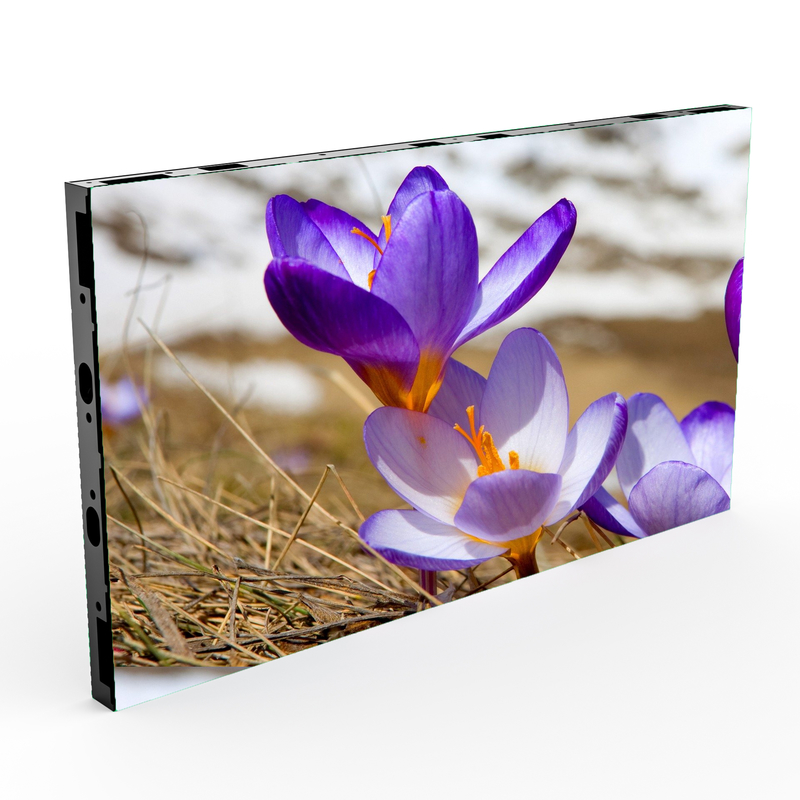

P1.56 Flip-COB Small Pixel Pitch LED Display With 4kg Cabinet 600*337.5mm
The P1.56 Flip-COB Small Pixel Pitch LED Display utilizes advanced full flip-chip COB technology to deliver a slim, lightweight, and ultra-thin structure. Its 16:9 aspect ratio ensures effortless compatibility with varied content formats, while front-access maintenance streamlines servicing. An optimized thermal management system extends product longevity, and integrated signal and power redundancy ensures continuous operation—establishing it as the ideal choice for high-performance display applications.
Key Features
- Full flip-chip COB process with advanced protective technologies including anti-collision, waterproofing, moisture resistance, and salt-spray protection
- 3D ink printing technology enhances contrast by 20% and reduces brightness requirements for optimal display performance
- Built-in LCD status display panel provides real-time insights into cabinet operational status
- HDI multi-layer PCB circuit structure ensures uniform color representation and stable temperature management
- Energy-efficient common cathode chips deliver exceptional grayscale performance up to 16 bits
Technical Specifications
| Model | P1.56 |
| Pixel Pitch | 1.56mm |
| LED Type | Flip-COB (common cathode) |
| Cabinet Dimension | 600*337.5*29.5mm |
| Cabinet Resolution | 384*216 |
| Module Size | 150x168.75mm |
| Cabinet Weight | 4kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type | 1/48 |
| Maintenance | Front service |
| Brightness | 600/1000 nits |
| Max Power | 330W/m² |
| Avg Power | 100W/m² |
| IP Rating | Front: IP54 Rear: IP30 |
| Refresh Rate | >3840Hz or >7680Hz |
| Installation Type | Mounting/Hanging/Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170° V:170° |
| Operational Temperature | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications
- Digital Signage Systems: Ideal for malls, airports, stations, and offices, offering vibrant, high-brightness displays for dynamic ads and information, ensuring visibility in bright settings
- Football Stadiums: Delivers high-resolution replays, scores, and ads with reliable performance and efficient heat dissipation for long events
- Perimeter LED Posters: Perfect for sports fields and event venues, providing dynamic ads and info with easy installation and maintenance
- Arena Displays: Designed for concert halls, convention centers, and arenas, offering vivid visuals with high contrast for live events, promotions, and announcements
Service and Support
- Pre-Sale Services: 24-hour response to inquiries, market research and customized solutions, datasheets, samples, custom packing, and factory visits
- In-Sale Process: Production monitoring, photos/videos upon request, free spare parts included
- After-Sales Support: 24-hour complaint response, maintenance guidance within 48 hours, 24-month warranty, free technician training, and comprehensive documentation
Frequently Asked Questions
Do you offer sample orders?
Yes, we gladly accept sample orders for quality assessment and market evaluation.
Is there a warranty included?
Definitely! All our products are backed by a two-year warranty.
Can I customize the product?
Of course! We provide full customization options, supported by our dedicated product development team to meet your specific requirements.
What is your minimum order quantity (MOQ)?
There is no strict MOQ, and we offer competitive pricing for bulk orders.
Does it support HD video playback?
Yes, it delivers high-definition video playback when used with Novastar or Colorlight control systems.
