P0.7 Flip-COB Small Pixel Pitch LED Display With Cabinet 4kg For Exhibition Hall
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.7 Flip-COB Small Pixel Pitch LED Display With Cabinet 4kg For Exhibition Hall | Pixel Pitch: | 0.78mm |
|---|---|---|---|
| Refresh Rate: | >3840Hz Or >7680Hz | Cabinet Size: | 600×337.5×29.5mm |
| Maintenance: | Front Service | IP Rating: | Front: IP54 Rear: IP30 |
| Cabinet Weight: | 4kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | P0.7 Flip-COB LED display,small pixel pitch LED screen,lightweight LED display cabinet |
||
Product Description

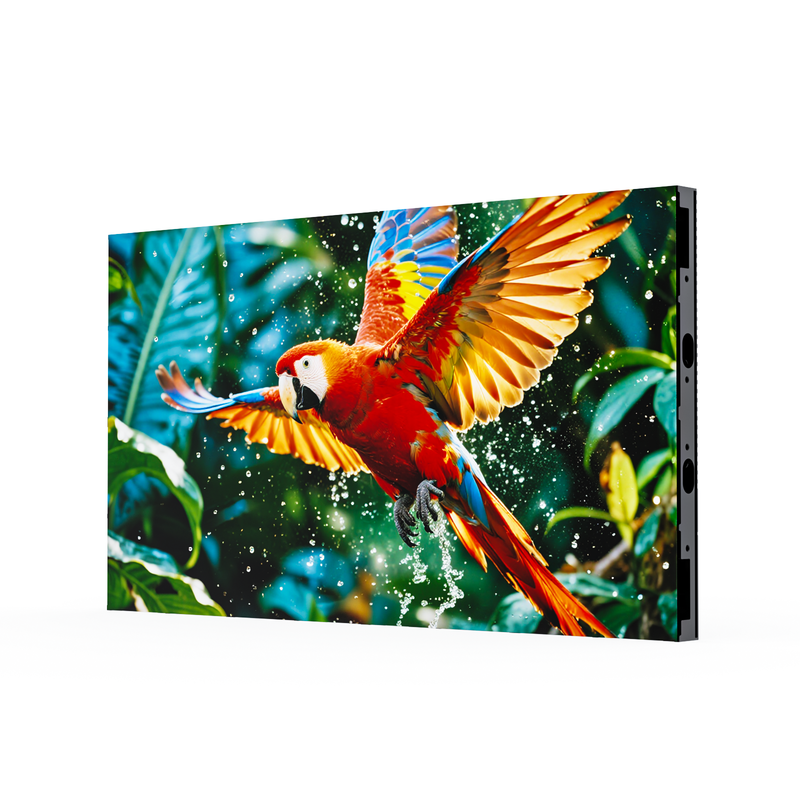

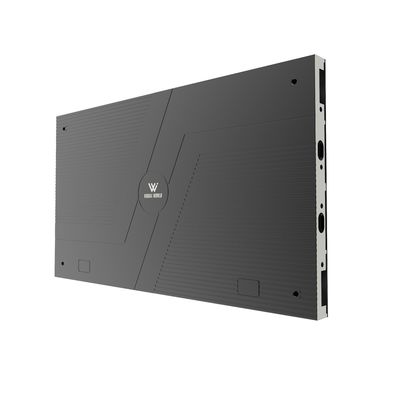

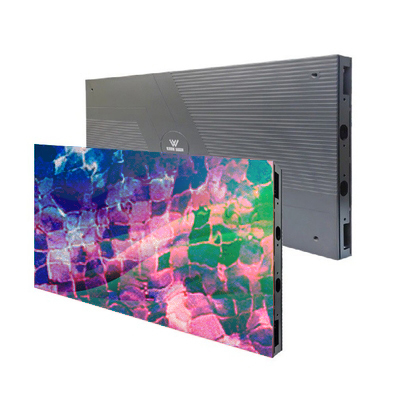

P0.7 Flip-COB Small Pixel Pitch LED Display
The P0.7 Flip-COB Small Pixel Pitch LED Display leverages advanced full flip-chip COB technology to achieve a slim, lightweight, and ultra-thin profile. Its 16:9 aspect ratio ensures seamless compatibility with diverse content formats, while front-access maintenance simplifies servicing. An optimized thermal management system enhances durability, and built-in signal and power redundancy guarantees uninterrupted operation—making it the premier solution for high-performance display environments.
Key Features
- Full flip-chip COB process with anti-collision, waterproofing, moisture resistance, and salt-spray protection
- 3D ink printing technology enhances contrast by 20% and reduces brightness requirements
- Built-in LCD status display panel for real-time operational monitoring
- HDI multi-layer PCB design ensures uniform color and stable temperature management
- Energy-efficient common cathode chips with exceptional 16-bit grayscale performance
Technical Specifications
| Model | P0.7 |
| Pixel Pitch | 0.78mm |
| LED Type | Flip-COB (common cathode) |
| Cabinet Dimension | 600*337.5*29.5mm |
| Cabinet Resolution | 768*432 |
| Module Size | 150x168.75mm |
| Cabinet Weight | 4kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type | 1/36 |
| Maintenance | Front service |
| Brightness | 600/2000 nits |
| Max Power | 390W/m² |
| Avg Power | 136W/m² |
| IP Rating | Front: IP54 Rear: IP30 |
| Refresh Rate | >3840Hz or >7680Hz |
| Installation Type | Mounting/Hanging/Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170° V:170° |
| Operational Temperature | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications
- Digital Signage Systems: Ideal for malls, airports, stations, and offices, offering vibrant, high-brightness displays for dynamic ads and information
- Football Stadiums: Delivers high-resolution replays, scores, and ads with reliable performance and efficient heat dissipation
- Perimeter LED Posters: Perfect for sports fields and event venues, providing dynamic ads and info with easy installation
- Arena Displays: Designed for concert halls, convention centers, and arenas, offering vivid visuals with high contrast
Service and Support
- Pre-Sale Services: 24-hour response, market research, customized solutions, datasheets, samples, and factory visits
- In-Sale Process: Production monitoring, photos/videos upon request, free spare parts included
- After-Sales Support: 24-hour complaint response, maintenance guidance within 48 hours, 24-month warranty, free technician training
Frequently Asked Questions
Do you offer sample orders?
Yes, we gladly accept sample orders for quality assessment and market evaluation.
Is there a warranty included?
Definitely! All our products are backed by a two-year warranty.
Can I customize the product?
Of course! We provide full customization options, supported by our dedicated product development team.
What is your minimum order quantity (MOQ)?
There is no strict MOQ, and we offer competitive pricing for bulk orders.
Does it support HD video playback?
Yes, it delivers high-definition video playback when used with Novastar or Colorlight control systems.
Want to Know more details about this product
