P1.25 Flexible LED Display Screen 240*120mm Curved Angle 110°-180° Creative Designs
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.25 Flexible LED Display Screen 240*120mm Curved Angle 110°-180° Creative Designs | Pixel Pitch: | P1.25,P1.579,P1.667,P1.875,P2,P2.5,P3,P4 |
|---|---|---|---|
| Module Size: | 240*120mm | Curved Angle: | 110°-180° |
| Cabinet Material: | Steel Cabinet With Painting | Module Weight: | 0.2kg |
| Brightness: | 600-1000 Nits | Maintenance: | Magnets Front Service |
| Highlight: | P1.25 flexible LED display screen,240x120mm flexible LED screen,110°-180° curved LED display |
||
Product Description
P1.25 Flexible LED Display Screen 240*120mm Curved Angle 110°-180° Creative Designs
Product Description:
The P1.25 Flexible LED Display Screen features a unique design with stable, advanced functionality. Its high flexibility and superior HD performance make it a better choice for outdoor LED displays compared to traditional models.
Features:
- Flexible Design

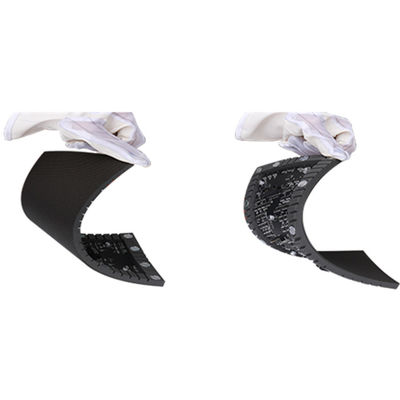

Soft PCB allows bending for versatile installations.
- Curved Display

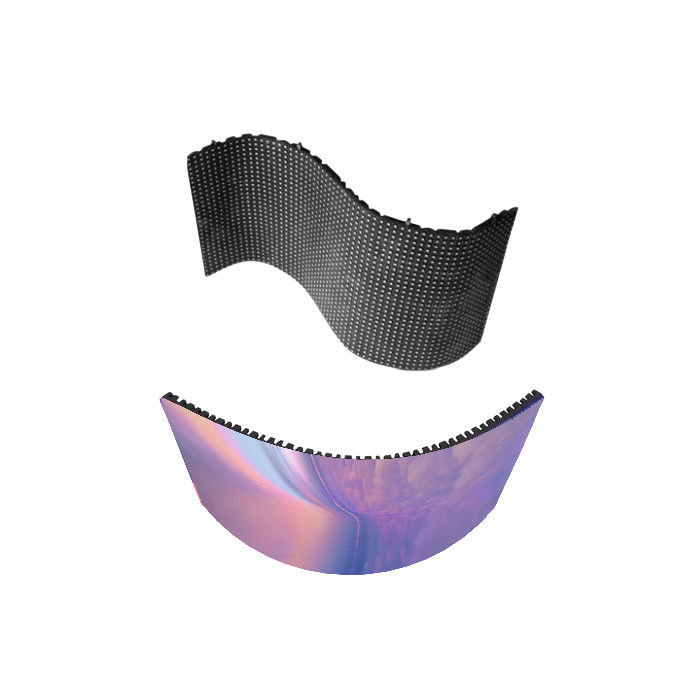

Supports angles from 110° to 180°, both inner and outer curves.
- Multiple Shapes
Adapts to round, convex, concave, S-shaped, and other irregular designs.

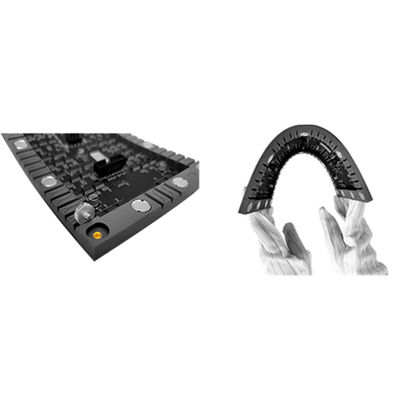

- Magnetic Front Service
Easy front maintenance with magnetic modules; optional safety rope for secure high-position installations.
Technical Parameters:
| Product Model: | P1.25 |
| Pixel Pitch: | 1.25 mm |
| LED Type: | SMD1010 |
| Module Resolution: | 192*96 pixels |
| Module Size: | 240*120mm |
| Module Weight: | 0.215 kg |
| Cabinet Material: | Iron with painting |
| Driving Type: | 1/48 |
| Brightness: | 600-1000 nits |
| Max Power: | 19 w/pcs |
| Maintenance: | Front & Rear service |
| Environment: | Indoor Use |
| IP Rating: | F: IP20, R: IP20 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting / Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Application:
-

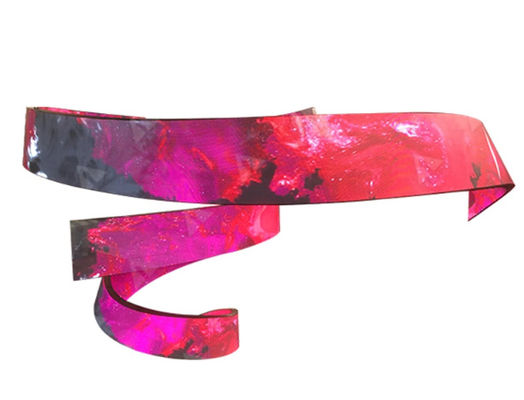

Creative Designs: Adaptable for unique shapes (cubes, spheres, ribbons) and customizable angles.
-
Outdoor Advertising: Scalable, durable, excellent heat dissipation, long lifespan, low maintenance.
-
360° Displays: Ultra-thin, lightweight, bendable up to 180°, versatile shapes (cylinders, ribbons).
FAQ:
A1: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display. Pixel pitch is smaller, led display resolution is higher.
A2: It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
A3: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
A5: Yes, We welcome customers to order samples to check our product quality of our products and service.
