P10.4 Carbon Fiber LED Display SMD3535 Windproof IP65 for Outdoor Use

P10.4 Carbon Fiber LED Display SMD3535 Windproof IP65 for Outdoor Use
Brand Name
VW
Product Model
CFTL10
Certificate
CE, ROHS
Country Of Origin
China
MOQ
Negotiable
Unit Price
Negotiable
Payment Method
T/T
Supply Capacity
3000 sqm/month
Product Details
Highlight:

carbon fiber LED display outdoor

,

P10.4 SMD3535 LED screen

,

windproof IP65 rental display
Product Name: P10.4 Carbon Fiber LED Display SMD3535 Windproof IP65 For Outdoor Use
Pixel Pitch(Mm): 10.4
Module Size: 500×250mm
Screen Size: 500×1000mm
Brightness: 5000nits
Weight: 12kg/sqm
IP Rate: IP65
Refresh Rate: ≥7680Hz
Product Description
Detailed Specifications And Features
P10.4 Carbon Fiber LED Display SMD3535 Windproof IP65 for Outdoor Use
Product Description

This LED screen redefines portability with its ultra-lightweight construction, significantly reducing transportation challenges. Its modular design enables rapid disassembly and reassembly, dramatically improving installation efficiency. The transparent windproof screen, enhanced by a beveled edge design, delivers optimized visual performance while merging aesthetic appeal with functional durability—making it ideal for outdoor advertising, exhibitions, and diverse application scenarios.

Product Features
  • Transparent & Windproof: The hollow design of the LED screen Xaga cleverly utilizes the principle of aerodynamics, enabling the screen to effectively achieve air convection in the outdoor environment, thus greatly reducing the impact of strong winds when used outdoors.

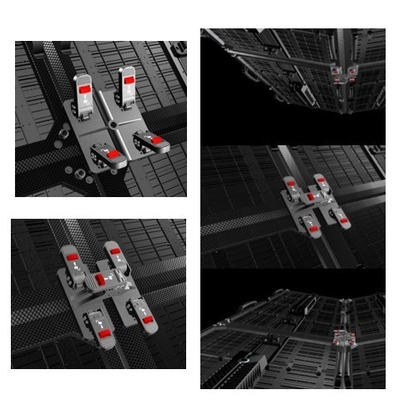

  • Quick Disassembly & Assembly: Xaga features a unique and patented Quick Release Lock technology. This feature simplifies user operation and greatly reduces the time required for assembly and disassembly, making the process both fast and efficient.

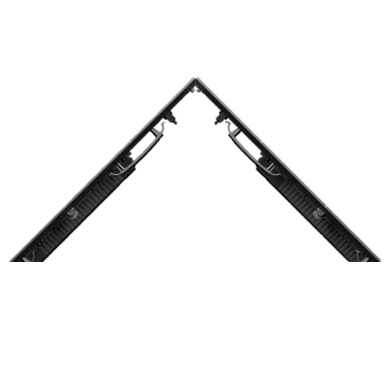

  • Bevel Edge Design: Angled edge design allows for up to 90° curved assembly. This feature allows the screen to be flexibly integrated into a variety of spatial layouts, maintaining a high degree of stability and visual effect.

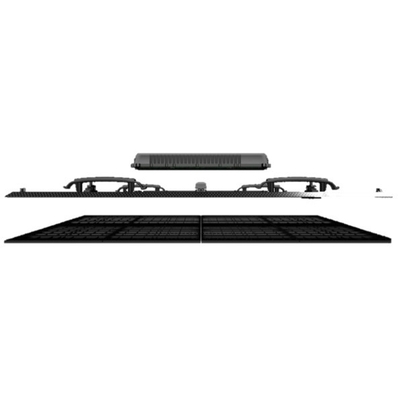

  • Modular Design: Xaga consists of three core components: an independent power box to ensure power stability; a high-strength carbon fiber frame for protection; and integrated LED modules for a simple yet functional design.
Technical Parameters
Product model CFTL10
Pixel pitch(mm) 10.4
Module size(mm) 500x250
Module resolution(dot) 48 x24
Module assembly 1x4
Panel size(mm) 500x1000
Panel resolution(dot) 48 x 96
LED type SMD3535
Brightness(cd/m2) 5000
Contrast ratio  5000:1
Support input Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Horizontal viewing angle 160°
Vertical viewing angle 160°
Gray level(bit) 16
Refresh rate ≥7680Hz
Max. AC power consumption ≤700W/m²
Avg. AC power consumption ≤250W/m²
Input voltage 100-240 VAC,50~60 Hz
Operate temperature -30°C~+50°C
Storage temperature -40~+80°C
Operating humidity 10~90% RH
Protection grade IP65
Working environment Outdoor
Cabinet material Carbon fiber
LED lifetime(hours) 100000
Weight(kg/m²) 12
Product Application
Event Rental
Stage Rental
Game Play Rental

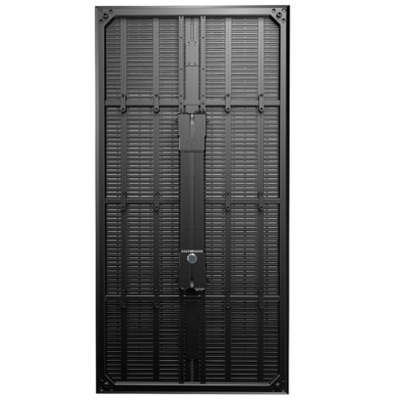

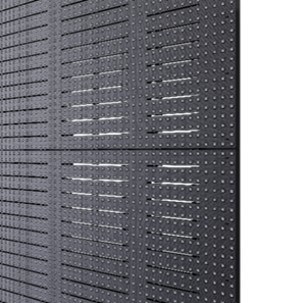

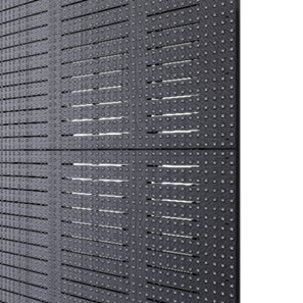

P10.4 Carbon Fiber LED Display showing outdoor installation Close-up view of P10.4 LED Display module P10.4 LED Display in curved configuration P10.4 LED Display showing detailed construction
Q & A
Q1: What is your minimum order quantity (MOQ)?
A1: We accept any order quantity. For larger orders, pricing is negotiable.
Q2: What is your delivery time?
A2: LED display modules typically ship within 3 to 15 days, while full LED displays are delivered within 10 to 25 days after receiving the deposit. The exact delivery timeline depends on the type and size of your order.
Q3: Do your products come with free spare parts?
A3: Yes, for LED modules, we provide spare lamps and ICs. For full LED displays, we include spare lamps, ICs, modules, power supplies, and more.
Q4: Do your products come with a warranty?
A4: Yes, we offer a two-year warranty on all products.
Q5: Can your products be customized?
A5: Absolutely! We offer customization options tailored to your specific requirements, including size, shape, and features. Additionally, we can customize the LED display with your logo.
