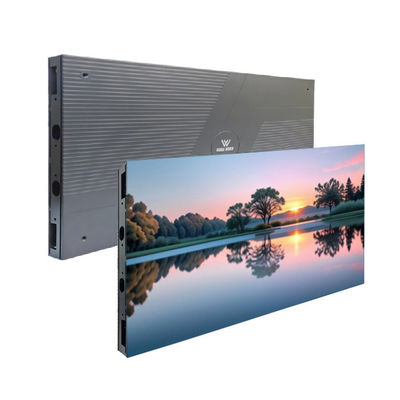

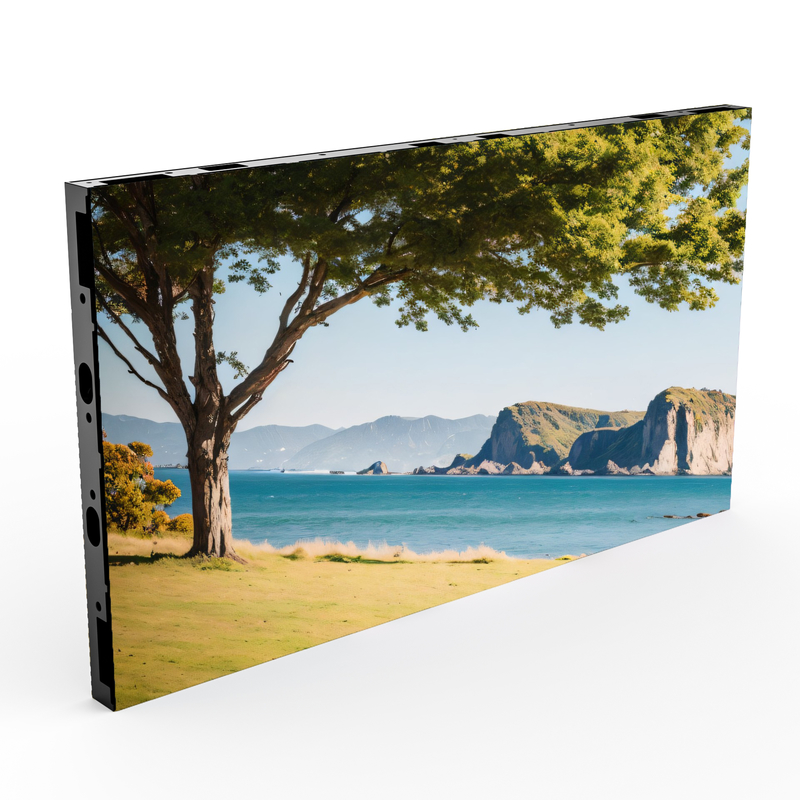

P1.25 Flip-COB Small Pixel Pitch LED Display With Die-casting Aluminum Cabinet
P1.25 Flip-COB Small Pixel Pitch LED Display With Die-casting Aluminum Cabinet
Brand Name
Visual World
Product Model
P1.25
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:
P1.25 flip-COB LED display
,small pixel pitch LED screen
,die-casting aluminum cabinet LED display
Product Name:
P1.25 Flip-COB Small Pixel Pitch LED Display With Die-casting Aluminum Cabinet
Pixel Pitch:
1.25mm
Refresh Rate:
>3840Hz Or >7680Hz
Cabinet Size:
600×337.5×29.5mm
Maintenance:
Front Service
IP Rating:
Front: IP54 Rear: IP30
Cabinet Weight:
4kg
Installation Type:
Mounting/Hanging/Stacking
Product Description
Detailed Specifications And Features
P1.25 Flip-COB Small Pixel Pitch LED Display With Die-casting Aluminum Cabinet
The P1.25 COB Small Pixel Pitch LED Display excels with its advanced full flip-chip COB technology, achieving a slim, lightweight, and ultra-thin profile. Its 16:9 aspect ratio ensures seamless compatibility with diverse content formats, while front-access maintenance simplifies servicing. An optimized thermal management system enhances durability, and built-in signal and power redundancy guarantees uninterrupted operation—making it the premier solution for high-performance display environments.
Key Features
- The full flip-chip COB process integrates advanced protective technologies, including anti-collision, waterproofing, moisture resistance, and salt-spray protection
- The module incorporates 3D ink printing technology, enhancing contrast by 20% and reducing brightness requirements for optimal display performance
- A built-in LCD status display panel provides real-time insights into the cabinet's operational status, ensuring efficient monitoring and maintenance
- The PCB design features an HDI multi-layer circuit structure, guaranteeing uniform color representation and stable temperature management
- This series leverages Sunrise's energy-efficient common cathode chips, delivering exceptional grayscale performance with levels of up to 16 bits
Technical Specifications
| Parameter | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | Flip-COB (common cathode) | |||
| Cabinet Dimension (mm) | 600×337.5×29.5 | |||
| Cabinet Resolution | 768×432 | 640×360 | 480×270 | 384×216 |
| Module Size (mm) | 150×168.75 | |||
| Cabinet Weight | 4kg | |||
| Cabinet Material | Die-casting Aluminum | |||
| Driving Type | 1/36 | 1/36 or 1/54 | 1/27 or 1/60 | 1/48 |
| Maintenance | Front service | |||
| Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
| Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
| Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
| IP Rating | Front: IP54 Rear: IP30 | |||
| Refresh Rate | >3840Hz or >7680Hz | |||
| Installation Type | Mounting/Hanging/Stacking | |||
| Gray Scale | 16bit | |||
| Viewing Angle | H:170° V:170° | |||
| Operational Temp | -20℃ to +50℃ | |||
| Operational Humidity | 10%-90%RH | |||
Applications
- Digital Signage Systems: Ideal for malls, airports, stations, and offices, offering vibrant, high-brightness displays for dynamic ads and information, ensuring visibility in bright settings
- Football Stadiums: Delivers high-resolution replays, scores, and ads with reliable performance and efficient heat dissipation for long events
- Perimeter LED Posters: Perfect for sports fields and event venues, providing dynamic ads and info with easy installation and maintenance
- Arena Displays: Designed for concert halls, convention centers, and arenas, offering vivid visuals with high contrast for live events, promotions, and announcements
Service and Support
- Pre-Sale Services: 24-hour response to inquiries, market research and customized solutions, datasheets, samples, custom packing, and factory visits
- In-Sale Process: Production monitoring, photos/videos upon request, free spare parts included
- After-Sales Support: 24-hour complaint response, maintenance guidance within 48 hours, 24-month warranty, free technician training, and comprehensive documentation
Frequently Asked Questions
Do you offer sample orders?
Yes, we gladly accept sample orders for quality assessment and market evaluation.
Is there a warranty included?
Definitely! All our products are backed by a two-year warranty.
Can I customize the product?
Of course! We provide full customization options, supported by our dedicated product development team to meet your specific requirements.
What is your minimum order quantity (MOQ)?
There is no strict MOQ, and we offer competitive pricing for bulk orders.
Does it support HD video playback?
Yes, it delivers high-definition video playback when used with Novastar or Colorlight control systems.
