P8 Adhesive Transparent LED Display 3mm Thickness Transparency 70% 1000*240mm
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC,FCC |
| Model Number: | TP8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Export carton box, Plywood case |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P8 Adhesive Transparent LED Display 3mm Thickness Transparency 70% 1000*240mm | Pixel Pitch: | P6/P8/P10 |
|---|---|---|---|
| Brightness: | 1500-3000nits | Module Size: | 1000*240mm |
| Thickness: | 3mm | Transparency: | 65%/70%/80% |
| IP Rating: | IP43 | Weight: | 3.5kg |
| Highlight: | P8 adhesive transparent LED screen,3mm thin transparent LED display,70% transparency LED display panel |
||
Product Description
P8 Adhesive Transparent LED Display 3mm Thickness Transparency 70% 1000*240mm
Product Specifications
| Product Name | P8 Adhesive Transparent LED Display 3mm Thickness Transparency 70% 1000*240mm |
| Pixel Pitch | P6/P8/P10 |
| Brightness | 1500-3000nits |
| Module size | 1000*240mm |
| Thickness | 3mm |
| Transparency | 65%/70%/80% |
| IP Rating | IP43 |
| Weight | 3.5kg |

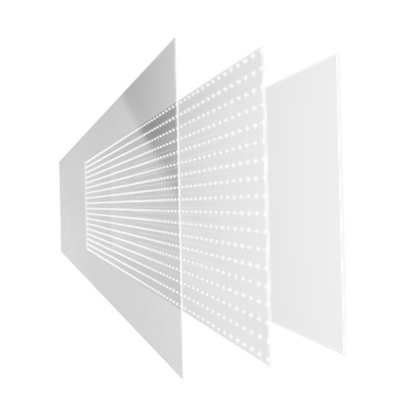

Product Overview
The P8 adhesive transparent LED display is paper-thin and lightweight, seamlessly adhering to curved surfaces like a sticker. The flexible substrate can be freely bent to fit the shaped space. Subvert the traditional installation mode, which can be quickly completed without bracket deployment, for architectural curtain walls, and window displays offer an invisible display technology.
Key Features
- Adhesive film LED display for glass applications
- Lightweight at 3.5 kg per panel
- Easy and quick to install
- High brightness options of 1500-3000 nits
Product Features

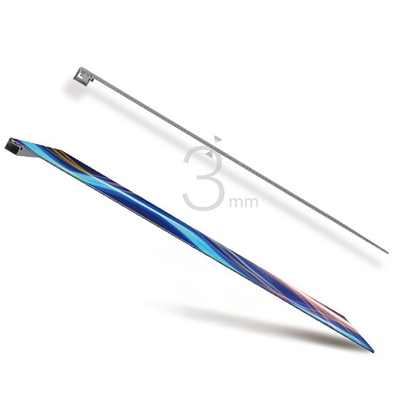

- Ultra thin: 3mm thickness makes it the thinnest LED display in the market.
- Flexible: Bendable adhesive film LED panel, can fit on curved glass wall.
- High transparency: Transparent film makes it up to 70% transparency rate. Best choice for store window glass.
- UV Resistance: Anti-UV material to avoid becoming yellowish.
- Clipping size: The film panel is cuttable to meet different installation conditions such as irregular glass.
Technical Parameters
| Product Model | TP6 | TP8 | TP10 |
|---|---|---|---|
| Pixel Pitch | 6*6mm | 8*8mm | 10*10mm |
| LED Type | SMD2121 | ||
| Module Dimension(mm) | 1000*240*3mm | ||
| Weight | 3.5kg/panel | ||
| Brightness | 1500-3000nits | ||
| Transparency | 65% | 70% | 80% |
| Max/Avg Power(m²) | 800/280w/m² | ||
| IP Rating | IP43 | ||
Applications
- Building glass facade
- Shopping center glass wall
- Store window glass
- Brand flagship store
- Glass hall and corridor
Frequently Asked Questions
Q1: Are you a manufacturer or trade company?
A1: We are a professional OEM/ODM manufacturer with more than 10 years of professional experience in the LED display screen industry.
Q2: What can I get from you?
A2: LED module, LED display screen, LED display screen series products.
Q3: How about your warranty period?
A3: 1-3 years warranty structure design, installation issues, programming screens.
Q4: How to use LED screens?
A4: We have a complete technical team, with a dedicated technical engineer and sales manager assigned to each customer. From pre-sales to during-sales and after-sales, we provide 24/7 service to ensure that you can operate your LED display proficiently in the shortest time possible.
Q5: What other services can you provide for LED displays?
A5: As our customer, you will have a dedicated technical engineer and sales manager who will visit you offline 1 to 3 times per year, providing offline maintenance and guidance on the latest technologies for your products.
Want to Know more details about this product
