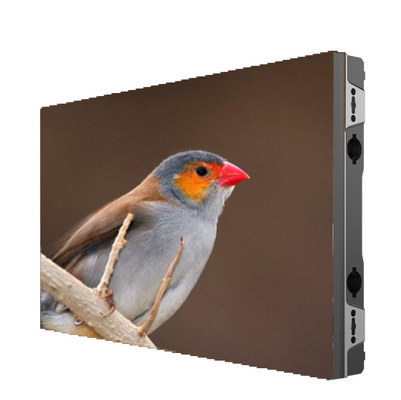

P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
P2.5 outdoor LED display
,small pixel pitch LED screen
,IP65 commercial advertising display
P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
Product Description:
Introducing our advanced Small Pixel Pitch Display — engineered to transform visual experiences through superior performance, energy efficiency, and seamless ultra-HD clarity. Designed for high-impact applications, it excels in premium digital signage, control room environments, and immersive VR/XR simulations.
Features:
- The independent module design is easy to install and remove.
- No need to reserve maintenance access for outdoor installation.

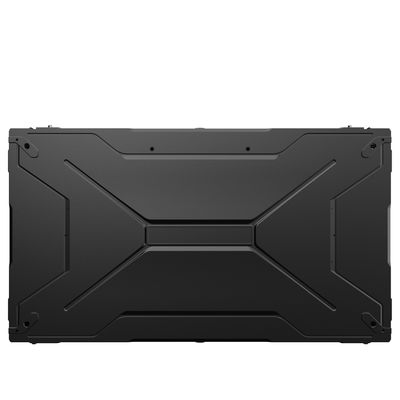

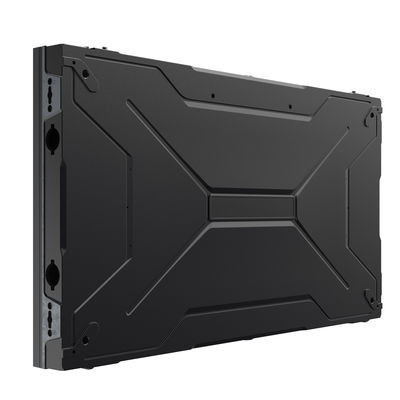

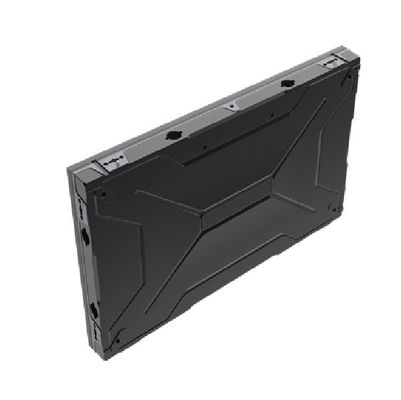

- OFP adopts a die-casting cabinet, which not only ensures the stability of the product structure, but also ensures its excellent heat dissipation performance, preventing the internal components from overheating, thus prolonging the service life of the LED display and keeping it in the best working condition.
- OFP supports front service installation and is designed to reduce its reliance on human resources while controlling overall costs.
- The refresh rate is as high as 3840Hz or more, dynamically eliminating screen tearing and shadow dragging; precise synchronization of high-speed shutter shooting, live events and other high-speed sports scenes show no shadow residual image.
Technical Parameters:
| Pixel Pitch(mm) | 2.5 |
| Module Size(mm) | 300 x 337.5 |
| Module Resolution(dot) | 120 x 135 |
| Module Assembly | 2 x 1 |
| Panel Size(w x h x d)(mm) | 600 x 337.5 x 50 |
| Panel Resolution(dot) | 240 x 135 |
| LED Type | SMD1415 |
| Brightness(cd/m2 ) | 4500 |
| Horizontal Viewing Angle | 140° |
| Vertical Viewing Angle | 140° |
| Gray Level | 16384 |
| Refresh Rate(Hz) | 3840Hz |
| Max. AC power consumption | 700W/m2 |
| Avg. AC power consumption | 350W/㎡ |
| Voltage | AC100~240 50/60HZ |
| Operate Temp(℃) | -30℃~+50℃ |
| Storage Temp(℃) | -40～80 ℃ |
| Operating Humidity | 10~95% RH |
| Protection grade | IP65 |
| Operating Environment | Outdoor |
| Cabinet Material | Aluminum alloy |
| LED Lifetime(H) | 100,000 |
| Weight(kg/pc) | 6 |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 10-15 working days after confirm receipt payment in advance.
FAQ:
Q1: Can you provide customized services?
A1: Yes, we can design different categories of products according to your demand.
Q2: Is it OK to print our logo on the LED screen product?
A2: Yes, we can print your logo according to your request.
Q3: Can I order a sample for the LED display screen?
A3: Yes, we welcome you to order a sample to test and check quality. You can choose any item that you want.
Q4: How much is the freight?
A4: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
Q5: Do you offer a guarantee for the products?
A5: Yes, we offer 2 years warranty on our products.
-
