P0.9 COB Small Pixel Pitch LED Display Cabinet Weight 4kg Front Service
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 COB Small Pixel Pitch LED Display Cabinet Weight 4kg Front Service | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Refresh Rate: | >3840Hz Or >7680Hz | Cabinet Size: | 600x337.5×29.5mm |
| Maintenance: | Front Service | IP Rating: | Front: IP54 Rear: IP30 |
| Cabinet Weight: | 4kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | P0.9 COB LED display,small pixel pitch LED cabinet,front service LED display |
||
Product Description

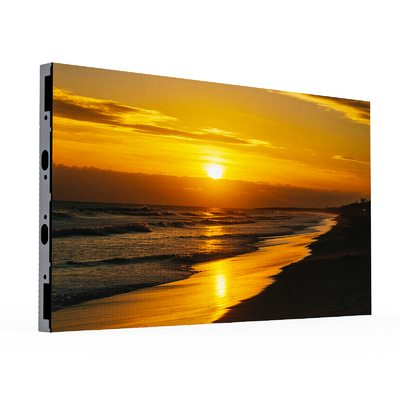

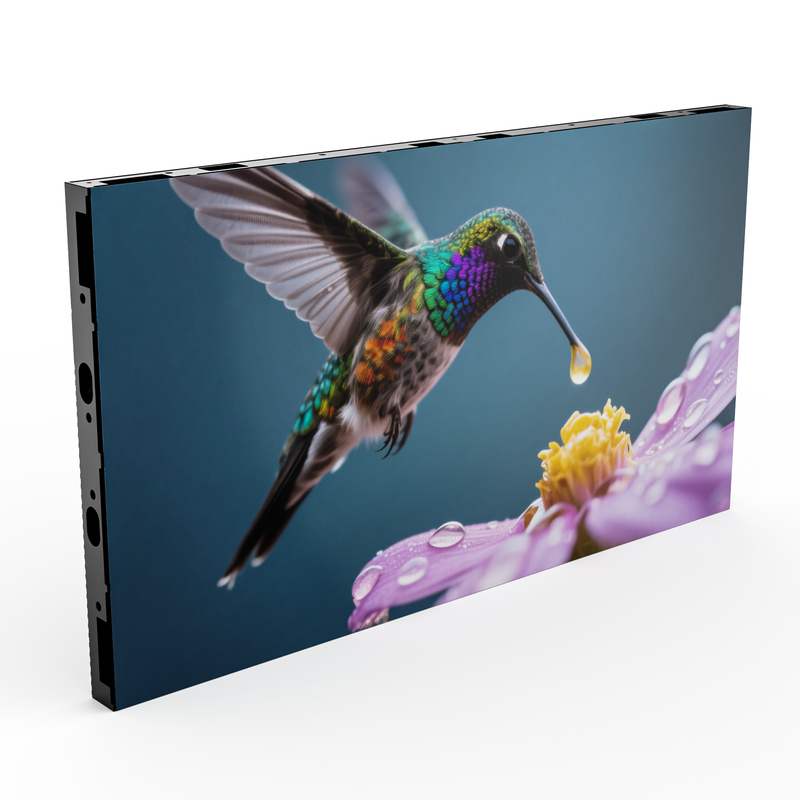

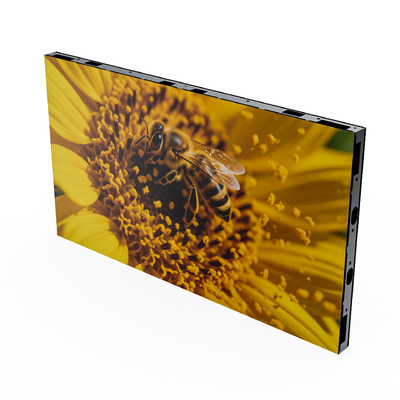

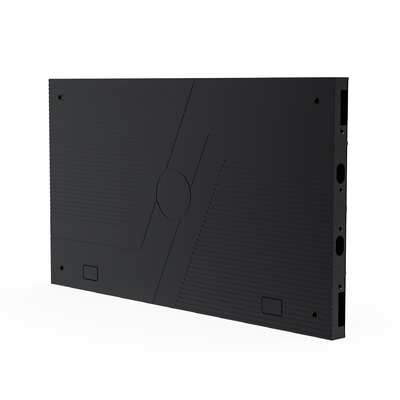

P0.9 COB Small Pixel Pitch LED Display Cabinet
The P0.9 COB Small Pixel Pitch LED Display excels with its advanced full flip-chip COB technology, achieving a slim, lightweight, and ultra-thin design. Its 16:9 aspect ratio ensures seamless compatibility with diverse content formats, while front-access maintenance simplifies servicing. An optimized thermal management system enhances durability, and built-in signal and power redundancy guarantees uninterrupted operation—making it the premier solution for high-performance display environments.
Product Specifications
| Product Name | P0.9 COB Small Pixel Pitch LED Display Cabinet Weight 4kg Front Service |
| Pixel Pitch | P0.7/P0.9/P1.25/P1.56 |
| Refresh Rate | >3840Hz or >7680Hz |
| Cabinet Size | 600x337.5×29.5mm |
| Maintenance | Front Service |
| IP Rating | Front: IP54 Rear: IP30 |
| Cabinet Weight | 4kg |
| Installation Type | Mounting/Hanging/Stacking |
Key Features
- The full flip-chip COB process integrates advanced protective technologies, including anti-collision, waterproofing, moisture resistance, and salt-spray protection.
- The module incorporates 3D ink printing technology, enhancing contrast by 20% and reducing the brightness requirements for optimal display performance.
- A built-in LCD status display panel provides real-time insights into the cabinet's operational status, ensuring efficient monitoring and maintenance.
- The PCB design features an HDI multi-layer circuit structure, guaranteeing uniform color representation and stable temperature management for reliable performance.
- This series leverages Sunrise's energy-efficient common cathode chips, delivering exceptional grayscale performance with levels of up to 16 bits.
Technical Parameters
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | Flip-COB(common cathode) | |||
| Cabinet Dimension(mm) | 600*337.5*29.5 | |||
| Cabinet Resolution | 768*432 | 640*360 | 480*270 | 384*216 |
| Module Size(mm) | 150x168.75 | |||
| Cabinet Weight | 4kg | |||
| Cabinet Material | Die-casting Aluminum | |||
| Driving Type | 1/36 | 1/36 or 1/54 | 1/27 or 1/60 | 1/48 |
| Maintenance | Front service | |||
| Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
| Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
| Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
| IP Rating | Front: IP54 Rear: IP30 | |||
| Refresh Rate | >3840Hz or >7680Hz | |||
| Installation Type | Mounting/Hanging/Stacking | |||
| Gray Scale | 16bit | |||
| Viewing Angle | H:170°V:170° | |||
| Operational Temp | -20℃~+50℃ | |||
| Operational Humidity | 10%-90%RH | |||
Applications
- Digital Signage Systems: Ideal for malls, airports, stations, and offices, offering vibrant, high-brightness displays for dynamic ads and information, ensuring visibility in bright settings.
- Football Stadiums: Delivers high-res replays, scores, and ads with reliable performance and efficient heat dissipation for long events.
- Perimeter LED Posters: Perfect for sports fields and event venues, providing dynamic ads and info with easy installation and maintenance.
- Arena Displays: Designed for concert halls, convention centers, and arenas, offering vivid visuals with high contrast for live events, promotions, and announcements.
Service and Support
- Pre-Sale Services: 24-hour response to inquiries. Market research and customized solutions. Datasheets, samples, custom packing, and factory visits.
- In-Sale Process: Production monitoring. Photos/videos upon request. Free spare parts are included.
- After-Sales Support: 24-hour complaint response. Maintenance guidance within 48 hours. 24-month warranty, free technician training, and comprehensive documentation.
Frequently Asked Questions
Do you offer sample orders?
Yes, we gladly accept sample orders for quality assessment and market evaluation.
Is there a warranty included?
Definitely! All our products are backed by a two-year warranty.
Can I customize the product?
Of course! We provide full customization options, supported by our dedicated product development team to meet your specific requirements.
What is your minimum order quantity (MOQ)?
There is no strict MOQ, and we offer competitive pricing for bulk orders.
Does it support HD video playback?
Yes, it delivers high-definition video playback when used with Novastar or Colorlight control systems.
