P5.6 Carbon Fiber LED Display Super Light Weight Windproof for Outdoor Use
P5.6 Carbon Fiber LED Display Super Light Weight Windproof for Outdoor Use
Brand Name
VW
Product Model
CFTL5
Certificate
CE, ROHS
Country Of Origin
China
MOQ
Negotiable
Unit Price
Negotiable
Payment Method
T/T
Supply Capacity
3000 sqm/month
Product Details
Highlight:
carbon fiber LED display
,windproof outdoor LED screen
,lightweight stage rental display
Product Name:
P5.6 Carbon Fiber LED Display Super Light Weight Windproof For Outdoor Use
Pixel Pitch(Mm):
5.68
Module Size:
500×250mm
Screen Size:
500×1000mm
Brightness:
5000nits
Weight:
12kg/sqm
IP Rate:
IP65
Usage Scenarios:
Outdoor
Product Description
Detailed Specifications And Features
P5.6 Carbon Fiber LED Display Super Light Weight Windproof for Outdoor Use

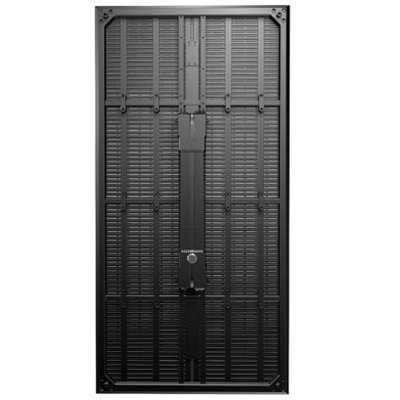

The ultimate in lightness and convenience, this P5.6 Carbon Fiber LED Display's ultra-light weight reduces transportation difficulties. The modular design with quick disassembly and assembly function greatly improves installation efficiency. Transparent and windproof, the screen optimizes the visual effect with a bevel design, which is both aesthetically pleasing and practical, making it suitable for outdoor advertising, exhibitions, and other scenarios.
Product Features
- Transparent & Windproof: The hollow design of the LED screen Xaga cleverly utilizes the principle of aerodynamics, enabling the screen to effectively achieve air convection in outdoor environments, thus greatly reducing the impact of strong winds.
- Quick Disassembly & Assembly: Features unique and patented Quick Release Lock technology that simplifies operation and reduces assembly/disassembly time, ensuring fast deployment or evacuation.

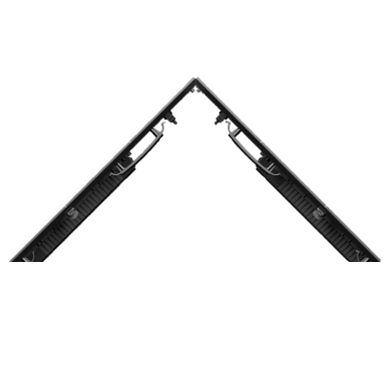

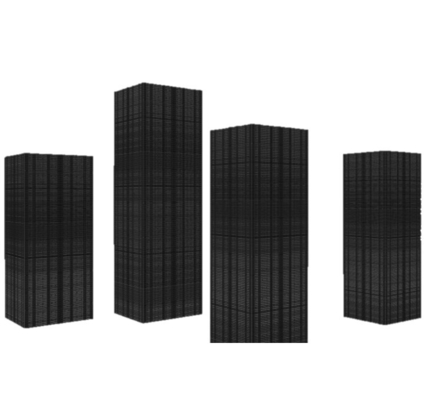

- Bevel Edge Design: Angled edge design allows for up to 90° curved assembly, enabling flexible integration into various spatial layouts while maintaining stability and visual quality. Can also be spliced into cubes for creative displays.

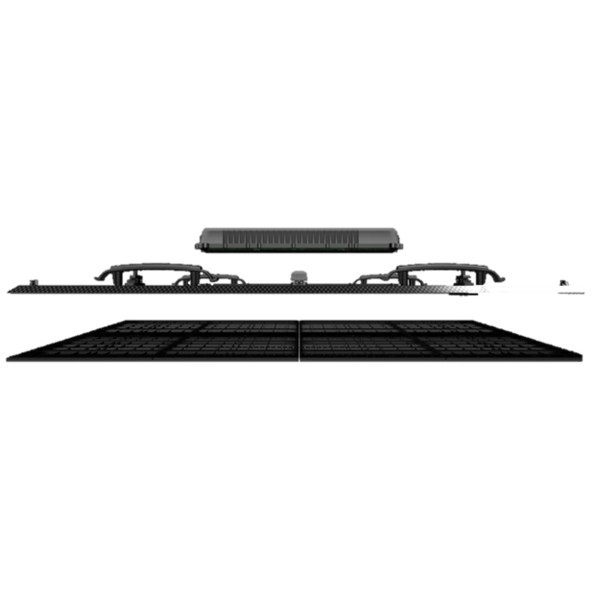

- Modular Design: Consists of three core components: independent power box for stability, high-strength carbon fiber frame for protection, and integrated LED module for simplicity and durability.
Technical Parameters
| Product model | CFTL5 |
|---|---|
| Pixel pitch(mm) | 5.68 |
| Module size(mm) | 500x250 |
| Module resolution(dot) | 88 x 44 |
| Module assembly | 1x4 |
| Panel size(mm) | 500x1000 |
| Panel resolution(dot) | 88 x 176 |
| LED type | SMD1921 |
| Brightness(cd/m²) | 5000 |
| Contrast ratio | 5000:1 |
| Support input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
| Horizontal viewing angle | 160° |
| Vertical viewing angle | 160° |
| Gray level(bit) | 16 |
| Refresh rate | ≥7680Hz |
| Max. AC power consumption | ≤700W/m² |
| Avg. AC power consumption | ≤250W/m² |
| Input voltage | 100-240 VAC, 50~60 Hz |
| Operate temperature | -30°C~+50°C |
| Storage temperature | -40~+80°C |
| Operating humidity | 10~90% RH |
| Protection grade | IP65 |
| Working environment | Outdoor |
| Cabinet material | Carbon fiber |
| LED lifetime(hours) | 100000 |
| Weight(kg/m²) | 12 |
Product Applications
Event Rental • Stage Rental • Game Play Rental
Q & A
Q1: What is your minimum order quantity (MOQ)?
A1: There is no strict MOQ, and we offer competitive pricing for bulk orders.
Q2: What is your delivery time?
A2: LED display modules typically ship within 3 to 15 days, while full LED displays are delivered within 10 to 25 days after receiving the deposit. The exact delivery timeline depends on the type and size of your order.
Q3: Do your products come with free spare parts?
A3: Yes, for LED modules, we provide spare lamps and ICs. For full LED displays, we include spare lamps, ICs, modules, power supplies, and more.
Q4: Do your products come with a warranty?
A4: Yes, we offer a two-year warranty on all products.
Q5: Can your products be customized?
A5: Absolutely! We offer customization options tailored to your specific requirements, including size, shape, and features. Additionally, we can customize the LED display with your logo.
