P8 Adhesive Transparent LED Display 1000*240mm Only 3mm Thickness Transparency 70%
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC,FCC |
| Model Number: | TP8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Export carton box, Plywood case |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P8 Adhesive Transparent LED Display 1000*240mm Only 3mm Thickness Transparency 70% | Pixel Pitch: | P6/P8/P10 |
|---|---|---|---|
| Brightness: | 1500-3000nits | Module Size: | 1000*240mm |
| Thickness: | 3mm | Transparency: | 65%/70%/80% |
| IP Rating: | IP43 | Weight: | 3.5kg |
| Highlight: | adhesive transparent LED display 70% transparency,P8 LED display 3mm thickness,transparent LED screen 1000x240mm |
||
Product Description
| Attribute | Value |
|---|---|
| Product Name | P8 Adhesive Transparent LED Display 1000*240mm Only 3mm Thickness Transparency 70% |
| Pixel Pitch | P6/P8/P10 |
| Brightness | 1500-3000nits |
| Module size | 1000*240mm |
| Thickness | 3mm |
| Transparency | 65%/70%/80% |
| IP Rating | IP43 |
| Weight | 3.5kg |

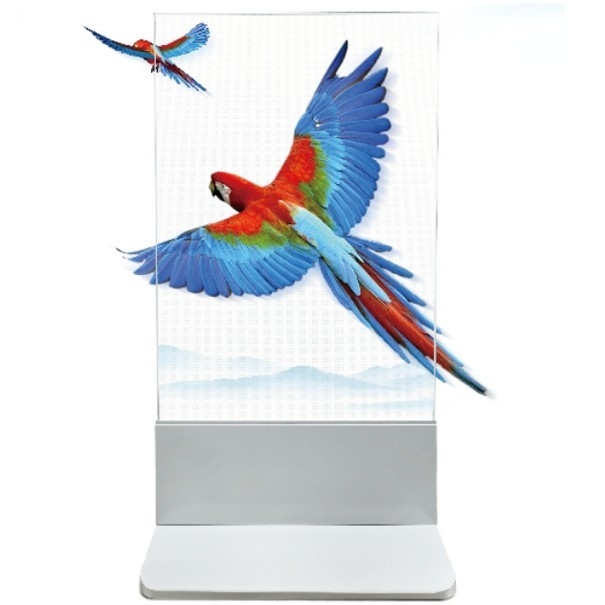

The P8 adhesive transparent LED display is paper-thin and lightweight, seamlessly adhering to curved surfaces like a sticker. The flexible substrate can be freely bent to fit shaped spaces. This innovative solution subverts traditional installation methods, enabling quick deployment without brackets, making it ideal for architectural curtain walls and window displays with invisible display technology.
- Adhesive film LED display for glass applications
- Lightweight at 3.5 kg per panel
- Easy and quick to install
- High brightness options of 1500-3000 nits

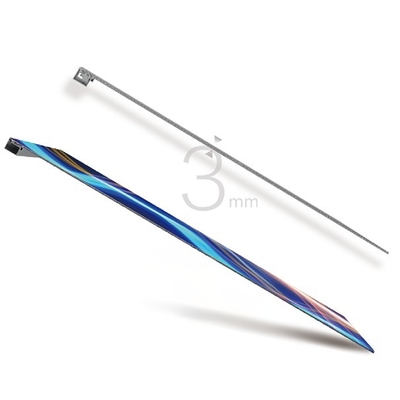

- Ultra thin: 3mm thickness makes it the thinnest LED display in the market

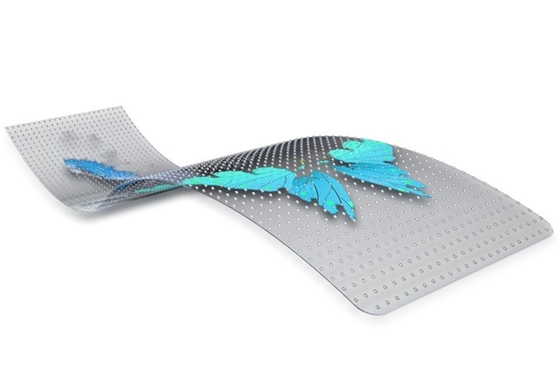

- Flexible: Bendable adhesive film LED panel that fits curved glass walls
- High transparency: Up to 70% transparency rate, ideal for store window glass
- UV Resistance: Anti-UV material prevents yellowing
- Customizable size: Film panel is cuttable for irregular glass installations
| Product Model | TP6 | TP8 | TP10 |
|---|---|---|---|
| Pixel Pitch | 6*6mm | 8*8mm | 10*10mm |
| LED Type | SMD2121 | ||
| Module Dimension(mm) | 1000*240*3mm | ||
| Weight | 3.5kg/panel | ||
| Brightness | 1500-3000nits | ||
| Transparency | 65% | 70% | 80% |
| Max/Avg Power(m²) | 800/280w/m² | ||
| IP Rating | IP43 | ||
- Building glass facade
- Shopping center glass wall
- Store window glass
- Brand flagship store
- Glass hall and corridor
We offer full-service support at every stage of engagement:
- Pre-Purchase: Comprehensive production instructions and expert guidelines
- During Purchase: Tailored solutions, creative visual designs, and project examples
- Post-Purchase: Two-year warranty, dedicated maintenance staff, prompt support, spare parts availability, complimentary training, and software updates
A1: We are a professional manufacturer specializing in LED displays including outdoor, indoor, rental, stadium, advertising, and stage screens. We welcome visits to our factory for technical training and demonstrations.
A2: Samples are typically arranged within 1-2 days, with production orders completed within 5-12 days after payment confirmation.
A3: Please provide detailed requirements for an immediate quote. For design discussions, contact us via WhatsApp/WeChat/Skype/Email/Phone to avoid delays.
A4: All LED products undergo 72-hour testing before shipping. We maintain strict quality control from raw materials to final shipment.
A5: We provide free training on screen setup, parameter configuration, and video broadcasting using Nova star, Colorlight, or Linsn control systems. Our English-speaking engineers can provide direct assistance.
