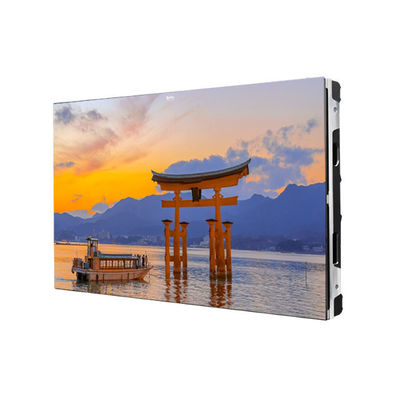

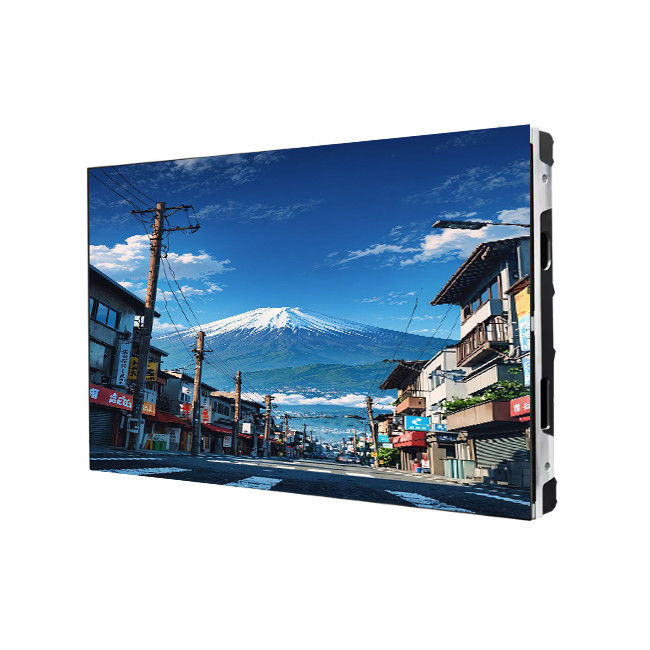

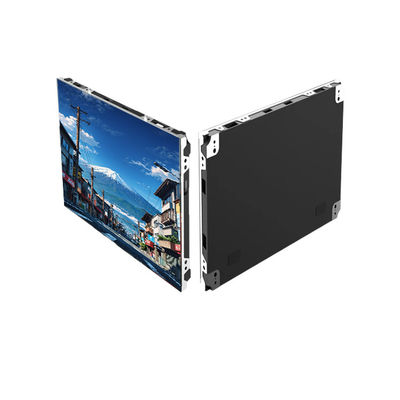

P1.25 Fine Pixel Pitch Displays COB 4.6kg Die-casting Aluminum For Retail Store
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Fine Pixel Pitch Displays COB 4.6kg Die-casting Aluminum For Retail Store | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aliuminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | P1.25 fine pixel pitch LED display,COB LED display for retail store,die-casting aluminum LED display |
||
Product Description
P1.25 Fine Pixel Pitch Displays COB 4.6kg Die-casting Aluminum For Retail Store
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | P1.25 Fine Pixel Pitch Displays COB 4.6kg Die-casting Aluminum For Retail Store |
| Pixel Pitch | P0.7/P0.9/P1.25/P1.56 |
| Cabinet Weight | 4.6kg |
| Brightness | 0-2000nits |
| Cabinet Material | Die-casting Aluminum |
| LED Type | COB |
| Cabinet Dimension | 600x337.5mm |
| Maintenance | Front Service |
Product Overview
Key Features:
- Full flip-chip COB process with anti-collision, waterproof, moisture-proof, and salt spray protection
- 3D ink printing technology increases contrast by 20% and reduces brightness requirements
- LCD status display panel for real-time cabinet operation monitoring
- HDI multi-layer circuit board design ensures excellent color uniformity and temperature distribution
- Energy-saving common cathode chip with 16bit grayscale level
Technical Parameters
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type | 1/36 | 1/36 | 1/27 | 1/48 |
| Maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m² | 420/147 W/m² | 330/100 W/m² | 330/100 W/m² |
| IP Rating | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°; V:170° | H:170°; V:170° | H:170°; V:170° | H:170°; V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment
Frequently Asked Questions
Q1: Are you the manufacturer or trading company? and where is your factory?
A1: We are professional manufacturer devoted to producing LED outdoor, LED indoor display, rental display, stadium screen, advertising screen and stage screen etc. You are warmly welcome to visit our factory to learn the technical and maintenance skills and everything you need in our factory.
Q2: May be we will need some samples, what is the lead time of samples and lead time of order?
A2: We will arrange your sample of the charges within 1-2 days and arrange your order within 5-12 days after receiving your payment.
Q3: How can I place an order?
A3: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Whatsapp/Wechat/Skype/Email/Phone, in case of any delays.
Q4: How about the quality?
A4: Our LED products must be testing of at least 72 hours before shipping, from purchase raw materials to ship. Each step has strict quality control systems to ensure LED display with good quality.
Q5: Can you offer a technical support? Since it's my first time....
A5: We provide free training for our customer, teach the customer how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to do if you really don't know how to control (Our Engineer can text English, we can saving more time).
