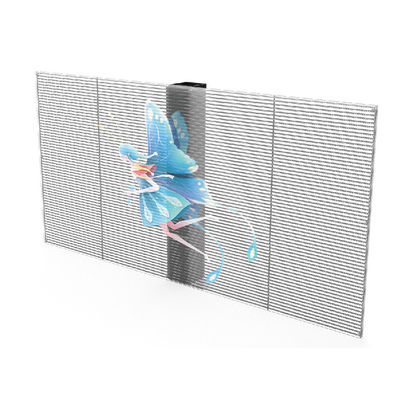

P7.8 Full Color Window Screen with 800-5500nits Brightness and 65% Transparency For Indoor Use
P7.8 Full Color Window Screen with 800-5500nits Brightness and 65% Transparency For Indoor Use
Brand Name
VW
Product Model
TF7.8
Certificate
CE, ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
3000 sqm/month
Product Details
Highlight:
P7.8 transparent LED screen
,indoor high brightness LED display
,window screen LED display 800nits
Product Name:
P7.8 Full Color Window Screen With 800-5500nits Brightness And 65% Transparency For Indoor Use
Pixel Pitch:
7.8*7.8mm
Module Size:
500×125mm
Cabinet Size:
1000×500×84mm
Cabinet Weight:
3.5 Kg
Cabinet Material:
Aluminum
IP Rating:
F: IP20, R: IP21
Refresh Rate:
>1920 Hz
Product Description
Detailed Specifications And Features
P7.8 Full Color Window Screen with 800-5500nits Brightness and 65% Transparency For Indoor Use
| Attribute | Value |
|---|---|
| Product Name | P7.8 Full Color Window Screen with 800-5500nits Brightness and 65% Transparency For Indoor Use |
| Pixel Pitch | 7.8*7.8mm |
| Module Size | 500×125mm |
| Cabinet Size | 1000×500×84mm |
| Cabinet Weight | 3.5 kg |
| Cabinet Material | Aluminum |
| IP Rating | F: IP20, R: IP21 |
| Refresh Rate | >1920 Hz |
Product Description

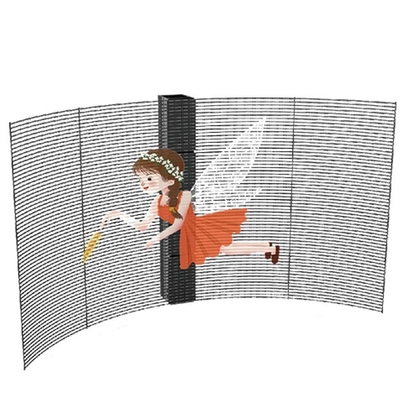

The perfect combination of LED display and transparent glass shows a unique and harmonious beauty. Whether it is curved design or frameless installation, or customized according to customers' needs, every detail shows the charm of craftsmanship and professional customized service.
Features
- Brightness 800-5500nits adjustable
- Quick Installation and Maintenance
- Fast lock
- Frontal protection
Technical Parameters
| Product Model: | TF7.8 |
| Pixel Pitch: | 7.8*7.8 mm |
| LED Type: | SMD2121; SMD1921 |
| Cabinet Dimension: | 1000x500x84 mm |
| Module Size: | 500x125 mm |
| Cabinet Weight: | 3.5 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/6 |
| Brightness: | 800-5500 nits |
| Max/Avg Power: | 400/140; 800/280 W/m² |
| Transparency Rate: | 65% |
| Environment: | Indoor Use |
| IP Rating: | F: IP20, R: IP21 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting/Hanging |
| Gray scale: | 14 bit |
| Viewing Angle: | H:140°; V:140° |
| Operational Temp: | -20℃~+60°C |
| Operational Humidity: | 10%~90% RH |
Applications
supermarket, airport advertising display, self-service store, metro station, museum, convenience store, stadium exhibition, Chain brand store, High-end conference room, Luxury brand store, Hotel, Bar, Theatre, cinema, T stage, Showroom, Tourist attractions...
Attention: Visual World recommends that our customers purchase enough LED display modules for spare replacement. If the LED display modules come from different purchases, the LED display modules may come from different batches, which will cause color difference.
FAQ
Q1. Can I have a sample order for LED display?
A1: Yes, we welcome sample order to test and check quality. Both for module or whole screen.
Q2. What about the lead time?
A2: Order less than 100 square meter led time take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A3: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A4: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20-30 day on sea. a few days for customer clearance
Q5. How to proceed an order for LED display?
A5: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 1 years warranty to our products
Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
