P1.25 Fine Pixel Pitch Displays COB 600x337.5mm Front Service For Exhibition Hall
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Fine Pixel Pitch Displays COB 600x337.5mm Front Service For Exhibition Hall | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aliuminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | 600x337.5mm Front Service Display,P1.25 Fine Pixel Pitch Displays |
||
Product Description

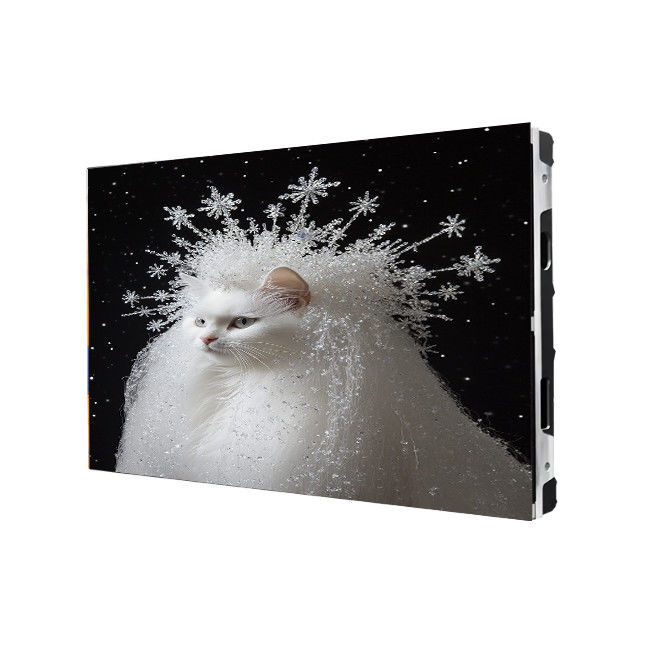

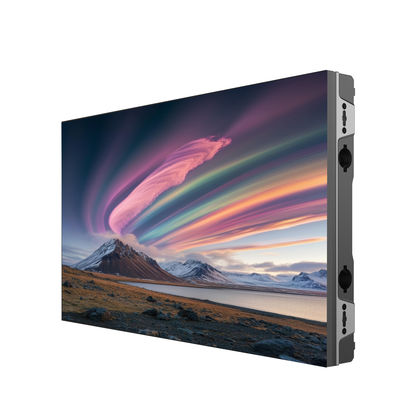

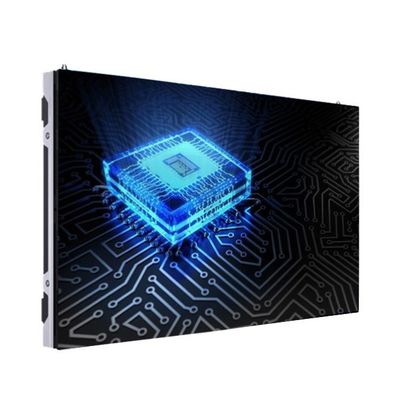

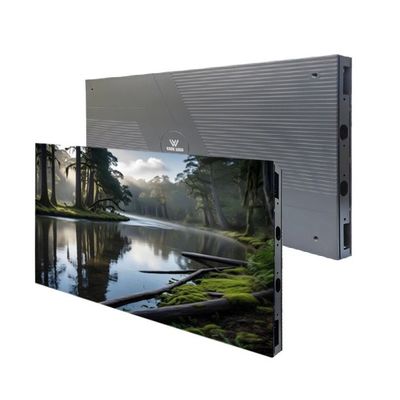

P1.25 Fine Pixel Pitch Displays COB 600x337.5mm Front Service For Exhibition Hall
Product Description:
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Features:
- Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /
FAQ:
Q1: What types of LED displays do you offer?
A1: We provide a comprehensive range of LED displays, including:
Indoor/Outdoor Fixed Displays: High brightness and weatherproof solutions for commercial and public spaces.
Rental LED Screens: Lightweight and modular designs for events and exhibitions.
Transparent LED Displays: Ideal for retail showcases and architectural integration.
Customizable LED Modules: Tailored sizes and configurations to meet specific project requirements.
Q2: Can you customize LED displays for specific projects?
A2: Yes, we specialize in OEM/ODM services. Customization options include:
Size and Resolution: Adaptable to unique spatial or visual requirements.
Curved/Special Shapes: Designed for creative installations.
Branding Integration: Pre-installed logos or color schemes.
