P1.25 Flexible LED Display Screen SMD1010 Magnets Front Service 240*120mm
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.25 Flexible LED Display Screen SMD1010 Magnets Front Service 240*120mm | Pixel Pitch: | P1.25,P1.579,P1.667,P1.875,P2,P2.5,P3,P4 |
|---|---|---|---|
| Module Size: | 240*120mm | Curved Angle: | 110°-180° |
| Cabinet Material: | Steel Cabinet With Painting | Module Weight: | 0.2kg |
| Brightness: | 600-1000 Nits | Maintenance: | Magnets Front Service |
Product Description
P1.25 Flexible LED Display Screen SMD1010 Magnets Front Service 240*120mm
Product Description:
The P1.25 Flexible LED Display Screen features a unique design with stable, advanced functionality. Its high flexibility and superior HD performance make it a better choice for outdoor LED displays compared to traditional models.
Features:

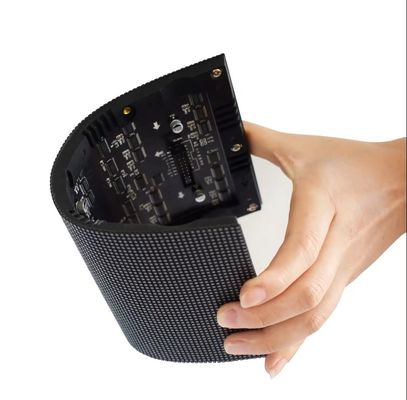

- Flexible Design
Soft PCB allows bending for versatile installations.

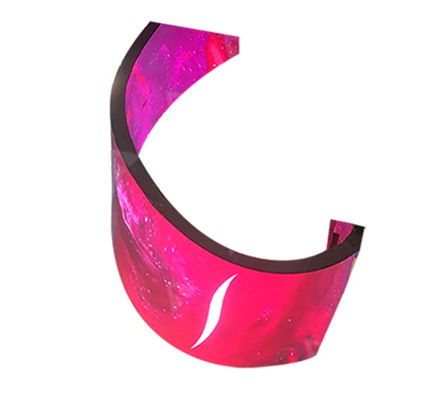

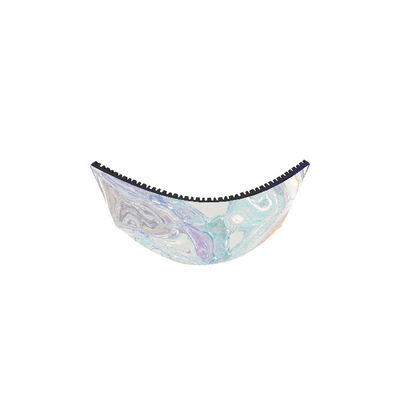

- Curved Display
Supports angles from 110° to 180°, both inner and outer curves.

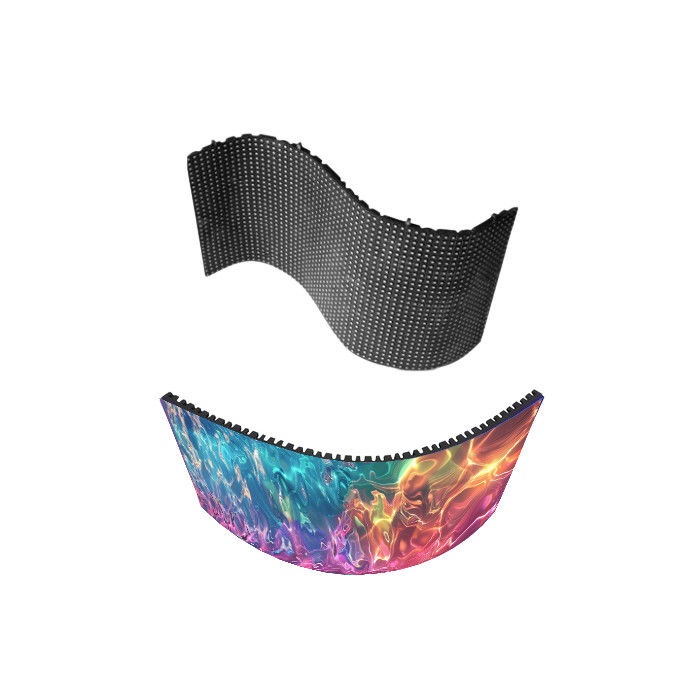

- Multiple Shapes
Adapts to round, convex, concave, S-shaped, and other irregular designs.
- Magnetic Front Service
Easy front maintenance with magnetic modules; optional safety rope for secure high-position installations.
Technical Parameters:
| Product Model: | P1.25 |
| Pixel Pitch: | 1.25 mm |
| LED Type: | SMD1010 |
| Module Resolution: | 192*96 pixels |
| Module Size: | 240*120mm |
| Module Weight: | 0.215 kg |
| Cabinet Material: | Iron with painting |
| Driving Type: | 1/48 |
| Brightness: | 600-1000 nits |
| Max Power: | 19 w/pcs |
| Maintenance: | Front & Rear service |
| Environment: | Indoor Use |
| IP Rating: | F: IP20, R: IP20 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting / Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Application:
-
Creative Designs: Adaptable for unique shapes (cubes, spheres, ribbons) and customizable angles.
-
Outdoor Advertising: Scalable, durable, excellent heat dissipation, long lifespan, low maintenance.
-
360° Displays: Ultra-thin, lightweight, bendable up to 180°, versatile shapes (cylinders, ribbons).
FAQ:
Q1: Can you provide OEM/ODM services?
A1: Sure, we have a mature technical team that can customize products and labels
Q2:ls your company a genuine manufacturer?
A2: We are a factory directly supplying from Shenzhen, Guangdong Province. Welcome to visitour factory.
Q3:How to choose a suitable display screen?
A3: Determine size and resolution based on usage scenarios and requirements, And the quality and stability of the display screen.
Q4: What kind of after-sales service can you provide?
A4: Technical support: Provide technical consultation and guidance to help users solve problemsencountered during use, Remote collaboration: A dedicated after-sales department operatesremotely online to ensure the normal use of the screen.
Q5: ls there a quality check before delivery of the displays?
A5: Absolutely. We conduct a thorough 100% quality test with a 72-hour aging process to ensureeach display unit meets our stringent quality standards before delivery.
Q6: How long is the delivery time for your displays?
A6: The typical delivery time is 15-20 days after receiving the deposit. However, delivery time may vary depending on order quantity and specific requirements.
