P40 Flexible LED Mesh Screen RGBW IP67 Outdoor Use For Stage Background
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P30,P40,P50,P60,P80,P110 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P40 Flexible LED Mesh Screen 90% High Transparency IP67 For Stage Background | Pixel Pitch: | P30,P40,P50,P60,P80,P110 |
|---|---|---|---|
| LEDs Type: | SMD2727/SMD3535 | IP Level: | IP67 |
| Brightness: | 500-5000nits | Transparent Rate: | 90% |
| Control Type: | DMX512 | Color: | RGBW |
| Highlight: | RGBW LED Mesh Screen,Stage Background Flexible LED Mesh Screen,IP67 P40 Flexible LED Mesh Screen |
||
Product Description
P40 Flexible LED Mesh Screen RGBW IP67 Outdoor Use For Stage Background
DESCRIPTION:

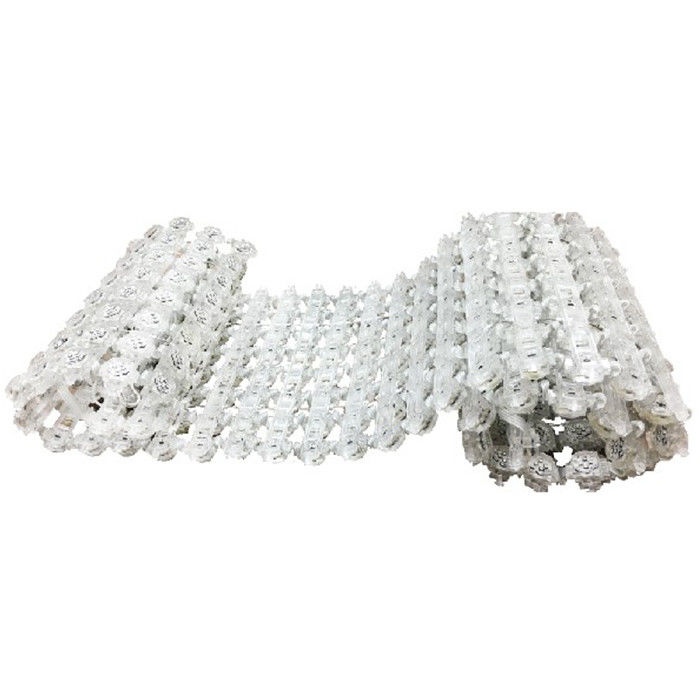

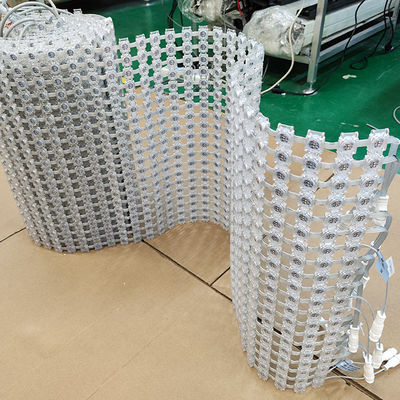

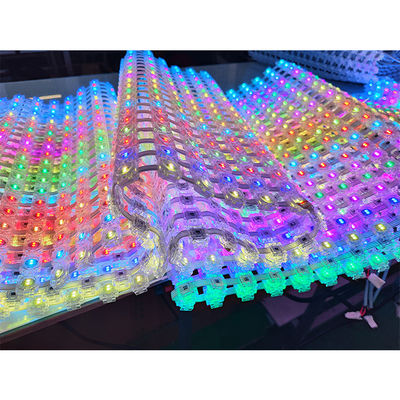

LED mesh screen is composed of a kind of lightweight soft and flexible LED pixel light, which could also gather together to be the transparent full color display system by convenient accessories. Its features are flexible installation, light weight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc.. It is high artistry and creativity that can be free to assemble into various shapes.
FEATURES:
- OUTDOOR USE
Ip66 protection rate, waterproof, dustproof, wind resistance and good heat dissipation.
- HIGH TRANSPARENCY
High transparency to 90%, maintains high visibility from inside the hotel.
- FLEXIBLE
Bendable led mesh can meet most of unusual project surface or irregular subjection.
- GOOD HEAT DISSIPATION
Independent power box design, good heat dissipation.
-
LIGHT WEIGHT
Only around 8kg/sqm, save shipping cost.
- EASY INSTALLATION AND MAINTENANCE
Quick installation and maintenance, reduce labor cost.
TECHNICAL SPECIFICATIONS:
| Product Model: | P30 | P40 | P50 |
| Pixel Pitch: | 30 mm | 40 mm | 50 mm |
| LED Type: | SMD2727/SMD3535 | SMD2727/SMD3535 | SMD2727/SMD3535 |
| Color: | RGBW | RGBW | RGBW |
| LEDs Quantity: | 1-4pcs | 1-4pcs | 1-4pcs |
| Voltage: | DC12V | DC12V | DC12V |
| Material: | Transparent flame-retardant PC | Transparent flame-retardant PC | Transparent flame-retardant PC |
| Control Type: | DMX512 | DMX512 | DMX512 |
| Brightness: | >4000 nits | >2300 nits | >1600 nits |
| Power Consumption: | 0.2-0.5W/pixel | 0.2-0.5W/pixel | 0.2-0.5W/pixel |
| Maintenance: | Front or Rear service | Front or Rear service | Front or Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 | F: IP67, R: IP67 | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:120°；V:120° | H:120°；V:120° | H:120°；V:120° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
DRAWING:
Outdoor 1000x250mm Mesh LED Display.
LED mesh screen outdoor P30mm, P40mm,P50mm,P60mm,P80mm,P100mm
INSTALLATION:
CONTROL SYSTEM:
FAQ:
Q1: The model of LED display screens is generally represented by "P", such as P2, P3, P4... P8, P10. What does this mean?
A1: P3 P4..... P8, P10 indicates that the pixel pitch is 3mm, 4mm... 10mm, which determines the resolution of the display. The smaller the pixel pitch, the higher the resolution of the LED display.
Q2: What pixel pitch should I choose on my display?
A2: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q3: What information do I have to give you to order a monitor?
A3: You should provide the width/height of the monitor, main use, viewing distance, on-site photos and other special requirements before I can provide you with a detailed quotation list
Q4: How about delivery time?
A4: We will ship as soon as possible, but depending on the distance and some other necessary processes, it usually takes 2-3 weeks to receive the goods.
Q5: What if I don't know how to maintain the screen?
A5: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
