P40 Flexible LED Mesh Screen 90% High Transparency IP67 For Stage Background
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P30,P40,P50,P60,P80,P110 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P40 Flexible LED Mesh Screen 90% High Transparency IP67 For Stage Background | Pixel Pitch: | P30,P40,P50,P60,P80,P110 |
|---|---|---|---|
| LEDs Type: | SMD2727/SMD3535 | IP Level: | IP67 |
| Brightness: | 500-5000nits | Transparent Rate: | 90% |
| Control Type: | DMX512 | Color: | RGBW |
Product Description
P40 Flexible LED Mesh Screen 90% High Transparency IP67 For Stage Background
DESCRIPTION:

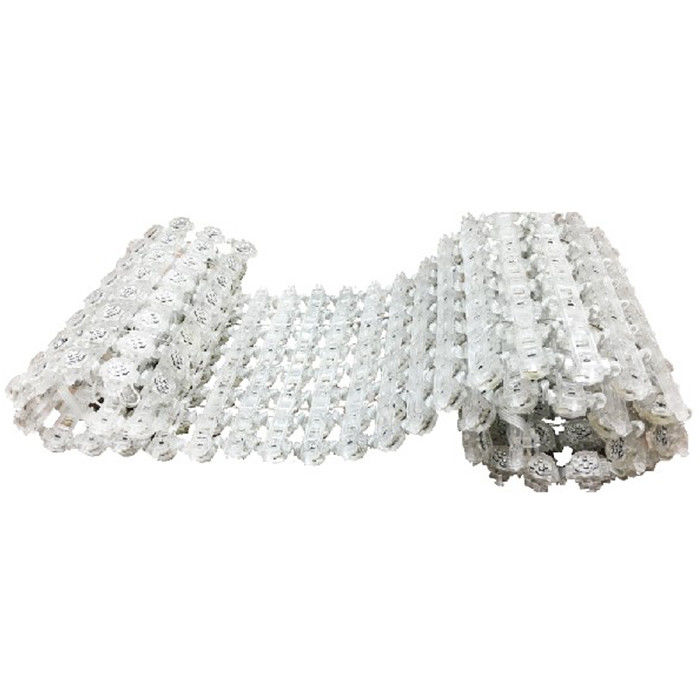

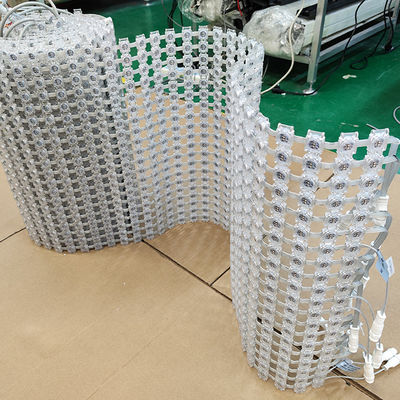

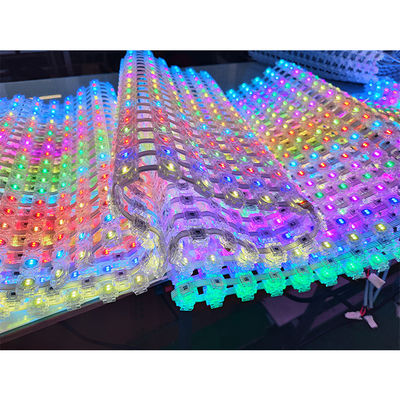

LED mesh screen is composed of a kind of lightweight soft and flexible LED pixel light, which could also gather together to be the transparent full color display system by convenient accessories. Its features are flexible installation, light weight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc.. It is high artistry and creativity that can be free to assemble into various shapes.
FEATURES:
- OUTDOOR USE
Ip66 protection rate, waterproof, dustproof, wind resistance and good heat dissipation.
- HIGH TRANSPARENCY
High transparency to 90%, maintains high visibility from inside the hotel.
- FLEXIBLE
Bendable led mesh can meet most of unusual project surface or irregular subjection.
- GOOD HEAT DISSIPATION
Independent power box design, good heat dissipation.
-
LIGHT WEIGHT
Only around 8kg/sqm, save shipping cost.
- EASY INSTALLATION AND MAINTENANCE
Quick installation and maintenance, reduce labor cost.
TECHNICAL SPECIFICATIONS:
| Product Model: | P30 | P40 | P50 |
| Pixel Pitch: | 30 mm | 40 mm | 50 mm |
| LED Type: | SMD2727/SMD3535 | SMD2727/SMD3535 | SMD2727/SMD3535 |
| Color: | RGBW | RGBW | RGBW |
| LEDs Quantity: | 1-4pcs | 1-4pcs | 1-4pcs |
| Voltage: | DC12V | DC12V | DC12V |
| Material: | Transparent flame-retardant PC | Transparent flame-retardant PC | Transparent flame-retardant PC |
| Control Type: | DMX512 | DMX512 | DMX512 |
| Brightness: | >4000 nits | >2300 nits | >1600 nits |
| Power Consumption: | 0.2-0.5W/pixel | 0.2-0.5W/pixel | 0.2-0.5W/pixel |
| Maintenance: | Front or Rear service | Front or Rear service | Front or Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 | F: IP67, R: IP67 | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:120°；V:120° | H:120°；V:120° | H:120°；V:120° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
DRAWING:
Outdoor 1000x250mm Mesh LED Display.
LED mesh screen outdoor P30mm, P40mm,P50mm,P60mm,P80mm,P100mm
INSTALLATION:
CONTROL SYSTEM:
Key points for led mesh:
1. Size of width x height
2. Brightness requirement (use at daytime or night , even exact time period at daytime like after 4pm...)
3. Viewing distance
4. Requirement for content performing
(HD videos/ low resolution, videos/ graphics/ logo, text, branding/ color decoration)
5. Environment condition, like highest or lowest temperature, or near seaside
6. Onsite photos / drawings needed
APPLICATION FIELD:
Lednet series is a led soft mesh display with features flexible, lightweight, easy to install and maintain. Screen installation are workable for bending, folding, winding, hanging. It can be freely combined into a variety of shapes for artistic and creative projects. Widely being used in stage background, bar, ktv, building surface decoration, shopping malls, wedding decorations and other places.
FAQ:
Q2: How do we ensure quality?
A2: Seven quality control steps ensure that the screens you order are of good quality
1). We are committed to using premium-grade LED components.
2). We have a complete quality inspection system, and professional technical workers and machines are used to inspect materials.
3). Each product is strictly tested at least 4 times before shipment.
4). All modules are subjected to a 48-hour high-temperature aging test before assembling the cabinet.
5). After the cabinet is assembled, all functions of each cabinet are tested.
6). All tested cabinets are assembled and debugged and then subjected to a 72-hour aging test.
7). All products and spare parts are checked and confirmed again during packaging.
Q3: How to operate and use it?
A3: Our technician will help you to configure LED screen by video call or by remote if you don’t know how to make LED screen work.
Q5: How long does it take to ship?
A5: Express and air freight usually take 5-10 days. Sea freight takes about 15-55 days according to different countries.
