P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service

P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service
Brand Name
VW
Product Model
P4
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
China
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
1000sqm per month
Product Details
Highlight:

P4 Outdoor LED Display Module

,

IP67 Outdoor LED Display Module
Product Name: P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service
Pixel Pitch: 2.85mm,4mm, 6.67mm
IP Level:: IP67
Module Size: 320x320x37mm
Maintenance: Front Service
Cabinet Material: Die-casting Aluminum
Cabinet Weight: 15kg/sqm
Brightness: 5000nits
Product Description
Detailed Specifications And Features

P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service



Product Description:

The 320x320mm Smart LED Module boasts a modular design, offering flexible and scalable display solutions. Its lightweight construction and high protection level ensure easy rigging and long-lasting durability. With an IP67 protection rating, the module is fully waterproof and anti-salt, making it perfect for challenging environments. Designed for user convenience, it allows for effortless assembly, installation, and maintenance. Additionally, its integrated signal and power cabling streamline setup, delivering a seamless and efficient user experience.

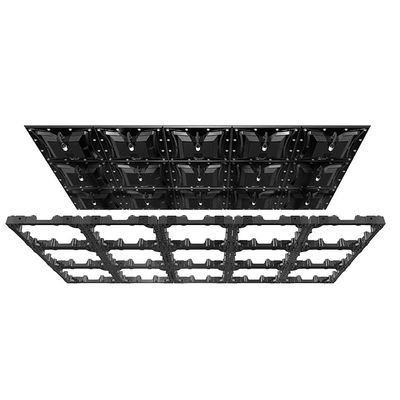

P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service 0

Technical Parameters:

Product Model: P2.85 P4 P6.67
Pixel Pitch: 2.85 mm 4 mm 6.67 mm
LED Type: SMD1921 SMD1921 SMD2727
Cabinet Dimension: 320×320x37 mm 320×320x37 mm 320×320x37 mm
Module Size: 320x320 mm 320x320 mm 320x320 mm
Cabinet Weight: 15 kg  15 kg 15 kg
Cabinet Material: Aluminum Aluminum Aluminum
Driving Type: 1/16 1/16 1/6
Brightness: >4500 nits >5000 nits >5000 nits
Max/Avg Power: 800/200 W/m2 800/200 W/m2 800/200 W/m2
Maintenance: Front service Front service Front service
Environment: Outdoor Use Outdoor Use Outdoor Use
IP Rating: F: IP67, R: IP67 F: IP67, R: IP67 F: IP67, R: IP67
Refresh Rate: >3840 Hz >3840 Hz >3840 Hz
Installation Type: Mounting/Hanging Mounting/Hanging Mounting/Hanging
Gray Scale: 14 bit 14 bit 14 bit
Viewing Angle: H:140°；V:160° H:140°；V:160° H:140°；V:160°
Operational Temp: -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Operational Humidity: 10%~90% RH 10%~90% RH 10%~90% RH



Features:

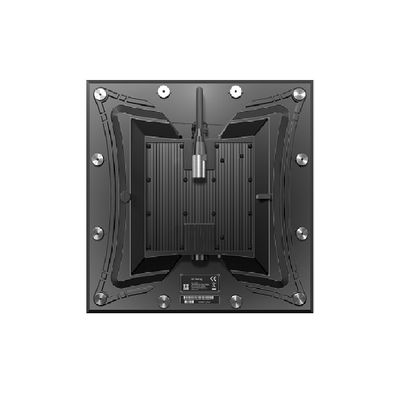

P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service 1

  • LIGHTWEIGHT

​Die-casting aluminum material, only 15kg/sqm, saving shipping costs.

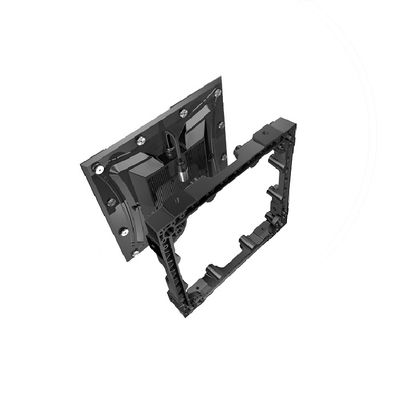

P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service 2

  • INTEGRATED DESIGN

Integrate power supply, receiving card, and module into one cabinet.

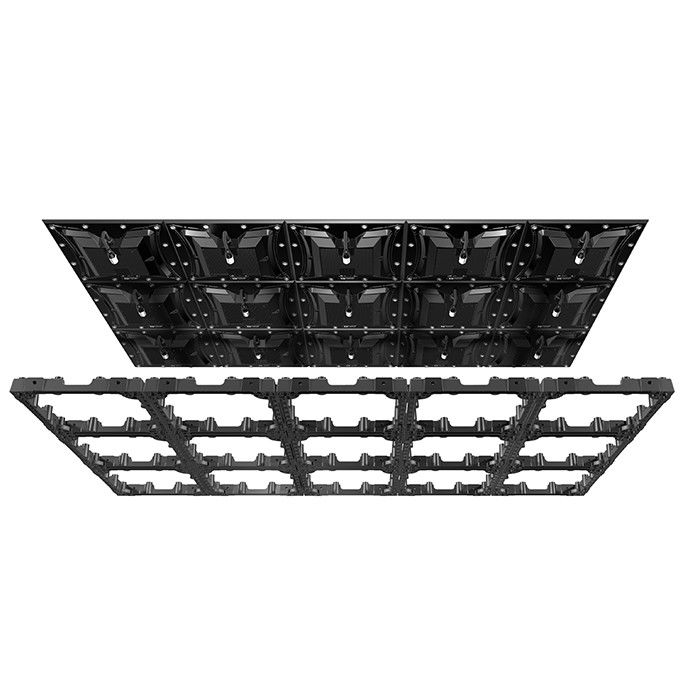

P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service 3

  • Waterproof IP67
High protection level, Waterproof and dustproof, VO grade fireproof material is used, Safe and reliable.

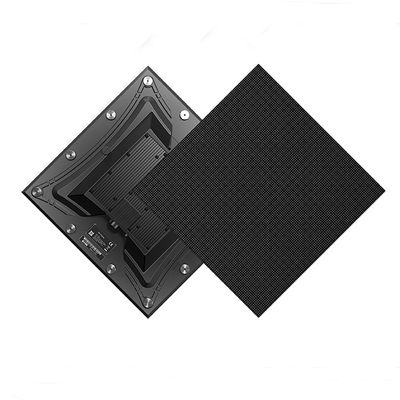

P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service 4

  • 45° BEVELEDGE DESIGN

45° Beveledge design, various shapes splicing



Installation Method


P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service 5



Application:

  • Shopping Mall:

LED screens can display mall directories, store locations, and ongoing promotions, helping shoppers easily navigate and find their preferred stores or amenities.

  • Outlets Storefront:

LED screens can showcase real-time deals, flash sales, and new product arrivals, attracting customers and driving increased foot traffic and sales.

  • Arc Video Wall:

The curved, high-definition LED design creates a visually immersive experience, ensuring maximum viewer engagement and attention.

P4 Outdoor LED Display Module Die-casting Aluminum IP67 Video Wall Front Service 6



FAQ:

Q1:How does your factory do regarding quality control?
A1:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CCC,PSE,RCM,CE,ROHS,FCC,IP65,CNAS authentication.



Q2:What is your MOQ?
A2:Any quantity is acceptable for your order. And the price is negotiable for large quantity.



Q3: What is your best service?
A3: 1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.

Q4. How about your delivery time?
A4: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the
quantity of your order.

Q5:How about your Warranty Term?
A5: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have
professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also
help you get over any problems.
