P1.25 Small Pitch LED Display COB 600x337.5mm Front Service For Home Cinema
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Small Pitch LED Display COB 600x337.5mm Front Service For Home Cinema | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aliuminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
Product Description

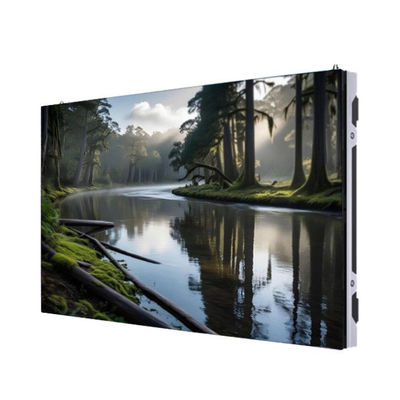

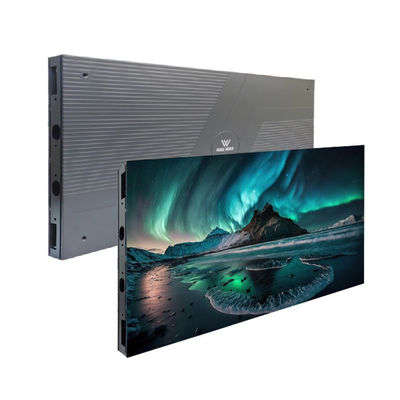

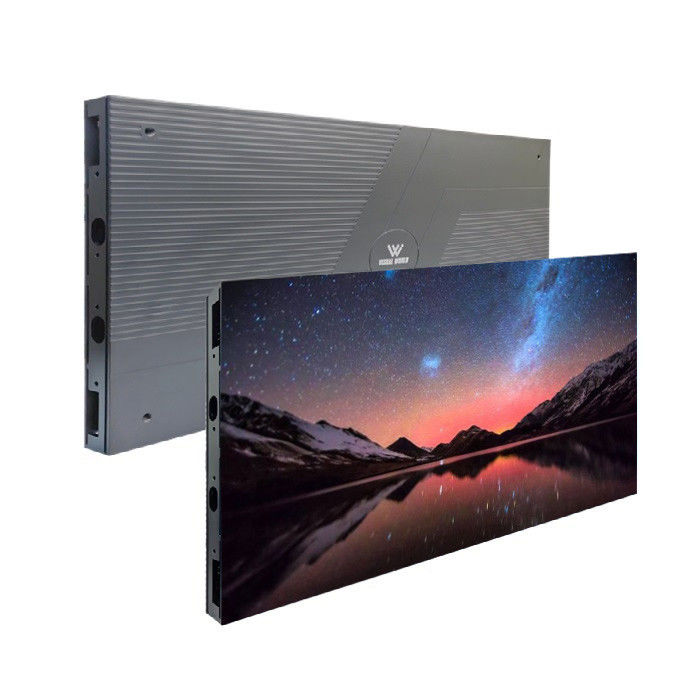

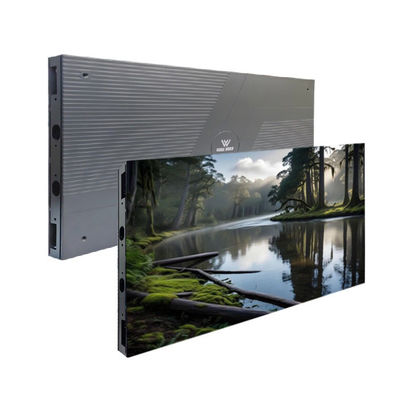

P1.25 Small Pitch LED Display COB 600x337.5mm Front Service For Home Cinema
Product Description:
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Features:
- Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /
FAQ:
Q1:How does your factory do regarding quality control?
A1:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CCC,PSE,RCM,CE,ROHS,FCC,IP65,CNAS authentication.
Q2:What is your MOQ?
A2:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q3: What is your best service?
A3: 1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q4. How about your delivery time?
A4: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the
quantity of your order.
Q5:How about your Warranty Term?
A5: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have
professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also
help you get over any problems.
