P3.9 Holographic Indoor Transparent LED Display 6kg/SQM Rear Service For Exhibitions
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case, flight case |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P3.9 Holographic Indoor Transparent LED Display 6kg/SQM Rear Service For Exhibitions | Brightness: | 1000-5000nits |
|---|---|---|---|
| Waterproof: | IP42 | Led Type: | SMD1415 1R1PG1PB UV |
| Driving Method: | Static | Transparent Rate: | 70% |
| Maintenance: | Rear Service | Cabinet Size: | 600/1200/1800x500/600/700/800mm |
| Cabinet Material: | Aluminum+PCB | Panel Weight: | 6 Kg/sqm |
Product Description

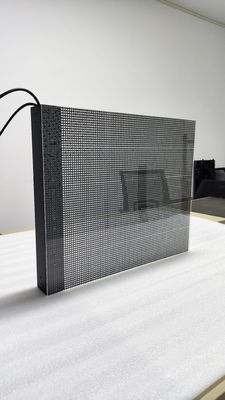

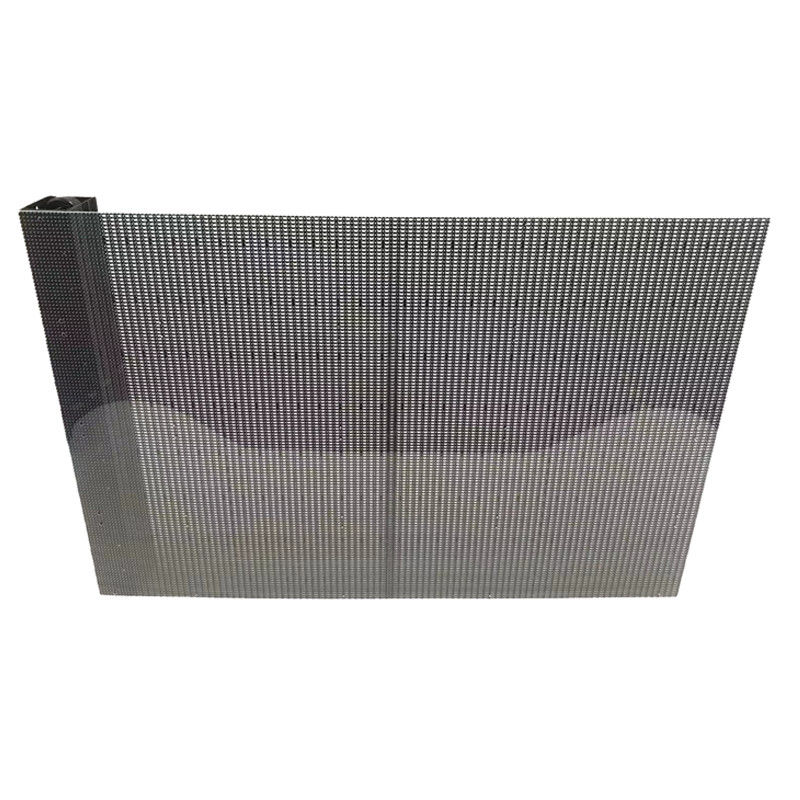

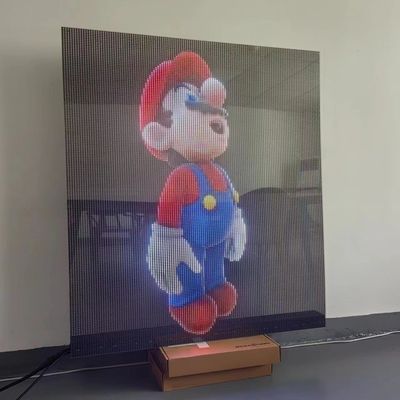

P3.9 Holographic Indoor Transparent LED Display 6kg/SQM Rear Service For Exhibitions
Product Description:
P3.9 Indoor Holographic Transparent LED Display is an innovative display solution designed for indoor applications that require a high level of visual engagement without compromising on aesthetics or space. This lightweight display system, weighing only 6kg per square meter, offers a perfect blend of technology and design.
Features:
-
Transparent:Industry premiere,with no structural backbone；Real fully transparent；Permeability can reach 70%
- Thin:Module thickness<3mm；Seamless curved surface mountingIntegrated seamlessly onto glass
- Foldable and arbitrarytransformation shape；Soft and bendable.lt can becustomized into different shapes according to different scenes, for example,triangles, ellipses, etc.
- Arbitrary cutting,seamless spiced display:The screen size can be arbitrarily cropped, the closer the distance betweenthe screen beads of the seamless splicing screen, the clearer the pixeldensity. And the seamless cropped screen is more flexible to match theinstallation and regional carrier.
Technical Parameters:
| Pixel Pitch (H/V) | W:3.9;H:3.9mm | W:6.25;H:6.25mm |
| LED Configuration | SMD1415 1R1PG1PB UV | SMD1415 1R1PG1PB UV |
| Pixel Density | 65536dot/㎡ | 25600dot/㎡ |
| Transparency | <66.66% | <70% |
| Drive Scheme | 18 aisle | 18 aisle |
| Scan method | 0 Scan(6 layer PCB) | 0 Scan(4 layer PCB) |
| Refresh Rate | 1920-3840Hz | 1920-3840Hz |
| Module Size | 375/750/1125/1500X125mm(L/R) | 600/1200/1800X100mm(L/R) |
| Module Resolution | 96/192/288/384X32dot | 96/192/288X16dot |
| Product Size | 375/750/1125/1500X500mm | 600/1200/1800X500/600/700/800mm |
| Cabinet Resolution | 96/192/288/384X128dot | 96/192/288X80/96/112/128dot |
| Cabinet Weight | 6kg/㎡ | 6kg/㎡ |
| IP Rating ( front/back) | IP42 | IP42 |
| Brightness | 1000-5000nits/㎡ | 1000-5000nits/㎡ |
| Viewing Angle (H/V) | 140°/140° | 140°/140° |
| Viewing Distance | 4m | 6 m |
| Gray Scale | 16 bit | 16 bit |
| Max.Power Consumption | 800W/m² | 800W/m² |
| Ave.Power Consumption | 240W/m² | 240W/m² |
| Maintenance | Rear service | Rear service |
| Environment | indoor | indoor |
| Operation Power | AC:100_240V;50/60Hz | AC100_240V,50/60Hz |
| Operating Temperature | ﹣10℃~40℃ (work) | ﹣10℃~40℃ (work) |
| Operating Humidity | 35%～85% (work),10%～90% | 35%～85% (work),10%～90% |
| Operating Life | 100,000hours | 100,000hours |
Applications:
-
Retail Displays: Enhance product showcases with dynamic holographic displays that capture the attention of shoppers and provide an immersive shopping experience.
-
Galleries and Exhibitions: Provide a unique viewing experience for art and exhibits, allowing visitors to see the artwork in a new light.
-
Corporate Settings: Use in conference rooms and lobbies for impactful presentations and informational displays that leave a lasting impression.
-
Entertainment Venues: Create immersive environments in theaters, clubs, and other entertainment spaces, adding depth and excitement to the atmosphere.
FAQ:
Q1:Are you a manufacturer or trading company?
A1:We are a professional OEM/ODM manufacturer ,which has specialized in the LED display industry for more than 10 years.
Q2:How does your factory do regarding quality control?
A2.The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q3:What is your MOQ?
A3.Any quantity is acceptable for your order. And the price is negotiable for large quantities.
Q4.How about your warranty term?
A4. Calculated from the goods to the customer, the warranty period is 2 years, don’t worry, there is a problem with the module,you can send it back to Shenzhen for repair.
Q5:When will you make the delivery?
A5.We can make the delivery within 3-5 working days for the led modules and 10-15days for the led finished screen according to the size and quantities of your order.
