P0.9 Small Pixel Pitch LED Display Full Flip-chip COB Front Service For Home Cinema
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 Small Pixel Pitch LED Display Full Flip-chip COB Front Service For Home Cinema | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Size: | 600x337.5mm |
| Maintenance: | Front/Rear Service | Brightness: | 600-800nits |
| Refresh Rate: | ＞3840Hz | Durability: | 100000 Hours |
| Highlight: | P0.9 Small Pixel Pitch LED Display,Full Flip-chip COB LED Display,Home Cinema LED Display |
||
Product Description

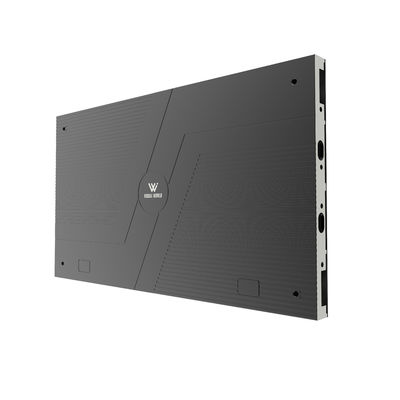

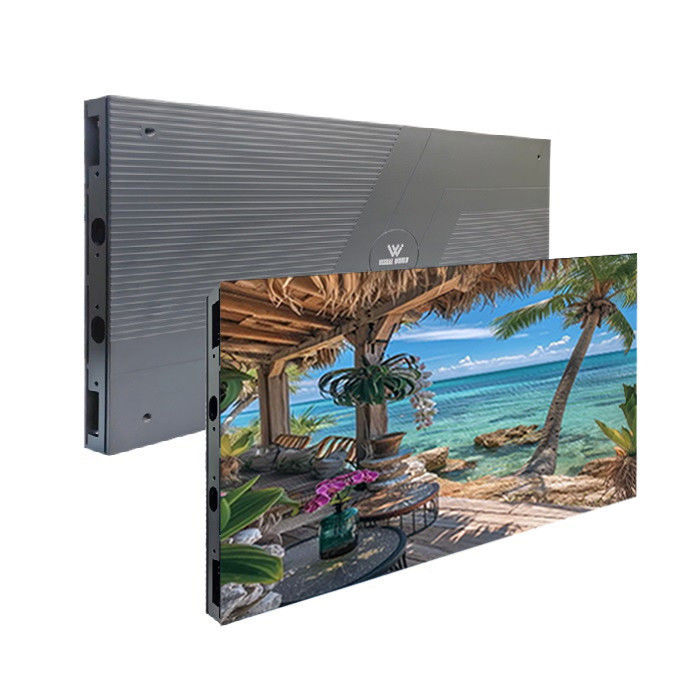

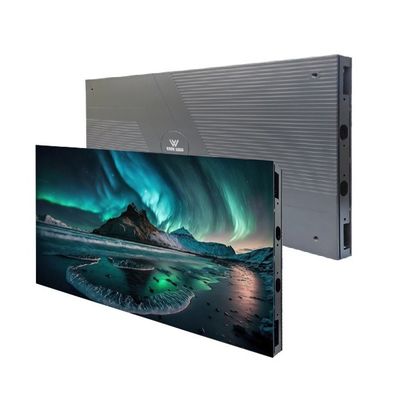

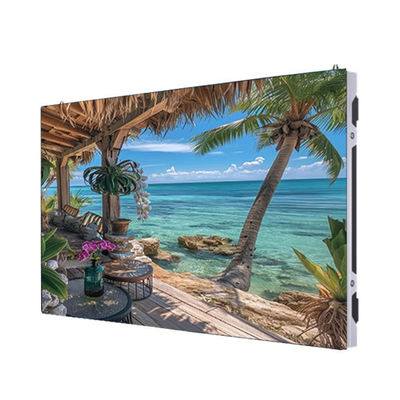

P0.9 Small Pixel Pitch LED Display Full Flip-chip COB Front Service For Home Cinema
The P0.9 Small Pixel Pitch LED Display COB from VISUAL WORLD is a state-of-the-art display solution that elevates high-definition visuals. With a pixel pitch of just 0.9mm, it guarantees sharp and detailed images, making it perfect for applications that require exceptional visual precision and clarity.
Designed in a compact 600x337.5mm module size, this COB LED display offers flexibility and straightforward installation. Its die-cast aluminum cabinet not only contributes to a sleek, modern look but also ensures the display's durability and lightweight design.
Key Features
- Full flip-chip COB process with protection technology including anti-collision, waterproof, moisture-proof, and salt spray resistance
- Module utilizes 3D ink printing technology, increasing contrast by 20% and reducing brightness requirements
- Supports LCD status display panel for intuitive real-time monitoring of cabinet operation
- Module PCB features HDI multi-layer circuit board design for excellent color uniformity and even temperature distribution
- Energy-saving common cathode chip with high performance and 16-bit grayscale level
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type | 1/36 |
| Maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m² |
| IP Rating | Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type | Mounting / Hanging / Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°; V:170° |
| Operational Temperature | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications
- Digital Signage systems
- Home cinema and theater installations
- Street furniture displays
- Billboard advertising
- Football stadium screens
- Perimeter LED posters
- Arena displays and similar venues
Packing and Shipping Information
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping methods: Air; Express; Ocean; Land Transportation
Delivery time: 10-15 working days after confirming receipt of payment in advance
