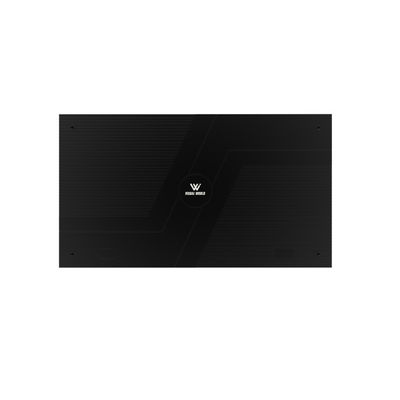

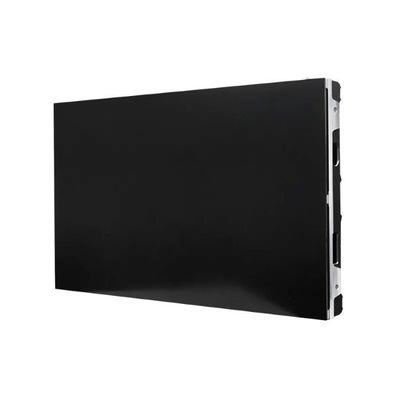

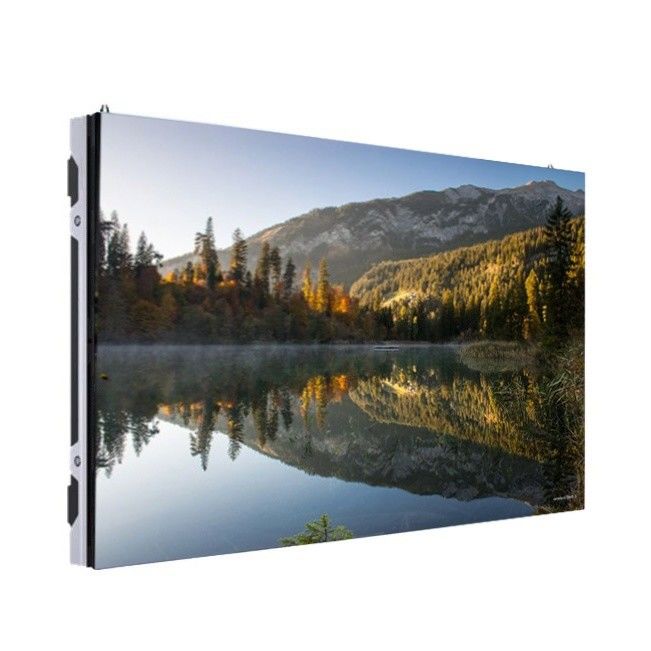

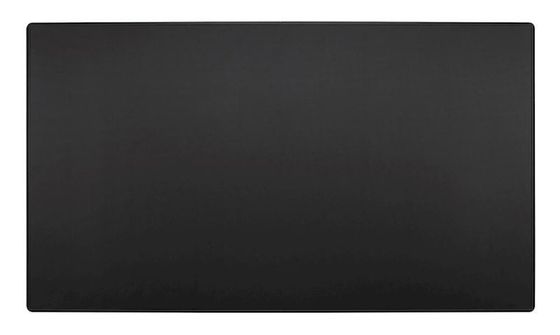

P0.9 Small Pixel Pitch LED Display COB Front IP65 And Rear IP30 2000nits For Vision
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 Small Pixel Pitch LED Display COB Front IP65 And Rear IP30 2000nits For Vision | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Size: | 600x337.5mm |
| Maintenance: | Front/Rear Service | Brightness: | 600-2000nits |
| Refresh Rate: | ＞3840Hz | Durability: | 100000 Hours |
| Highlight: | 2000nits Small Pixel Pitch LED Display,P0.9 Small Pixel Pitch LED Display |
||
Product Description
P0.9 Small Pixel Pitch LED Display COB Front IP65 And Rear IP30 2000nits For Vision
Product Description:
Features:
- High Brightness: Achieves up to 1000 nits for exceptional visibility.
- Energy Efficiency: Reduces energy consumption by 30%.
- High Reliability: Features flip-chip common cathode technology for superior heat dissipation and enhanced stability.
- Patented Appearance Design: Eliminates white edges and burrs, with light transmittance of up to 75% and low-temperature performance.
- High Contrast Ratio: Exceeds 20000:1 for vivid and sharp visuals.
- High Consistency: Utilizes Micro LED flip-chip mixed processing technology and same Bin chips for uniform performance.
- Wide Color Gamut: Supports DCI-P3 for rich and accurate color reproduction.
- Easy Installation: Enables full front maintenance and allows multiple disassembly and assembly of LED modules without white edges.
- Versatile Applications: Suitable for wall-mounted, floor-standing, and hanging installations.
Technical Parameters:
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type: | 1/36 |
| maintenance | Front service |
| Brightness | 600-2000 nits |
| Max/Avg Power | 420/147 W/m2 |
| IP Rating |
Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type |
Mounting / Hanging / Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°；V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications:
Chain Stores:
- Ideal for brand promotion and product ads across retail locations.
- Energy-efficient, cost-saving design with high consistency and contrast for uniform, captivating displays.
Street Furniture:
- Integrates seamlessly into bus stops, kiosks, and public info boards.
- The durable, weather-resistant design delivers clear, vibrant visuals for ads or public announcements.
Billboards:
- Built for large-scale outdoor ads with high brightness (up to 1000 nits) for day/night visibility.
- Patented seamless design ensures a professional appearance.
Football Stadiums:
- Enhances fan experience with high-res displays for replays, scores, and ads.
- Reliable performance with superior heat dissipation for long events.
Pre-Sale Service:
- Respond to inquiries within 24 hours.
- Provide market research, forecasts, and tailored solutions.
- Offer datasheets, samples, custom packaging design, and factory visits upon request.
In-Sale Service:
- Monitor production and share photos/videos as requested.
- Supply spare parts at no extra cost.
After-Sale Service:
- Address complaints within 24 hours and resolve issues within 48 hours.
- 24-month warranty included.
- Free technician training and comprehensive documentation (installation guides, manuals, maintenance guides, software CDs) are provided.
FAQ:
Q1: Do you provide a warranty for your products?
A1: Yes, all our products come with a 2-year warranty.
Q2: Is it possible to print my logo on the product?
A2: Absolutely. We can print your logo—please provide formal confirmation before production and approve the design based on our sample.
Q3: Can I place a sample order for the LED screen?
A3: Yes, we encourage sample orders for testing and quality assurance. Mixed samples are also accepted.
Q4: What is your delivery time?
A4: Delivery typically takes 7–15 days after receiving your deposit. The exact timing depends on the order items and quantities.
Q5: What is the control system, and how does it work?
A5: We use the Nova control system, which supports cluster play, management, and control via APP, phone, Wi-Fi, iPad, laptop, PC, and cloud. This ensures easy and convenient operation.
