P0.7 COB Small Pixel Pitch LED Display 2000nits High Brightness And High Resolution
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.7 COB Small Pixel Pitch LED Display 2000nits High Brightness And High Resolution | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aluminum | Cabinet Size: | 600x337.5mm |
| Maintenance: | Front Service | LED Type: | COB |
| Cabinet Weight: | 4.6kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | 2000nits COB LED Display,High Resolution COB LED Display,High Brightness COB LED Display |
||
Product Description
P0.7 COB Small Pixel Pitch LED Display 2000nits High Brightness And High Resolution
Product Description:
Discover our P0.7 COB Small Pixel Pitch Display, a cutting-edge innovation designed to transform visual experiences. With state-of-the-art display technology, it offers unmatched performance and efficiency, making it the ideal choice for premium digital signage, immersive virtual reality environments, and beyond.
Features:

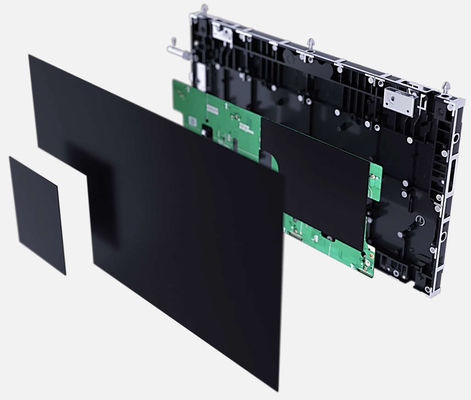

- The full flip-chip COB process integrates advanced protective technologies, including anti-collision, waterproofing, moisture resistance, and salt-spray protection. These features effectively prevent issues such as LED screen blindness or caterpillar defects caused by exposure to high humidity or salt-rich environments.
- The module incorporates 3D ink printing technology, enhancing contrast by 20% and reducing the brightness requirements for optimal display performance.
- A built-in LCD status display panel provides real-time insights into the cabinet’s operational status, ensuring efficient monitoring and maintenance.
- The PCB design features an HDI multi-layer circuit structure, guaranteeing uniform color representation and stable temperature management for reliable performance.
- This series leverages Sunrise’s energy-efficient common cathode chips, delivering exceptional grayscale performance with levels of up to 16 bits.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
- Digital Signage Systems:
Ideal for dynamic advertising and information displays in shopping malls, airports, train stations, and corporate environments. Enhances engagement with high brightness and wide color gamut, ensuring visibility even in well-lit areas.
- Football Stadiums:
Enhances the spectator experience with high-resolution displays for live-action replays, scores, and advertisements. The high reliability and heat dissipation features ensure stable performance during long events.
- Perimeter LED Posters:
Ideal for surrounding sports fields or event venues, providing dynamic advertising and event information. The easy installation and maintenance features make it convenient for frequent updates.
- Arena Displays:
Perfect for large indoor venues like concert halls, convention centers, and sports arenas. The wide color gamut and high contrast ratio deliver stunning visuals for live events, promotions, and announcements.
- Pre-Sale Services:
24-hour response to inquiries.
Market research and customized solutions.
Datasheets, samples, custom packing, and factory visits.
- In-Sale Process:
Production monitoring.
Photos/videos upon request.
Free spare parts are included.
- After-Sales Support:
24-hour complaint response.
Maintenance guidance within 48 hours.
24-month warranty, free technician training, and comprehensive documentation.
FAQ:
Q1: Do you provide a warranty for your products?
A1: Yes, we offer a 2-year warranty on all our products.
Q2: Can I place a sample order for the LED screen?
A2: Yes, we welcome sample orders for testing and quality checks. Mixed samples are also acceptable.
Q3: Is it possible to print my logo on the product?
A3: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
Q4: What is your delivery time?
A4: Generally, delivery takes 7–15 days after receiving your deposit. The specific delivery time depends on the order items and quantities.
Q5: What is the control system, and how does it work?
A5: We use the Nova Taurus Series asynchronous control system, which supports cluster play and management. It also allows control via APP, phone, Wi-Fi, iPad, laptop, PC, and cloud. This makes operation very easy and convenient.
