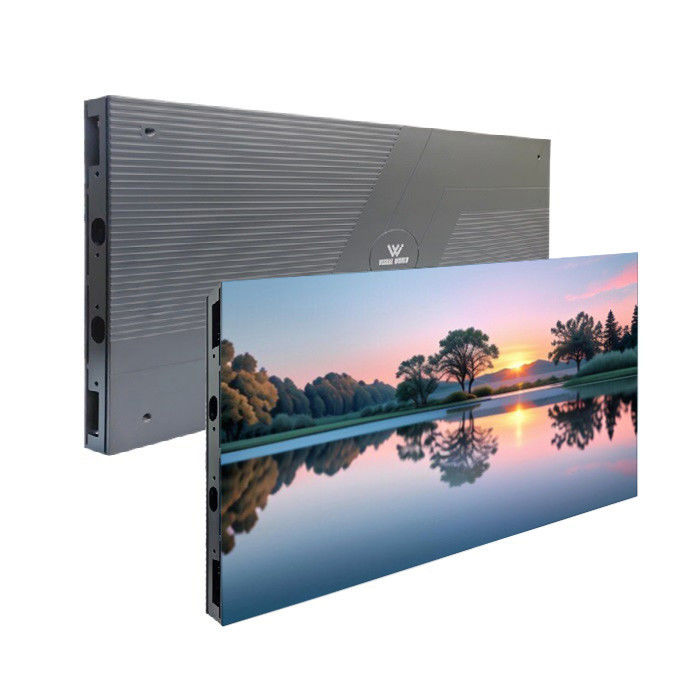

P0.9 Small Pixel Pitch LED Screen COB 600x337.5 mm Cabinet For Chain Store
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 Small Pixel Pitch LED Screen COB 600x337.5 Mm Cabinet For Chain Store | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Size: | 600x337.5mm |
| Maintenance: | Front/Rear Service | Brightness: | 600-800nits |
| LED Type: | COB | Cabinet Weight: | 4.6kg |
| Refresh Rate: | ＞3840Hz | Durability: | 100000 Hours |
| Highlight: | P0.9 Small Pixel Pitch LED Screen,COB Small Pixel Pitch LED Screen |
||
Product Description
P0.9 Small Pixel Pitch LED Screen COB 600x337.5 mm Cabinet For Chain Store
Product Description:
P0.9 Small Pixel Pitch LED Display COB from VISUAL WORLD is a cutting-edge display solution that brings high-definition visuals to a new level. With a pixel pitch of 0.9mm, this display ensures crisp and detailed imagery, making it ideal for applications that demand fine visual detail and clarity.
Crafted in a compact 600x337.5mm module size, this COB LED display is designed for flexibility and ease of installation. The die-casting aluminum cabinet not only provides a sleek and modern aesthetic but also ensures the durability and lightweight nature of the display.
Features:
- Full flip-chip COB process, protection technology includes: anti-collision, waterproof, moisture-proof, salt spray, (to prevent LED screens from blinding or caterpillar failures caused by lamp tubes getting damp in high-humidity and salt-spray environments) .
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type: | 1/36 |
| maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m2 |
| IP Rating |
Front: IP65 |
| Refresh Rate | >3840Hz |
| Installation Type |
Mounting |
| Gray Scale | 16bit |
| Viewing Angle | H:170°；V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
FAQ:
Q1: Do you provide a warranty for your products?
A1: Yes, we offer a 2-year warranty on all our products.
Q2: Is it possible to print my logo on the product?
A2: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
Q3: Can I place a sample order for the LED screen?
A3: Yes, we welcome sample orders for testing and quality checks. Mixed samples are also acceptable.
Q4: What is your delivery time?
A4: Generally, delivery takes 7–15 days after receiving your deposit. The specific delivery time depends on the order items and quantities.
Q5: What is the control system, and how does it work?
A5: We use the Nova Taurus Series asynchronous control system, which supports cluster play and management. It also allows control via APP, phone, Wi-Fi, iPad, laptop, PC, and cloud. This makes operation very easy and convenient.
