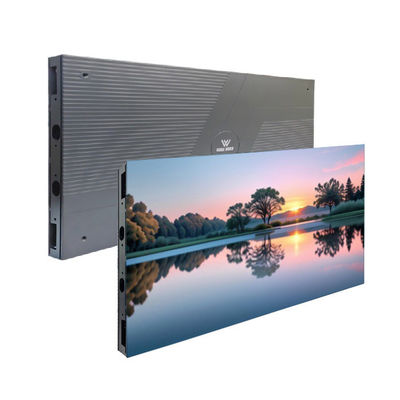

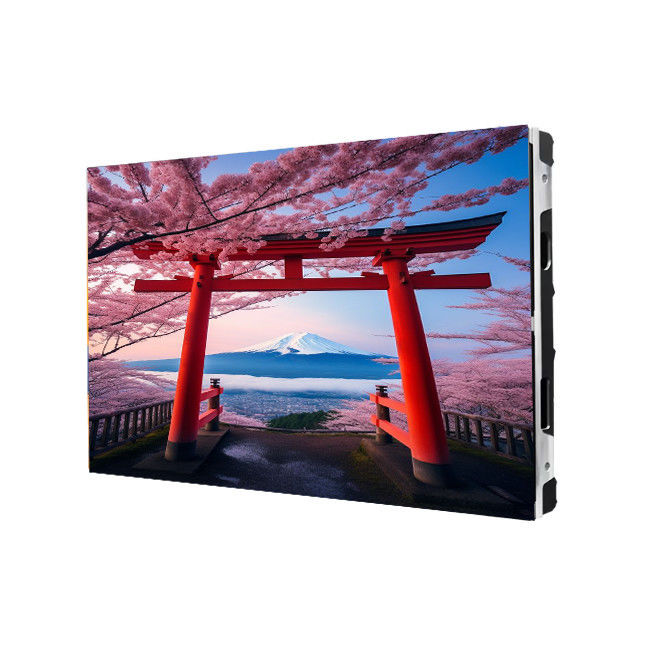

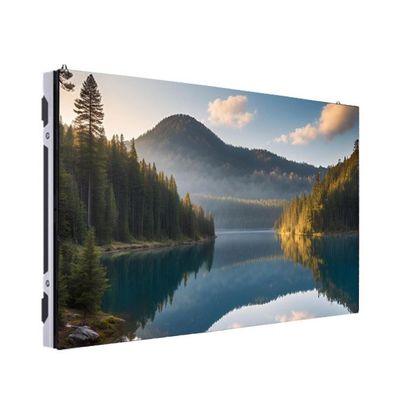

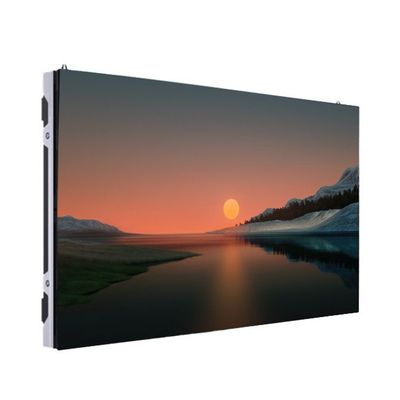

P0.7 COB Small Pixel Pitch LED Display Front Service 600x337.5mm For Speech
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.7 COB Small Pixel Pitch LED Display Front Service 600x337.5mm For Speech | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aluminum | Cabinet Size: | 600x337.5mm |
| Maintenance: | Front Service | LED Type: | COB |
| Cabinet Weight: | 4.6kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | Front Service COB LED Display,Speech COB LED Display,P0.7 COB LED Display |
||
Product Description
P0.7 COB Small Pixel Pitch LED Display Front Service 600x337.5mm For Speech
Product Description:
Introducing our P0.7 COB Small Pixel Pitch Display, engineered to revolutionize visual experiences. This advanced display technology delivers unparalleled performance and efficiency, making it the perfect solution for a wide range of applications, including premium digital signage and immersive virtual reality environments.
Features:
- High Brightness: Brightness up to 1000nits.
- Energy Saving: Energy saving 30%.
- High Reliability: Flip-chip common cathode, better heat dissipation, and more stability.
- Patented Appearance Treatment: No white edge and burrs of the module; light transmittance up to 75% and low temperature.
- High Contrast Ratio: ＞20000: 1.
- High Consistency: Micro LED flip-chip mixed processing technology & same Bin chips.
- Wide Color Gamut: DCI-P3 wide color gamut.
- Easy Installation: Full front maintenance, multiple disassembly, and assembly of LED modules without white edges.
- Various Applications: Support wall-mounted installation, floor-standing, and hanging installation.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP54 Rear: IP30 |
Front: IP54 Rear: IP30 |
Front: IP54 Rear: IP30 |
Front: IP54 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
FAQ:
Q1: Do you provide a warranty for your products?
A1: Yes, we offer a 2-year warranty on all our products.
Q2: Is it possible to print my logo on the product?
A2: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
Q3: Can I place a sample order for the LED screen?
A3: Yes, we welcome sample orders for testing and quality checks. Mixed samples are also acceptable.
Q4: What is your delivery time?
A4: Generally, delivery takes 7–15 days after receiving your deposit. The specific delivery time depends on the order items and quantities.
Q5: What is the control system, and how does it work?
A5: We use the Nova Taurus Series asynchronous control system, which supports cluster play and management. It also allows control via APP, phone, Wi-Fi, iPad, laptop, PC, and cloud. This makes operation very easy and convenient.
