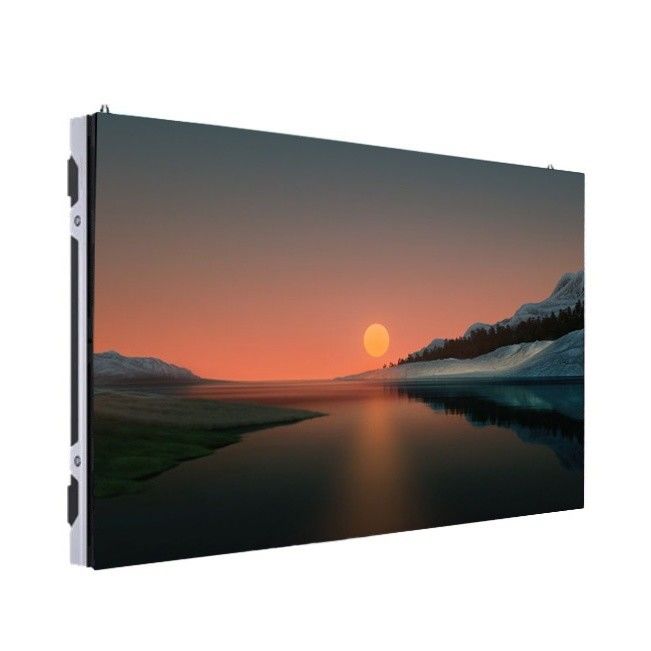

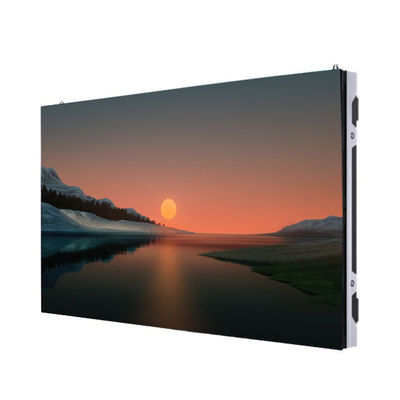

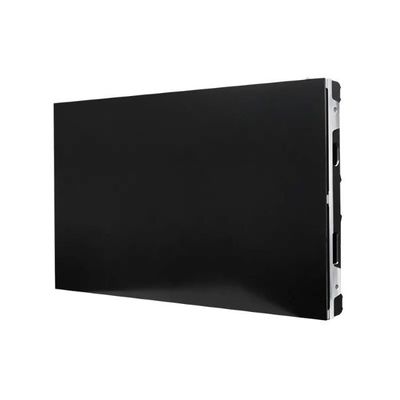

P0.9 Small Pixel Pitch LED Display COB Die-casting Aluminum Cabinet Front Service
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 Small Pixel Pitch LED Display COB Die-casting Aluminum Cabinet Front Service | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Cabinet Size: | 600x337.5mm |
| Maintenance: | Front Service | Brightness: | 600-800nits |
| Refresh Rate: | ＞3840Hz | Durability: | 100000 Hours |
| Highlight: | P0.9 Small Pixel Pitch LED Display,Aluminum Cabinet Small Pixel LED Display |
||
Product Description
P0.9 Small Pixel Pitch LED Display COB Die-casting Aluminum Cabinet Front Service
Product Description:
Features:
- The complete flip-chip COB process incorporates protective technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance. These features safeguard LED screens against blinding or malfunction caused by damp conditions in high-humidity and salt-spray environments.
- The module employs 3D ink printing technology, which improves contrast by 20% and reduces the need for higher display brightness. It also includes an LCD status display panel for user-friendly, real-time cabinet operation monitoring.
- Its PCB design features an HDI multi-layer circuit board, ensuring consistent color uniformity and even temperature distribution. The series integrates Sunrise’s energy-efficient common cathode chip, providing superior performance with up to 16-bit grayscale levels.
Technical Parameters:
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type: | 1/36 |
| maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m² |
| IP Rating |
Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type |
Mounting / Hanging / Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°；V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Our service system is comprehensive and well-structured, designed to meet customer needs at every stage.
Pre-sale services include prompt responses to inquiries within 24 hours, market research and forecasts, customized solutions tailored to specific requirements, and the provision of data sheets and samples. Additionally, we offer value-added services such as custom packaging and arrangements for factory visits.
In-sale services ensure continuous monitoring of production progress, provision of photos and videos upon request, and free spare parts to enhance the customer experience.
After-sales support includes addressing complaints within 24 hours and providing maintenance guidance and solutions within 48 hours. We also offer a 24-month warranty, free technical training, and a complete set of documents, including an installation guide, software manual, maintenance guide, and a control system software CD.
FAQ:
Q1: Do you offer customized services?
A1: Yes, we can design a wide range of product categories customized to meet your specific requirements.
Q2: Can our logo be printed on the LED screen product?
A2: Absolutely! We can print your logo on the product as requested.
Q3: Is it possible to order a sample of the LED display screen?
A3: We warmly welcome you to order a sample for testing and quality evaluation. You can select any item that interests you.
Q4: What is the shipping cost?
A4: The shipping cost varies based on the screen size and project details provided in your inquiry.
Q5: How much does the screen cost per square meter?
A5: Kindly send us your inquiry, and our professional sales engineers will provide you with the most suitable solutions and pricing.
