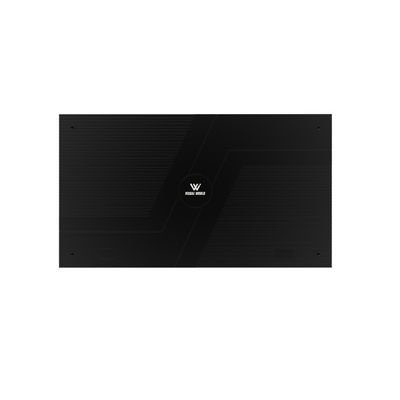

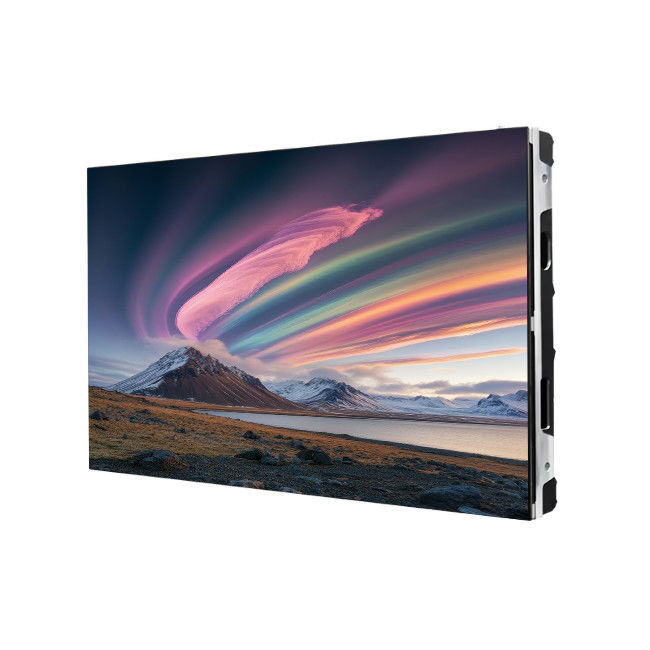

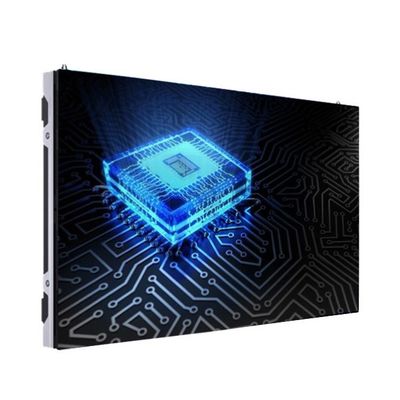

P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aluminum | Cabinet Size: | 600x337.5mm |
| Maintenance: | Front Service | LED Type: | COB |
| Cabinet Weight: | 4.6kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | 4.6kg Small Pitch LED Display,P0.7 COB Small Pitch LED Display |
||
Product Description
P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet
Product Description:
Introducing our cutting-edge COB Small Pixel Pitch Display, designed to redefine visual experiences. This innovative display technology boasts superior performance and efficiency, which is ideal for various applications, from high-end digital signage to immersive virtual reality experiences.
Features:
- The full flip-chip COB process integrates cutting-edge protection technologies, including anti-collision, waterproofing, moisture resistance, and salt-spray protection. These features effectively mitigate problems like LED screen blindness or caterpillar defects caused by exposure to high humidity or salt-laden environments.
- This module incorporates 3D ink printing technology, which boosts contrast by 20% and reduces the brightness requirements for display.
- A built-in LCD status display panel provides users with real-time insights into the cabinet’s operational status.
- The PCB design features an HDI multi-layer circuit structure, ensuring uniform color representation and stable temperature management.
- The series adopts Sunrise’s energy-efficient common cathode chips, delivering exceptional performance with grayscale levels of up to 16 bits.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
FAQ:
Q1: What control system is used, and how does it work?
A1: We use the Nova Taurus Series asynchronous control system, which supports cluster playback and management. You can easily control it via various devices, including APP, smartphone, Wi-Fi, iPad, laptop, PC, or through cloud control. It's very user-friendly and convenient.
Q2: Can I place a sample order for an LED screen?
A2: Yes, we encourage sample orders for testing and quality evaluation. Mixed samples are also accepted.
Q3: What kind of led display we provide?
A3: We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice.
Q4: Do your led display comply with international certification standards?
A4: Yes, our led display comply with various international certification standards, such as CE certification, RoHS
certification, FCC certification, and so on.
Q5: Do you support custom design and customization requests for your led display?
A5: Yes, we can provide custom design and customization production according to customers' needs to meet their special
requirements and demands.
Q6: How about the warranty?
A6: 2 years warranty.
