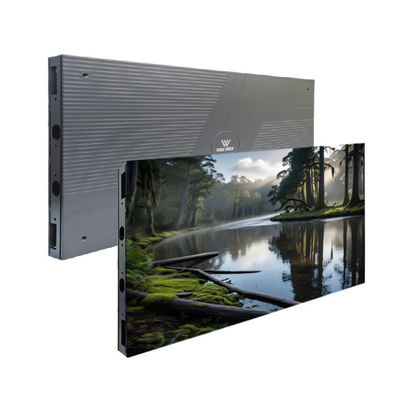

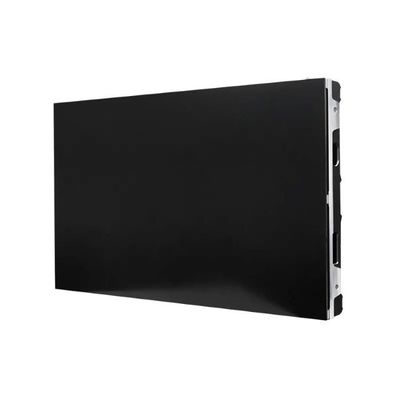

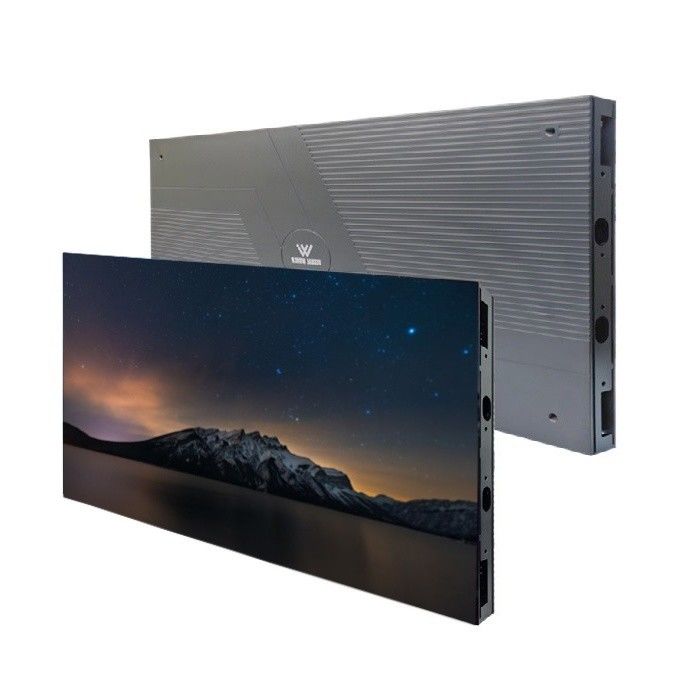

P0.7 COB Small Pixel Pitch LED Display Front Service High Brightness For Showing
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.7 COB Small Pixel Pitch LED Display Front Service High Brightness For Showing | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aluminum | Cabinet Size: | 600x337.5mm |
| Maintenance: | Front Service | LED Type: | COB |
| Cabinet Weight: | 4.6kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | P0.7 COB LED Display,High Brightness COB LED Display,Front Service COB LED Display |
||
Product Description
P0.7 COB Small Pixel Pitch LED Display Front Service High Brightness For Showing
Product Description:
Introducing our cutting-edge COB Small Pixel Pitch Display, designed to redefine visual experiences. This innovative display technology boasts superior performance and efficiency, which is ideal for various applications, from high-end digital signage to immersive virtual reality experiences.
Features:
- The full flip-chip COB process integrates cutting-edge protection technologies, including anti-collision, waterproofing, moisture resistance, and salt-spray protection. These features effectively mitigate problems like LED screen blindness or caterpillar defects caused by exposure to high humidity or salt-laden environments.
- This module incorporates 3D ink printing technology, which boosts contrast by 20% and reduces the brightness requirements for display.
- A built-in LCD status display panel provides users with real-time insights into the cabinet’s operational status.
- The PCB design features an HDI multi-layer circuit structure, ensuring uniform color representation and stable temperature management.
- The series adopts Sunrise’s energy-efficient common cathode chips, delivering exceptional performance with grayscale levels of up to 16 bits.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Our comprehensive service system is designed to cater to your needs at every stage.
Pre-sale services include prompt responses to inquiries within 24 hours, market research and forecasts, customized solutions tailored to your requirements, and the provision of data sheets and samples. We also offer additional services such as custom packing and arranging factory visits.
In-sale process, we ensure continuous monitoring of production, provide photos and videos upon request, and include free spare parts to enhance your experience.
After-sales support, we address complaints within 24 hours and offer maintenance guidance and solutions within 48 hours. A 24-month warranty, free technician training, and a complete set of documents, including an installation guide, software manual, maintenance guide, and control system software CD back our services.
FAQ:
Q1: What is the control system? How is it?
A1: We use the Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for the led screen?
A2: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q3:Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and confirm the design first based on our sample.
Q4: Do you offer a guarantee for the products?
A4: Yes, we offer 2 years warranty on our products.
Q5. How about your delivery time?
A5: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
