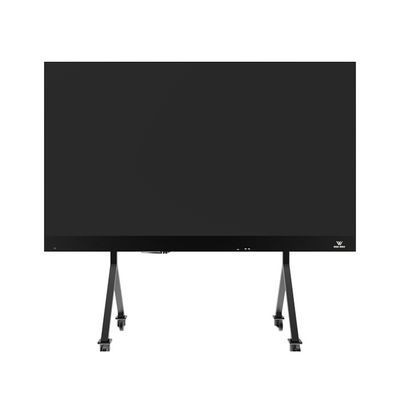

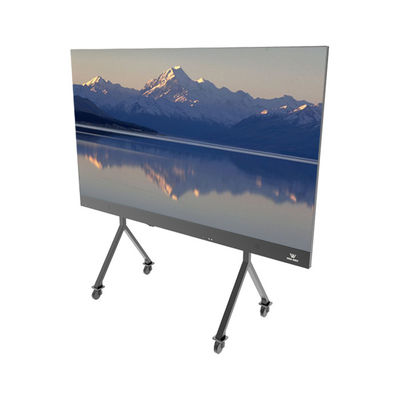

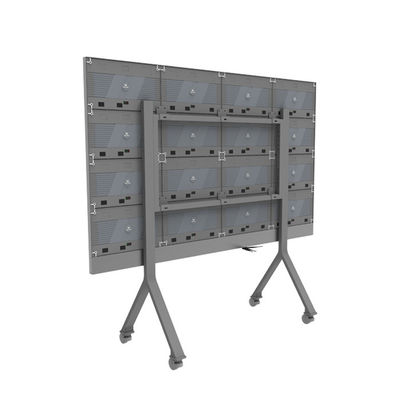

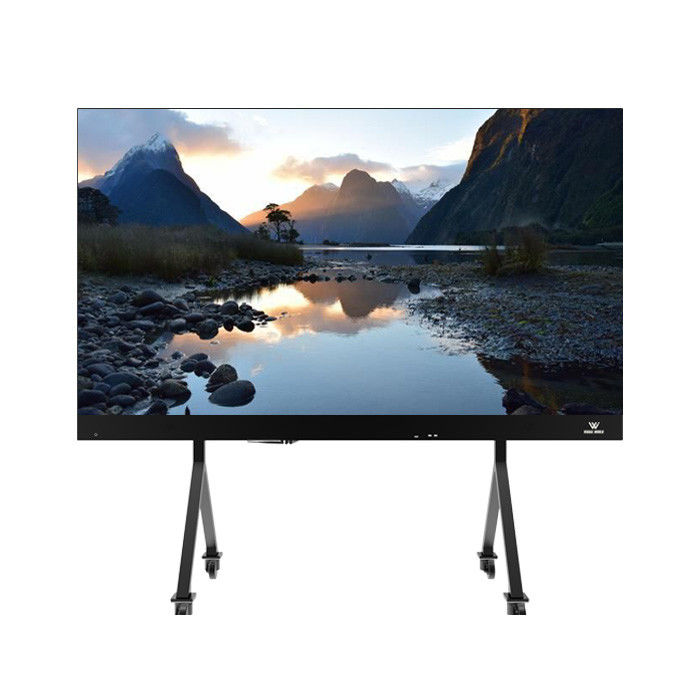

P0.7 Smart LED Poster Display All-in-one Die-casting Aluminum 600*337.5
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P0.7 Smart LED Poster Display All-in-one Die-casting Aluminum 600*337.5 | Pixel Pitch: | 0.7mm,0.9mm,1.25mm,1.56mm |
|---|---|---|---|
| Display Size: | 2400*1350mm | LED Type: | COB |
| Cabinet Dimension: | 600*337.5 | Cabinet Material: | Die-casting Aluminum |
| Maintenance: | Front Service | Display Ratio: | 16:9 |
| Highlight: | P0.7 Smart LED Poster Display,600*337.5 Smart LED Poster Display |
||
Product Description
P0.7 Smart LED Poster Display All-in-one Die-casting Aluminum 600*337.5
PRODUCT DESCRIPTION
P0.7 Smart LED Poster Display COB is a cutting-edge display solution for various applications, including conferences, exhibitions, and advertising. With a pixel pitch of 0.7mm, this 108-inch display offers incredibly detailed imagery and vibrant colors, making it ideal for capturing attention in any setting.
FEATURES
- Ultra-thin
Easy+no need install, work like a big TV.
- Adjustable height
Suitable for more scenes.
- Wireless screen sharing
Supports wireless screen sharing on Windows, Mac OS, iOS, and Android systems
-
File management
It supports file management and playback, management file deletion can be single-selected or all-selected, and files can be classified into pictures, music, videos, etc.
TECHNICAL SPECIFICATIONS
| Model | CrystalTV 108”(4X4) | |||
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
|
Cabinet Dimension (mm) |
600*337.5 | 600*337.5 | 600*337.5 | 600*337.5 |
| Module Size(mm) | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
| LED Type | COB | COB | COB | COB |
| Display Size(mm) | 2400*1350 | 2400*1350 | 2400*1350 | 2400*1350 |
| Display Resolution | 3072*1728 | 2560*1440 | 1920*1080 | 1536*864 |
|
Display Ratio |
16:9 | 16:9 | 16:9 | 16:9 |
| Cabinet Weight |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/40 | 1/60 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-800 nits | 0-800 nits | 1000 nits |
|
Max Power Avg Power |
196W/m² 65W/m² |
280W/m² 95W/m² |
330W/m² 110W/m² |
330W/m² 100W/m² |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°V:170° | H:170°V:170° | H:170°V:170° | H:170°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
| Input Interface | HDMI2.0 | |||
| Output Interface | HDMI2.0, AUDIO, SPDIF | |||
| hardware configuration | CPU(Cortex A76X4+A55X4) | |||
| RAM(DDR4 4GB) | ||||
| GPU(MailG610) | ||||
| ROM(32G eMMC5.1) | ||||
APPLICATION
- Conference room
- Lecture theater
- Multimedia room
- Educational establishment
- Telemedicine
Pre-Sale Services:
- Prompt responses to inquiries within 24 hours.
- Market analysis and forecasting assistance.
- Tailored solutions to meet specific customer requirements.
- Provision of data sheets and product samples.
- Additional support, including custom packaging and factory tours.
In-Sale Services:
- Ongoing monitoring of the production process.
- Production updates with photos and videos upon request.
- Complimentary spare parts included.
After-Sale Services:
- Resolution of complaints within 24 hours.
- Maintenance support and solutions provided within 48 hours.
- 24-month warranty coverage.
- Free technician training sessions.
- Complimentary documentation, including installation guides, software manuals, maintenance guides, and control system software CDs.
FAQ
Q1: What control system is used, and how does it work?
A1: We use the Nova Taurus Series asynchronous control system, which supports cluster playback and management. You can easily control it via various devices, including APP, smartphone, Wi-Fi, iPad, laptop, PC, or through cloud control. It's very user-friendly and convenient.
Q2: Can I place a sample order for an LED screen?
A2: Yes, we encourage sample orders for testing and quality evaluation. Mixed samples are also accepted.
Q3: What kind of led display we provide?
A3: We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice.
Q4: Do your led display comply with international certification standards?
A4: Yes, our led display comply with various international certification standards, such as CE certification, RoHS
certification, FCC certification, and so on.
Q5: Do you support custom design and customization requests for your led display?
A5: Yes, we can provide custom design and customization production according to customers' needs to meet their special
requirements and demands.
Q6: How about the warranty?
A6: 2 years warranty.
