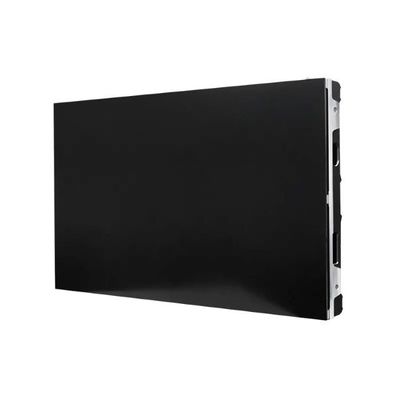

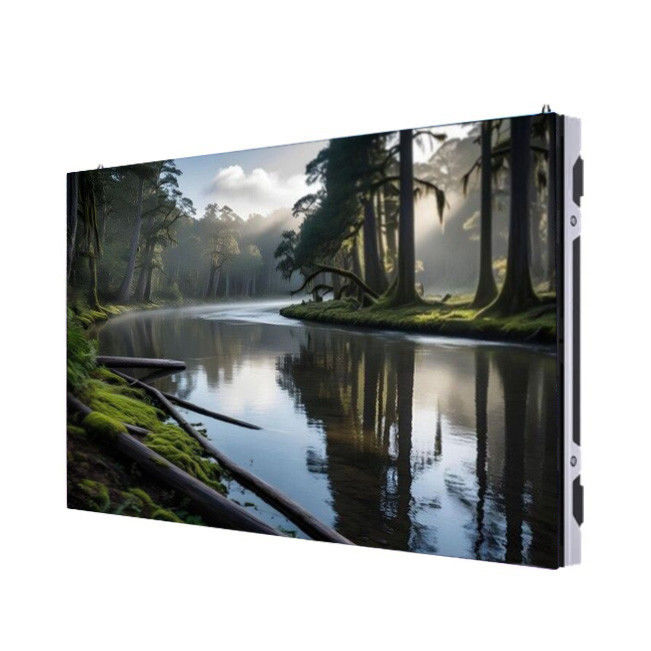

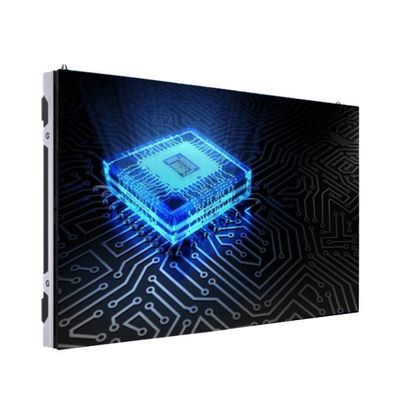

P0.9 Small Pixel Pitch LED Display COB 600x337.5mm Low Energy Consumption Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 Small Pixel Pitch LED Display COB 600x337.5mm Low Energy Consumption Cabinet | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Size: | 600x337.5mm |
| Maintenance: | Front/Rear Service | Brightness: | 600-800nits |
| Refresh Rate: | ＞3840Hz | Durability: | 100000 Hours |
| Highlight: | COB Small Pixel Pitch LED Display,P0.9 Small Pixel Pitch LED Display |
||
Product Description
P0.9 Small Pixel Pitch LED Display COB 600x337.5mm Low Energy Consumption Cabinet
Product Description:
Features:
- The complete flip-chip COB process incorporates protective technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance. These features safeguard LED screens against blinding or malfunction caused by damp conditions in high-humidity and salt-spray environments.
- The module employs 3D ink printing technology, which improves contrast by 20% and reduces the need for higher display brightness. It also includes an LCD status display panel for user-friendly, real-time cabinet operation monitoring.
- Its PCB design features an HDI multi-layer circuit board, ensuring consistent color uniformity and even temperature distribution. The series integrates Sunrise’s energy-efficient common cathode chip, providing superior performance with up to 16-bit grayscale levels.
Technical Parameters:
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type: | 1/36 |
| maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m2 |
| IP Rating |
Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type |
Mounting / Hanging / Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°；V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Pre-Sale Services:
- Prompt responses to inquiries within 24 hours.
- Market analysis and forecasting assistance.
- Tailored solutions to meet specific customer requirements.
- Provision of data sheets and product samples.
- Additional support, including custom packaging and factory tours.
In-Sale Services:
- Ongoing monitoring of the production process.
- Production updates with photos and videos upon request.
- Complimentary spare parts included.
After-Sale Services:
- Resolution of complaints within 24 hours.
- Maintenance support and solutions provided within 48 hours.
- 24-month warranty coverage.
- Free technician training sessions.
- Complimentary documentation, including installation guides, software manuals, maintenance guides, and control system software CDs.
FAQ:
Q1: Do you offer customized services?
A1: Yes, we can design various product categories tailored to your requirements.
Q2: Can our logo be printed on the LED screen product?
A2: Yes, we can print your logo as per your request.
Q3: Is it possible to order a sample of the LED display screen?
A3: We sincerely welcome you to order a sample to test and evaluate the quality. You can choose any item that interests you.
Q4: What is the shipping cost?
A4: The shipping cost depends on the screen size and project details provided in your inquiry.
Q5: How much does the screen cost per square meter?
A5: Please send us your inquiry, and our professional sales engineers will provide you with the best solutions.
Q6: Do you provide a warranty for the products?
A6: Yes, we offer a two-year warranty for all our products.
