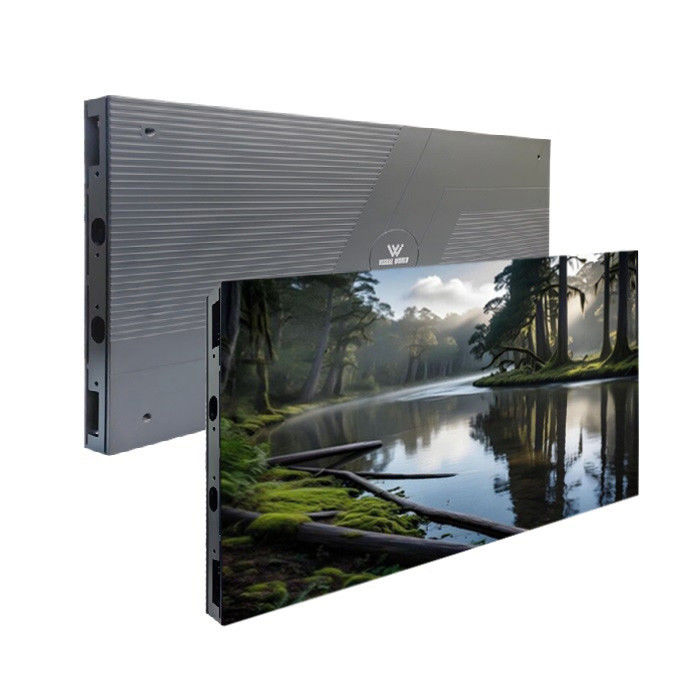

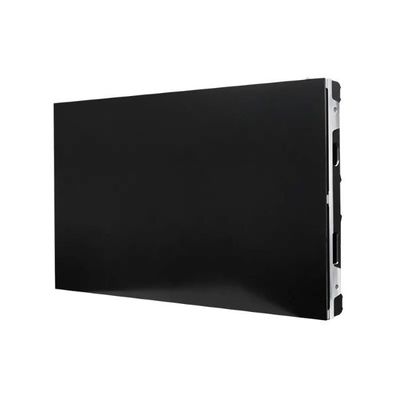

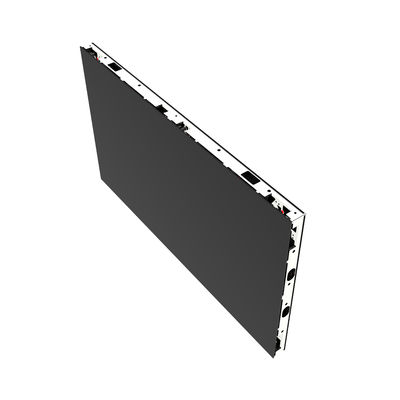

P0.7 COB Small Pixel Pitch LED Display 600x337.5mm Die-casting Aluminum Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.7 COB Small Pixel Pitch LED Display 600x337.5mm Die-casting Aluminum Cabinet | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aluminum | Cabinet Size: | 600x337.5mm |
| Maintenance: | Front Service | LED Type: | COB |
| Cabinet Weight: | 4.6kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | P0.7 COB LED Display,Die-casting Aluminum COB LED Display,600x337.5mm COB LED Display |
||
Product Description
P0.7 COB Small Pixel Pitch LED Display 600x337.5mm Die-casting Aluminum Cabinet
Product Description:
Introducing our cutting-edge COB Small Pixel Pitch Display, designed to redefine visual experiences. This innovative display technology boasts superior performance and efficiency, which is ideal for various applications, from high-end digital signage to immersive virtual reality experiences.
Features:
- The full flip-chip COB process incorporates advanced protection technologies, including anti-collision, waterproofing, moisture-proofing, and salt spray resistance. These features prevent issues such as LED screen blindness or caterpillar failures caused by dampness in high-humidity or salt-spray environments.
- The module employs 3D ink printing technology, enhancing contrast by 20% while lowering display brightness requirements.
- An integrated LCD status display panel allows users to easily monitor the real-time operational status of the cabinet.
- The module’s PCB uses an HDI multi-layer circuit board design, ensuring excellent color uniformity and consistent temperature distribution.
- The entire series utilizes Sunrise's energy-efficient common cathode chips, offering superior performance with grayscale levels reaching up to 16 bits.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Pre-Sale Services:
- Prompt responses to inquiries within 24 hours.
- Market analysis and forecasting assistance.
- Tailored solutions to meet specific customer requirements.
- Provision of data sheets and product samples.
- Additional support, including custom packaging and factory tours.
In-Sale Services:
- Ongoing monitoring of the production process.
- Production updates with photos and videos upon request.
- Complimentary spare parts included.
After-Sale Services:
- Resolution of complaints within 24 hours.
- Maintenance support and solutions provided within 48 hours.
- 24-month warranty coverage.
- Free technician training sessions.
- Complimentary documentation, including installation guides, software manuals, maintenance guides, and control system software CDs.
FAQ:
Q1: What is the control system? How is it?
A1: We use the Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for the led screen?
A2: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q3:Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and confirm the design first based on our sample.
Q4: Do you offer a guarantee for the products?
A4: Yes, we offer 2 years warranty on our products.
Q5. How about your delivery time?
A5: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
