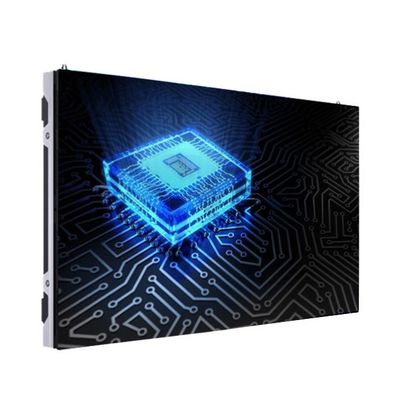

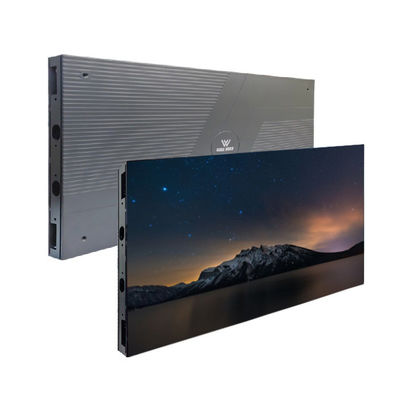

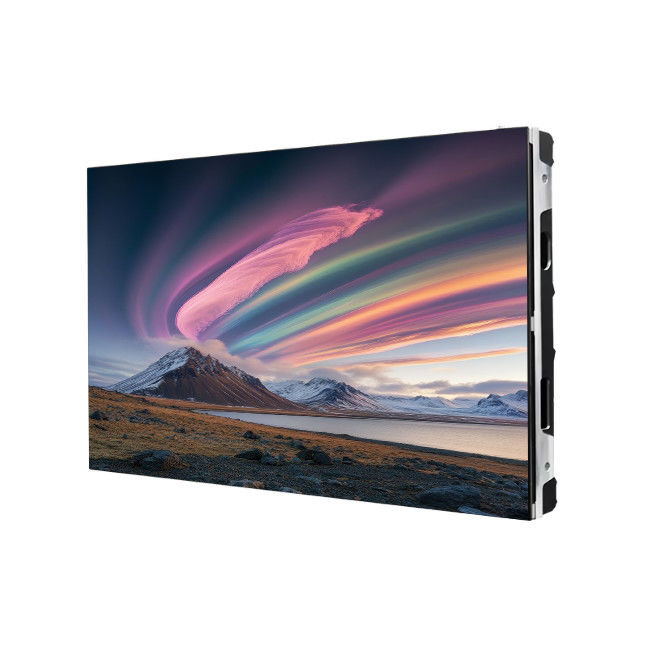

P0.9 Small Pixel Pitch LED Display COB Die-casting Aliuminum Front Service
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 Small Pixel Pitch LED Display COB Die-casting Aliuminum Front Service | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Size: | 600x337.5mm |
| Maintenance: | Front/Rear Service | Brightness: | 600-800nits |
| Refresh Rate: | ＞3840Hz | Durability: | 100000 Hours |
| Highlight: | Front Service LED Display,P0.9 Small Pixel Pitch LED Display,COB Die-casting LED Display |
||
Product Description
P0.9 Small Pixel Pitch LED Display COB Die-casting Aliuminum Front Service
Product Description:
Features:
- The complete flip-chip COB process incorporates protective technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance. These features safeguard LED screens against blinding or malfunction caused by damp conditions in high-humidity and salt-spray environments.
- The module employs 3D ink printing technology, which improves contrast by 20% and reduces the need for higher display brightness. It also includes an LCD status display panel for user-friendly, real-time cabinet operation monitoring.
- Its PCB design features an HDI multi-layer circuit board, ensuring consistent color uniformity and even temperature distribution. The series integrates Sunrise’s energy-efficient common cathode chip, providing superior performance with up to 16-bit grayscale levels.
Technical Parameters:
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type: | 1/36 |
| maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m2 |
| IP Rating |
Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type |
Mounting / Hanging / Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°；V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Pre-sale service:
- Inquiries answered within 24 hours.
- Market research and forecasts.
- Customized solutions based on customer needs.
- Data sheets and samples provided.
- Additional services like custom packing and factory visits.
In-sale service:
- Continuous monitoring of production.
- Photos and videos of production upon request.
- Free spare parts.
After-sale service:
- Complaints addressed within 24 hours.
- Maintenance guidance and solutions within 48 hours.
- 24-month warranty.
- Free technician training.
- Free documents: installation guide, software manual, maintenance guide, and control system software CD.
FAQ:
Q1: What kind of led display we provide?
A1: We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice.
Q2: Do your led display comply with international certification standards?
A2: Yes, our led display comply with various international certification standards, such as CE certification, RoHS
certification, FCC certification, and so on.
Q3: Do you support custom design and customization requests for your led display?
A3: Yes, we can provide custom design and customization production according to customers' needs to meet their special
requirements and demands.
Q4: How Can We Guarantee Quality?
A4: Seven quality control steps ensure your ordered screens good:
1).Our customers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.
Q5: How about the warranty?
A5: 2 years warranty.
