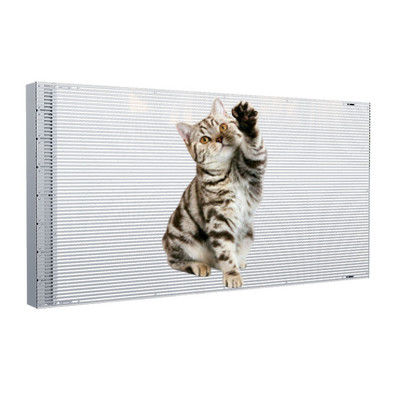

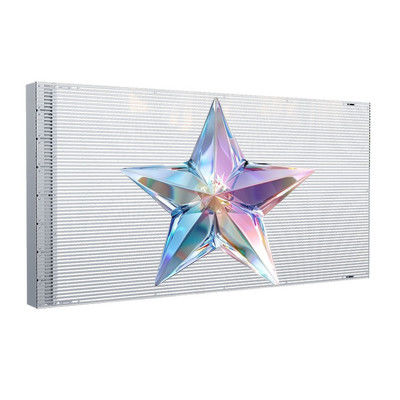

P3.9 P6.25 Indoor Holographic Transparent LED Display 70% Transparency
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | Indoor Holographic Transparent LED DIsplay |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case, Carton Box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Product Name: | P3.9 P6.25 Indoor Holographic Transparent LED Display 70% Transparency | LED Type: | SMD 1415 |
|---|---|---|---|
| Brightness: | 1000 —— 5000 Nits | Viewing Angle: | H:140° V:140° |
| Cabinet Weight: | 6 KG/㎡ | IP Rating: | IP 42 |
| Operation Temperature: | -10℃ —— 40 ℃ | OPeration Humidity: | 35% —— 85% |
| Max/Avg Power Consumption: | 800 / 240 W/㎡ | Life Span: | 10,000 Hours |
| Highlight: | Holographic Transparent LED Display,P6.25 Holographic Transparent LED Display,Indoor Holographic Transparent LED Display |
||
Product Description
P3.9 P6.25 Indoor Holographic Transparent LED Display 70% Transparency
Product Description
The P3.9 P6.25 Indoor Holographic Transparent LED Display is the perfect blend of futuristic technology and practical design. Engineered with a 70% transparency rate, this display offers unparalleled visual clarity while maintaining the ability to see through the screen.
Product Feature
High-Transparency Visuals
- Transparency rate: 66.7% (P3.9) and 70% (P6.25), offering clear, holographic visuals while preserving see-through capability.
Pixel Pitch and Resolutions
- Pixel pitch options: P3.9 for finer detail and P6.25 for broader coverage.
- Module resolutions of up to 384 × 32 dots for P3.9 and 288 × 16 dots for P6.25 deliver sharp image clarity.
Wide Viewing and Installation Adaptability
- Optimal viewing distances: 4 meters (P3.9) and 6 meters (P6.25) ensure engaging visuals for close and medium ranges.
- Lightweight and modular design (cabinet weight: 6 kg/m²) simplifies installation on glass walls or frames.
Superior Brightness and Energy Efficiency
- Brightness ranges between 1000–5000 nits/m², ensuring vivid images in various indoor lighting conditions.
- Operates with a power consumption of 800W/m² (max) and 240W/m² (average) for energy savings.
Robust Durability
- IP Rating: IP42, providing resistance against dust and moisture.
- Operating temperature range: -10°C to 40°C, suitable for diverse environments.
Advanced LED Technology
- LED type: SMD 1415 with a 10,000-hour lifespan, ensuring long-term performance.
- 16-bit gray scale for rich color depth and seamless transitions.
Flexible Cabinet and Module Sizes
- Multiple module and cabinet size options:
- Modules: 375/750/1125/1500 × 125mm (P3.9), 600/1200/1800 × 100mm (P6.25).
- Cabinets: 375/750/1125/1500 × 500mm (P3.9), 600/1200/1800 × 500/600/700/800mm (P6.25).
Product Technical Parameters
| Product Type | Indoor Holog Transparent LED Display | |
| Pixel Pitch | P3.9 | P6.25 |
| LED Type | SMD 1415 | |
| Life Span | 10,000 hours | |
| Transpare Rate | <66.7% | <70% |
| Viewing Distance | 4m | 6m |
|
Module Size |
375/750/1125/1500 *125mm | 600/1200/1800 *100mm |
| Module Resolution | 96/192/288/384 * 32dot | 96/192/288 * 16 dot |
| Cabinet Size | 375/750/11251500 * 500mm | 600/1200/1800 * 500/600/700/800 |
| Cabinet Resolution | 96/192/288/384 * 128 dot | 96/192/288 * 80/96/112/128 dot |
| Cabinet Weight | 6 KG/㎡ | |
| Operationg Power | AC :100-240V 50/60HZ | |
| Max / Avg Power Consumption | 800/240 W/㎡ | |
| Gray Scale | 16BIt | |
| Brightness | 1000 —— 5000 nits/㎡ | |
| Operation Humidity | 35% —— 85% | |
| OPeration Temperature | -10 ℃ —— 40℃ | |
| IP Rating | IP 42 | |
Product Application
