P1.875 Flexible LED Display Screen SMD1515 240*120mm Bendable Module For Showing
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.875 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.875 Flexible LED Display Screen SMD1515 240*120mm Bendable Module For Showing | Pixel Pitch: | P1.25,P1.579,P1.667,P1.875,P2,P2.5,P3,P4 |
|---|---|---|---|
| Module Size: | 240*120 Mm | Curved Angle: | 110°-180° |
| Cabinet Material: | Steel Cabinet With Painting | Module Weight: | 0.2kg |
| Brightness: | 600-1000 Nits | Maintenance: | Magnets Front Service |
| Highlight: | SMD1515 Flexible LED Display Screen,240*120mm Flexible LED Display Screen,Bendable Flexible LED Display Screen |
||
Product Description

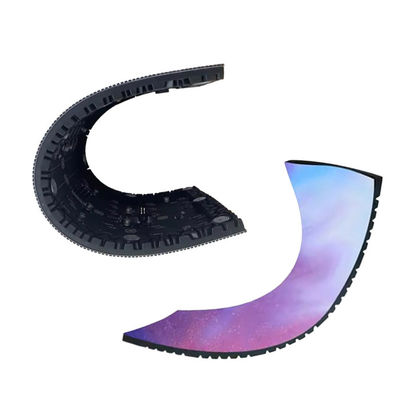

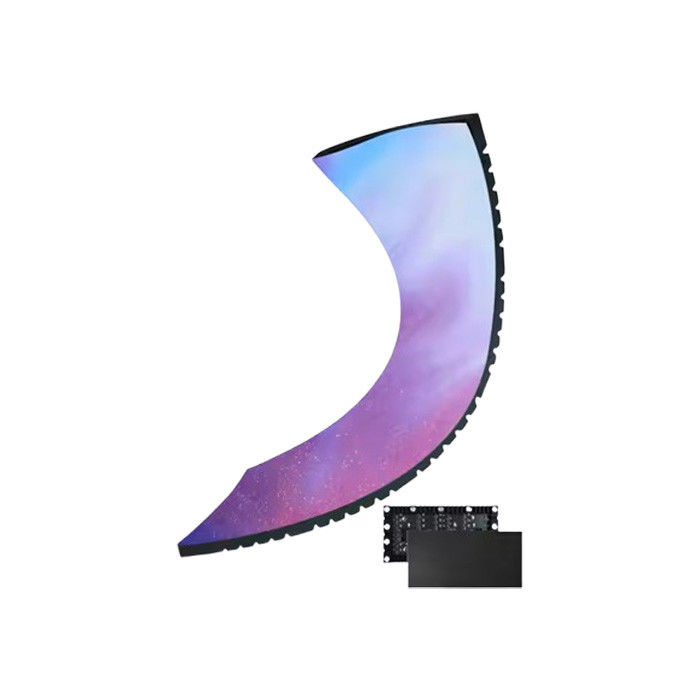

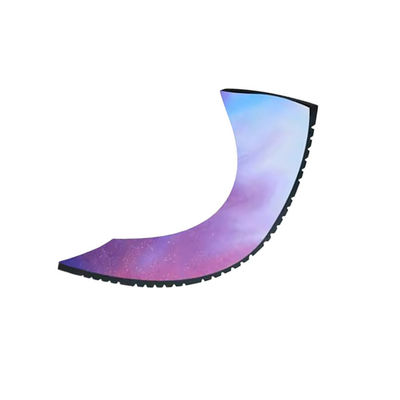

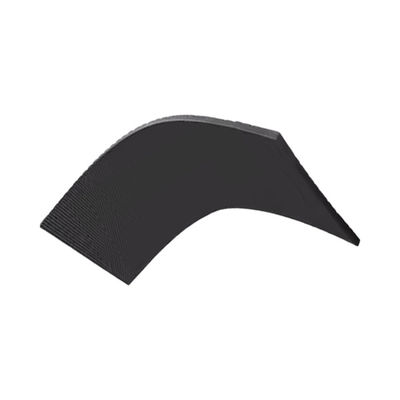

P1.875 Flexible LED Display Screen SMD1515 240*120mm Bendable Module For Showing
Product Description:
The P1.875 Flexible LED Display is an innovative display solution that provides high-definition visuals and versatility for multiple applications. Its 1.875 mm pixel pitch delivers crisp, detailed images ideal for close-up viewing and high-resolution content displays.
Features:
- FLEXIBLE
Soft PCB design can be curved, flexible installation
- CURVED
Curved angle from 110° to 180°, inner and outer curved
-
MULTI-SHAPES AVAILABLE
Flexible modules work for round, convex, concave, S shapes, and other irregular shapes.
-
MAGNETIC FRONT SERVICE
It's a completely front-service system with magnets on the modules. Safety rope can be added to the module for hanging or high installation positions.
Technical Parameters:
| Product Model: | P1.25 | P1.579 | P1.667 | P1.875 |
| Pixel Pitch: | 1.25 mm | 1.579 mm | 1.667 mm | 1.875 mm |
| LED Type: | SMD1010 |
SMD1212 |
SMD1212 | SMD1515 |
| Module Resolution: | 192*96 pixels | 152*76 pixels | 144*72 pixels | 128*64 pixels |
| Module Size: | 240*120mm | 240*120mm | 240*120mm | 240*120mm |
| Module Weight: | 0.215 kg | 0.203 kg | 0.195 kg | 0.216 kg |
| Cabinet Material: | Iron with painting | Iron with painting | Iron with painting | Iron with painting |
| Driving Type: | 1/48 | 1/38 | 1/36 | 1/32 |
| Brightness: | 600-1000 nits | 600-1000 nits | 600-1000 nits | 600-1000 nits |
| Max Power: | 19 w/pcs | 19 w/pcs | 19 w/pcs | 19 w/pcs |
| Maintenance: | Front & Rear service | Front & Rear service | Front & Rear service | Front & Rear service |
| Environment: | Indoor Use | Indoor Use | Indoor Use | Indoor Use |
| IP Rating: | F: IP20, R: IP20 | F: IP20, R: IP20 | F: IP20, R: IP20 | F: IP20, R: IP20 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting / Hanging | Mounting / Hanging | Mounting / Hanging | Mounting / Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Applications:
1. Creative Designs
2. Giant outdoor advertising LED display
3. 360° encompassing LED display screen
Support and service:
We offer full-service support at every stage of engagement.
Pre-Purchase:
You'll comprehensive production instructions and expert guidelines on setting up the equipment.
During Purchase:
We deliver tailored solutions, creative visual designs, and impressive project examples
Post-Purchase:
Enjoy a two-year warranty, a dedicated maintenance staff, prompt support, availability of spare parts, complimentary training, package tracking, and ongoing software updates.
FAQ:
Q1:Is it OK to print my logo on the product?
A1: Yes. Please inform us formally before our production and confirm the design based on our sample.
Q2: What is your best service?
A2: 1: One-to-one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care about the subsequent use of your screen and ensure your after-sales service is well.
Q3. How about your delivery time?
A3: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q4:How about your Warranty Term?
A4: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have a professional after-sale team to solve any questions after you place an order. And your exclusive sales engineer will also help you get over any problems.
Q5: What is the price per square meter of screen?
A5: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q6: Do you offer a guarantee for the products?
A6: Yes, we offer 2 years warranty on our products.
