Outdoor Flexible LED Display with Maximum Bending Degree 75°,IP68 And High Refresh Rate
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | P3.8 P6.67 P8 P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case, Carton box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Product Name: | Outdoor Flexible LED Display With Maximum Bending Degree 75° And IP68 Waterproof Dustproof | Pixel Pitch: | 3.81mm / 6.67mm / 8mm / 10mm |
|---|---|---|---|
| LED Type: | SMD | Cabinet DImension: | 640mm * 640mm / 640mm *960mm |
| Module Size: | 320mm * 320mm | Cabinet Weight: | 17KG /25KG |
| Max/Avg Power: | 700/210 W/㎡ | IP Rating: | IP68 |
| Brightness: | 5000 - 6000 Nits | ||
| Highlight: | IP68 Flexible LED Display |
||
Product Description
Outdoor Flexible LED Display with Maximum Bending Degree 75° and IP68 Waterproof Dustproof
Product Description
Our Outdoor Flexible LED Display offers a 75° bending capacity, allowing it to adapt seamlessly to curved surfaces. With an IP68 waterproof rating and high refresh rate, it ensures vibrant, flicker-free visuals even in harsh weather, making it perfect for creative outdoor installations and impactful advertising.
Product Features
- High Resolution: Available in various pixel pitches (P3.81, P6.67, P8, P10) for high-resolution displays.
- High Brightness: 5000-6000 nits brightness for excellent visibility in outdoor environments.
- IP68 Waterproof Rating: Protection against dust and water ingress for reliable outdoor operation.
- High Refresh Rate: Over 3840 Hz refresh rate for smooth, clear images without motion artifacts.
- Wide Operating Temperature Range: -20°C to +60°C for operation in various climates.
Technical Parameters
| Product Model | P3.81 | P6.67 | P8 | P10 |
| Pixel Pitch | 3.81mm | 6.67mm | 8mm | 10mm |
| LED Type | SMD 1921 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension | 640*640/960 mm | 640*640/960 mm | 640*640/960 mm | 640*640/960 mm |
| Module Size | 320* 320 mm | 320* 320 mm | 320* 320 mm | 320* 320 mm |
| Cabinet Weight | 25/17 KG | 25/17 KG | 25/17 KG | 25/17 KG |
| Cabinet Material | Steel | Steel | Steel | Steel |
| Driving Type | 1/10 | 1/7 | 1/4 | 1/2 |
| Brightness | 5000 - 6000nits | 5000 - 6000nits | 5000 - 6000nits | 5000 - 6000nits |
| Max/Avg Power | 700/210 W/㎡ | 700/210 W/㎡ | 700/210 W/㎡ | 700/210 W/㎡ |
| Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating | IP68 | IP68 | IP68 | IP68 |
| Refesh Rate | >3840HZ | >3840HZ | >3840HZ | >3840HZ |
| Installation Type | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Sacle | 14Bit | 14Bit | 14Bit | 14Bit |
| Viewing Angle | H:120° V:120° | H:120° V:120° | H:120° V:120° | H:120° V:120° |
| Operation Temp | -20° ~ + 60° | -20° ~ + 60° | -20° ~ + 60° | -20° ~ + 60° |
| Operation Humidity | 10% ~ 90 % RH | 10% ~ 90 % RH | 10% ~ 90 % RH | 10% ~ 90 % RH |
Advantage

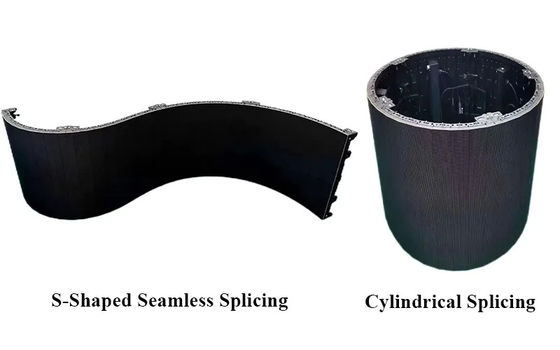

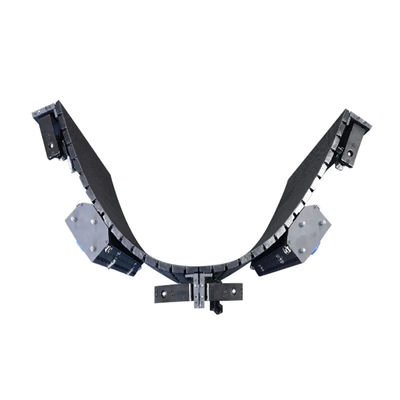

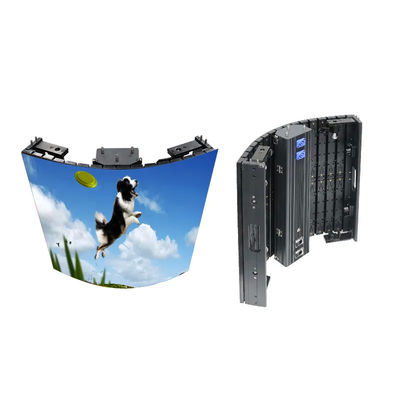

Flexible
High Performance
Q&A
FAQ:
Q1: What control system is used, and how does it work?
A1: We use the Nova Taurus Series asynchronous control system, which supports cluster playback and management. You can easily control it via various devices, including APP, smartphone, Wi-Fi, iPad, laptop, PC, or through cloud control. It's very user-friendly and convenient.
Q2: Can I place a sample order for an LED screen?
A2: Yes, we encourage sample orders for testing and quality evaluation. Mixed samples are also accepted.
Q3: Can I have my logo printed on the product?
A3: Absolutely. Please let us know in advance and confirm the design based on our sample before production begins.
Q4: What is your delivery time?
A4: Typically, delivery takes 7-15 days after the deposit is received. However, the exact time depends on the order size and items.
Q5: What is your warranty policy?
A5: We offer a 2-year warranty. We also provide full support for structure design, installation issues, system troubleshooting, and screen usage.
Our professional after-sales team, along with your dedicated sales engineer, will assist with any questions you may have after your order.
