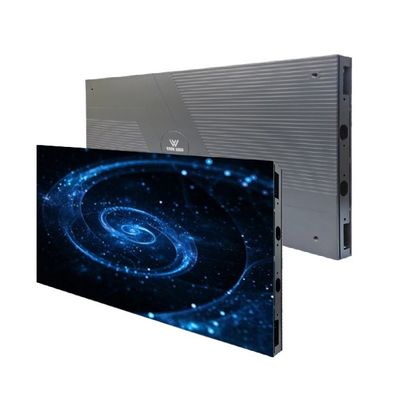

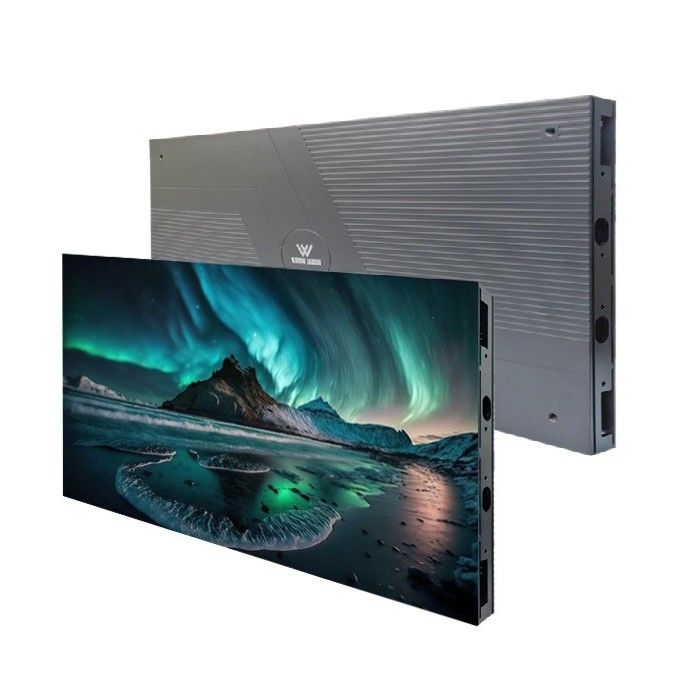

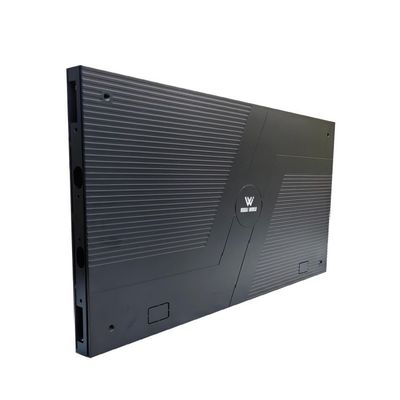

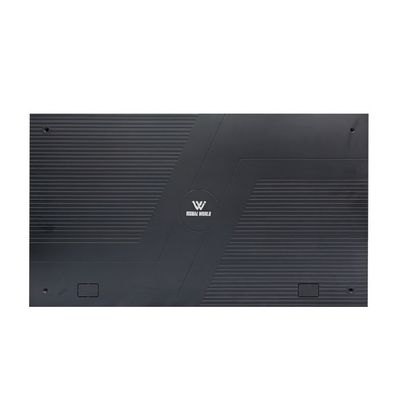

P1.25 Small Pixel Pitch LED Display COB 600x337.5mm High Refresh For Command Center
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Small Pixel Pitch LED Display COB 600x337.5mm High Refresh For Command Center | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Dimension: | 600x337.5mm | Cabinet Weight: | 4.6kg |
| Brightness: | 0-2000nits | Cabinet Material: | Die-casting Aliuminum |
| LED Type: | COB | Maintenance: | Front Service |
| Highlight: | P1.25 Small Pixel Pitch LED Display,COB small pitch led display,Command Center small pitch led display |
||
Product Description
P1.25 Small Pixel Pitch LED Display COB 600x337.5mm High Refresh For Command Center
Product Description:
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Features:
- Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
Advertising publish / retail store / shopping mall / display of dishes / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /
Support and service:
- Pre-Sale Service:
We respond to inquiries within 24 hours. We offer market research and forecasts tailored to the customer's needs, along with personalized, professional solutions. Datasheets and samples are available upon request. Additional services, such as custom packaging design and factory visits, can also be arranged.
- In-Sale Service:
We continuously monitor the production process and provide photos and videos based on customer requests. Spare parts are supplied at no additional cost.
- After-Sale Service:
We respond to complaints within 24 hours, and maintenance guidance or problem resolution is provided within 48 hours. The product comes with a 24-month warranty. Free technician training is available. A full set of documents, including installation instructions, software operation manuals, easy maintenance guides, and control system software CDs, is provided at no cost.
FAQ:
Q1: Can I have a sample order for led screen?
A1: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q2: How to control the LED screen?
A2: We can configure the control system, from Novastar or Colorlight, operation is easy.
Q3: Can you provide installation structures?
A3: Yes, we can provide installation structures for wall-mounted and stacking installation.
Q4: Do you test your LED screen before shipping?
A4: Yes, we do a 100% product aging test for 72 hours before the package and shipping.
Q5: What will you do if we have problems related to installation, configuration, and use?
A5: Our after-sale service team will solve all the problems until the screen can work normally.
