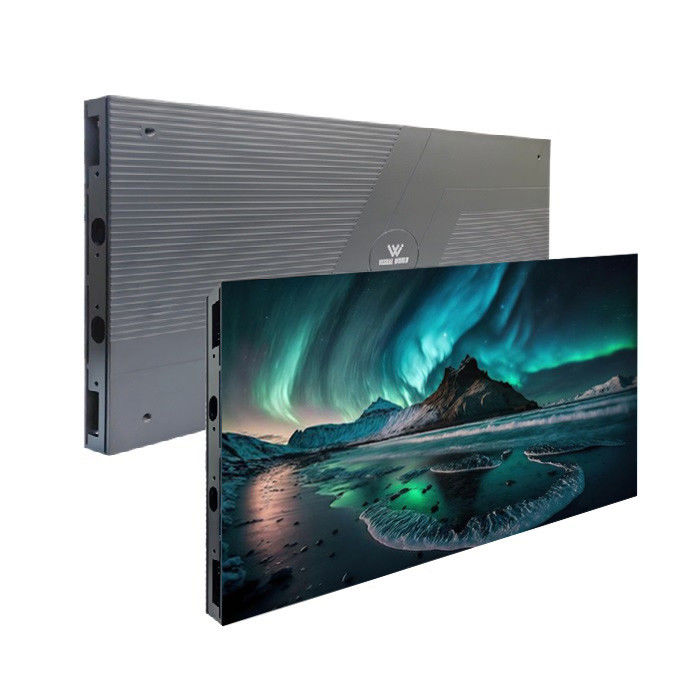

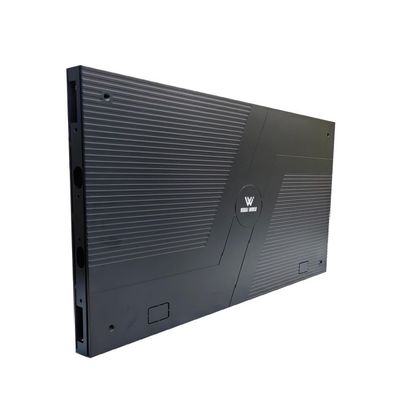

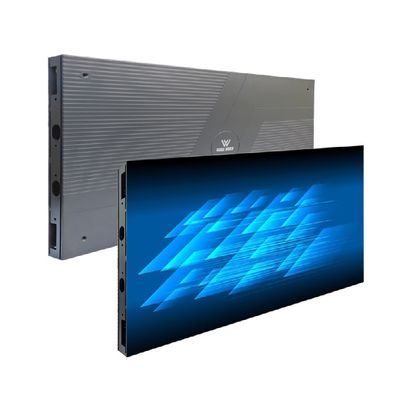

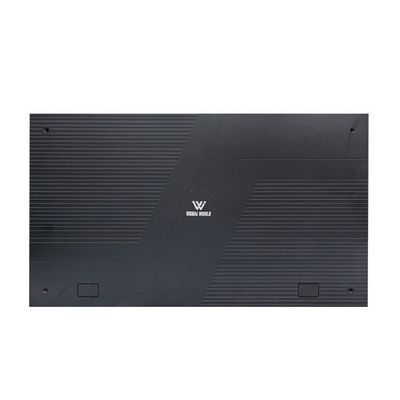

P0.7-P1.56 COB Small Pixel Pitch LED Display High-performance For Meeting Room
P0.7-P1.56 small pixel led display
,High Performance COB LED Display
,Meeting Room COB LED Display
P0.7-P1.56 COB Small Pixel Pitch LED Display High-performance For Meeting Room
Product Description:
Full inverted COB process, protection technology with anti-knock, waterproof, moisture, put salt spray, (to put an end to the LED screen in the high humidity and high salt spray environment due to the lamp moisture caused by blind lights or caterpillars and other failures).
Features:
- The full flip-chip COB process includes protection technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance, preventing LED screens from blinding or experiencing failures due to dampness in high-humidity and salt-spray conditions.
- The module features 3D ink printing technology, enhancing contrast by 20% and lowering display brightness requirements. It supports an LCD status display panel for intuitive real-time monitoring of cabinet operations.
- The module's PCB utilizes an HDI multi-layer circuit board design, ensuring good color uniformity and even temperature distribution.
- The entire series incorporates Sunrise's energy-efficient common cathode chip, delivering higher performance with grayscale levels up to 16-bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Support and service:
- Pre-Sale Service:
We respond to inquiries within 24 hours. We offer market research and forecasts tailored to the customer's needs, and personalized, professional solutions. Datasheets and samples are available upon request. Additional services, such as custom packaging design and factory visits, can also be arranged.
- In-Sale Service:
We continuously monitor the production process and provide photos and videos based on customer requests. Spare parts are supplied at no additional cost.
- After-Sale Service:
We respond to complaints within 24 hours, and maintenance guidance or problem resolution is provided within 48 hours. The product comes with a 24-month warranty. Free technician training is available. A full set of documents, including installation instructions, software operation manuals, easy maintenance guides, and control system software CDs, is provided at no cost.
FAQ:
Q1: How to install?
A1: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation.
Q2: How long is the warranty period?
A2: We offer a comprehensive two-year warranty covering structural integrity, installation, software programming, and product usage. Our dedicated after-sales team is available to assist with any queries or issues that may arise.
Q3: Can it be customized?
A3: We offer customization services to meet your specific needs. We can customize them to the way you want them to look, like size, shape, features, and more. In addition, we can customize your logo on the LED display.
Q4: How to guarantee product quality?
A4: We prioritize quality at every stage of production. Our rigorous quality control processes include stringent component selection, advanced manufacturing techniques, and comprehensive testing. Before shipment, each LED floor display undergoes a meticulous final inspection to ensure it meets our exacting standards.
Q5: How fast can you provide after-sale technical support after encountering product problems?
A5: We promise to provide professional after-sale technical support within 24 hours after receiving the customer's notice.
-
