Front Serviece COB Display With High Environmental Tolerance Rate and Lightweight Cabinet

Front Serviece COB Display With High Environmental Tolerance Rate and Lightweight Cabinet
Brand Name
Visual World
Product Model
COB P0.9 P1.9 P1.25 P1.56
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
China
MOQ
Negotiatble
Unit Price
Negotiatble
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:

Lightweight Cabinet COB Display

,

Front Serviece COB Display

,

High Environmental Tolerance Rate COB Display
Product Name: COB Small Pixel Pitch Indoor Display With Ultra Thin Cabinet For Multiple Usage In Both Outside And Inside
Brightness: 0-2000nits
Maintaince: Front Serviece
Cabinet Weight: 4.6kg
Cabinet Material: Die-casting Aliuminum
Pixel Pitch: P0.9 P1.9 P1.25 P1.56
Cabinet Dimension: 600x337.5mm
Warranty Time: 2 Years
IP Rate: IP 65
Gray Scale: 16 Bit
Installation: Mounting Hanging Stacking
Operational Humidity: 10%-90%RH
Operational Temp: -20°C~+50°C
Viewing Angle: H:170°, V:170°
Product Description
Detailed Specifications And Features

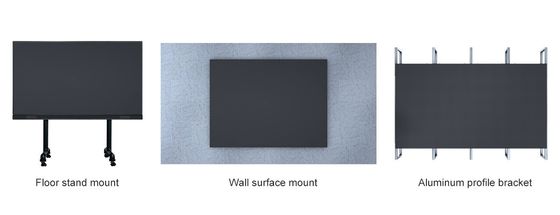

COB Display With High Environmental Tolerance Rate and Multiple Installation Method



Product Description:



Our COB Display combines durability with exceptional image quality, built to withstand dust, moisture, and temperature extremes for reliable indoor and outdoor use. With multiple installation options—wall-mounting, ceiling suspension, or freestanding—this display adapts to any environment, making it ideal for high-traffic areas, retail, events, and more.


Features:

  • Product Features: COB Small Pixel Pitch Indoor Display With Ultra-Thin Cabinet

  • Compact Dimensions: Cabinet size of 600 x 337.5 mm for flexible and space-efficient installation.
  • Temperature Range: Operates in temperatures from -20°C to +50°C, making it adaptable to various environments.
  • Wide Viewing Angle: Offers a 170° horizontal and vertical viewing angle for optimal visibility from multiple perspectives.

Technical Parameters:


Model P0.7 P0.9 P1.25 P1.56
Pixel Pitch 0.7mm 0.9mm 1.25mm 1.56mm
LED Type COB COB COB COB
Cabinet Dimensions 600337.535mm 600337.535mm 600337.535mm 600337.535mm
Module Size 150x168.75mm 150x168.75mm 150x168.75mm 150x168.75mm
Cabinet Weight 4.6kg 4.6kg 4.6kg 4.6kg
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Driving Type 1/36 1/36 1/27 1/48
Maintenance Front service Front service Front service Front service
Brightness 0-2000 nits 0-2000 nits 1500 nits 1000 nits
Max/Avg Power 390/136 W/m² 420/147 W/m² 330/100 W/m² 330/100 W/m²
IP Rating Front: IP65 Rear: IP30 Front: IP65 Rear: IP30 Front: IP65 Rear: IP30 Front: IP65 Rear: IP30
Refresh Rate >3840Hz >3840Hz >3840Hz >3840Hz
Installation Type Mounting, Hanging, Stacking Mounting, Hanging, Stacking Mounting, Hanging, Stacking Mounting, Hanging, Stacking
Gray Scale 16bit 16bit 16bit 16bit
Viewing Angle H:170°, V:170° H:170°, V:170° H:170°, V:170° H:170°, V:170°
Operational Temp -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C
Operational Humidity 10%-90%RH 10%-90%RH 10%-90%RH 10%-90%RH



Our Advantage:



Shine In The Dark



Front Serviece COB Display With High Environmental Tolerance Rate and Lightweight Cabinet 0





4K Image





Front Serviece COB Display With High Environmental Tolerance Rate and Lightweight Cabinet 1



High Gray Scale



Front Serviece COB Display With High Environmental Tolerance Rate and Lightweight Cabinet 2



High Resolution



Front Serviece COB Display With High Environmental Tolerance Rate and Lightweight Cabinet 3

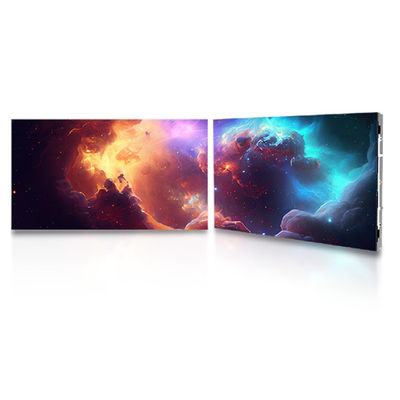

Seamless Display With Arbitrary Splicing



Front Serviece COB Display With High Environmental Tolerance Rate and Lightweight Cabinet 4





FAQ:
Q1: What control system is used, and how does it work?
A1: We use the Nova Taurus Series asynchronous control system, which supports cluster playback and management. You can easily control it via various devices, including APP, smartphone, Wi-Fi, iPad, laptop, PC, or through cloud control. It's very user-friendly and convenient.

Q2: Can I place a sample order for an LED screen?
A2: Yes, we encourage sample orders for testing and quality evaluation. Mixed samples are also accepted.

Q3: Can I have my logo printed on the product?
A3: Absolutely. Please let us know in advance and confirm the design based on our sample before production begins.

Q4: What is your delivery time?
A4: Typically, delivery takes 7-15 days after the deposit is received. However, the exact time depends on the order size and items.

Q5: What is your warranty policy?
A5: We offer a 2-year warranty. We also provide full support for structure design, installation issues, system troubleshooting, and screen usage.
Our professional after-sales team, along with your dedicated sales engineer, will assist with any questions you may have after your order.
