P0.9 P1.9 COB Indoor Small Pixel Pitch LED Display With Ultra Thin Cabinet And High Resolution

P0.9 P1.9 COB Indoor Small Pixel Pitch LED Display With Ultra Thin Cabinet And High Resolution
Brand Name
Visual World
Product Model
P0.9 P1.9
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
China
MOQ
Negotiatble
Unit Price
Negotiatble
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:

P1.9 COB Indoor LED Display

,

High Resolution Indoor LED Display

,

Ultra Thin Cabinet Indoor LED Display

Product Name: P0.9 P1.9 COB Small Pixel Pitch Indoor Display With High Resolution And Ultra Thin Cabinet
Brightness: 0-2000nits
Maintaince: Front Serviece
Cabinet Weight: 4.6kg
Cabinet Material: Die-casting Aliuminum
Pixel Pitch: P0.9 P1.9
Cabinet Dimension: 600x337.5mm
Warranty Time: 2 Years
Product Description
Detailed Specifications And Features

P0.9 P1.9 COB Small Pixel Pitch Indoor Display With High Resolution And Ultra Thin Cabinet



Product Description:

The P0.9 P1.9 COB Fine Pixel Pitch LED Display is a high-tech solution designed for street advertising, providing a superior visual experience with a fine pixel pitch of just 0.9mm and 1.90mm. With a lightweight design of only 4.6kg and an ultra-thin die-cast aluminum frame, it’s perfectly suited for outdoor advertising, offering both easy mobility and quick installation.


Features:

  • Flip-chip COB Technology: Ensures durability and reliability with features like anti-collision, waterproofing, moisture resistance, and salt spray resistance.
  • 3D Ink Printing: Boosts contrast by 20% while reducing brightness needs.
  • LCD Status Display: Provides real-time monitoring of cabinet performance.
  • HDI Multi-layer Circuit Board: Delivers exceptional color uniformity and effective heat dissipation.
  • Sunrise's Energy-Saving Chip: Offers superior performance and up to 16-bit grayscale levels.


Technical Parameters:


Model P0.7 P0.9 P1.25 P1.56
Pixel Pitch 0.7mm 0.9mm 1.25mm 1.56mm
LED Type COB COB COB COB
Cabinet Dimensions 600337.535mm 600337.535mm 600337.535mm 600337.535mm
Module Size 150x168.75mm 150x168.75mm 150x168.75mm 150x168.75mm
Cabinet Weight 4.6kg 4.6kg 4.6kg 4.6kg
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Driving Type 1/36 1/36 1/27 1/48
Maintenance Front service Front service Front service Front service
Brightness 0-2000 nits 0-2000 nits 1500 nits 1000 nits
Max/Avg Power 390/136 W/m² 420/147 W/m² 330/100 W/m² 330/100 W/m²
IP Rating Front: IP65 Rear: IP30 Front: IP65 Rear: IP30 Front: IP65 Rear: IP30 Front: IP65 Rear: IP30
Refresh Rate >3840Hz >3840Hz >3840Hz >3840Hz
Installation Type Mounting, Hanging, Stacking Mounting, Hanging, Stacking Mounting, Hanging, Stacking Mounting, Hanging, Stacking
Gray Scale 16bit 16bit 16bit 16bit
Viewing Angle H:170°, V:170° H:170°, V:170° H:170°, V:170° H:170°, V:170°
Operational Temp -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C
Operational Humidity 10%-90%RH 10%-90%RH 10%-90%RH 10%-90%RH



Our Advantage:



High Gray Scale

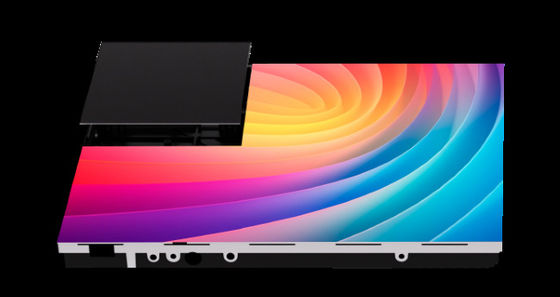

P0.9 P1.9 COB Indoor Small Pixel Pitch LED Display With Ultra Thin Cabinet And High Resolution 0



High Resolution

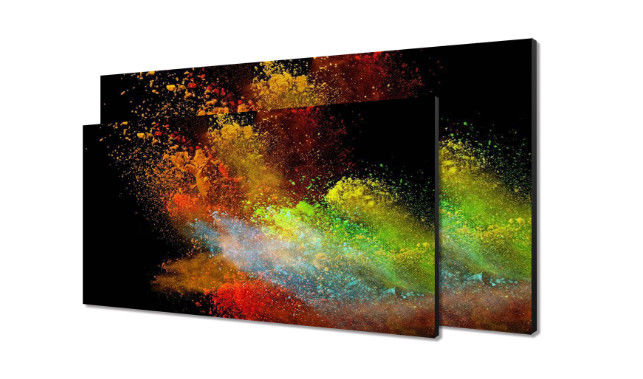

P0.9 P1.9 COB Indoor Small Pixel Pitch LED Display With Ultra Thin Cabinet And High Resolution 1



Seamless Display With Arbitrary Splicing

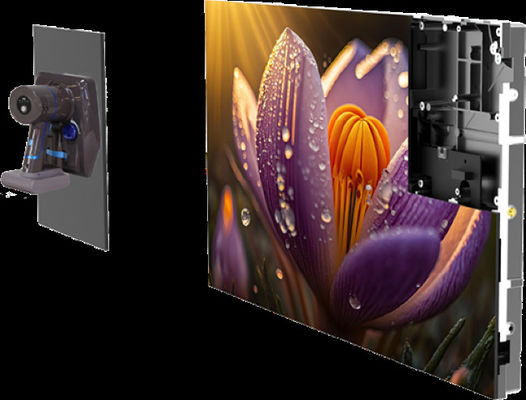

P0.9 P1.9 COB Indoor Small Pixel Pitch LED Display With Ultra Thin Cabinet And High Resolution 2





FAQ:
Q1: What control system is used, and how does it work?

A1: We use the Nova Taurus Series asynchronous control system, which supports cluster playback and management. You can easily control it via various devices, including APP, smartphone, Wi-Fi, iPad, laptop, PC, or through cloud control. It's very user-friendly and convenient.

Q2: Can I place a sample order for an LED screen?

A2: Yes, we encourage sample orders for testing and quality evaluation. Mixed samples are also accepted.

Q3: Can I have my logo printed on the product?

A3: Absolutely. Please let us know in advance and confirm the design based on our sample before production begins.

Q4: What is your delivery time?

A4: Typically, delivery takes 7-15 days after the deposit is received. However, the exact time depends on the order size and items.

Q5: What is your warranty policy?

A5: We offer a 2-year warranty. We also provide full support for structure design, installation issues, system troubleshooting, and screen usage.
Our professional after-sales team, along with your dedicated sales engineer, will assist with any questions you may have after your order.
