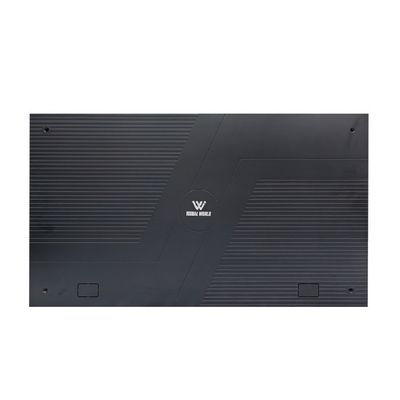

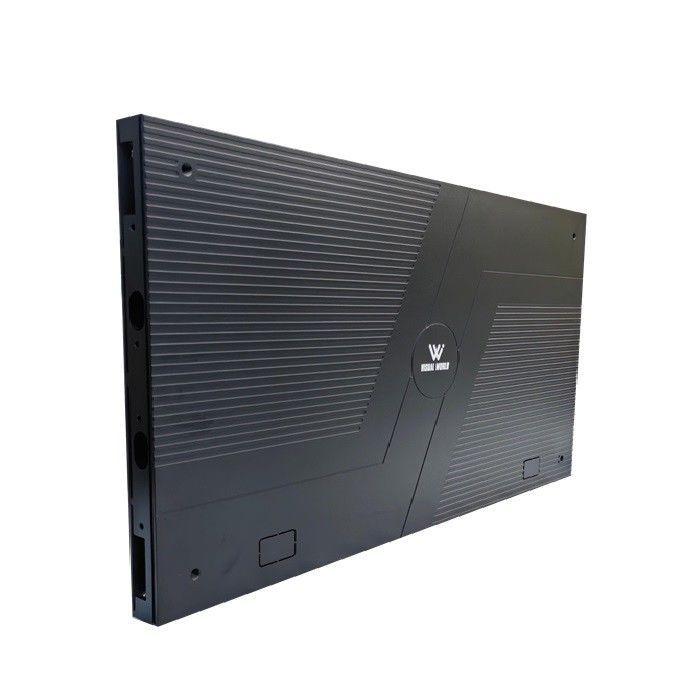

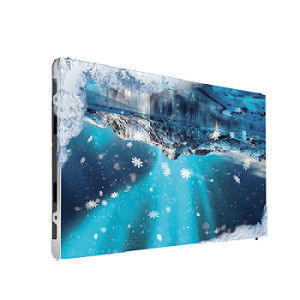

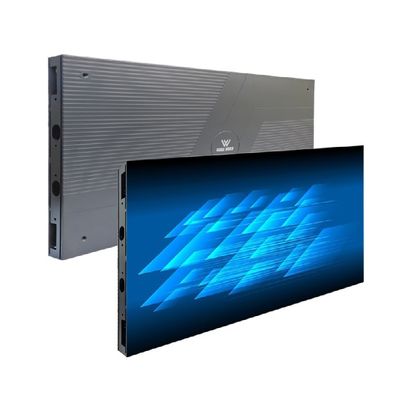

P0.7 Small Pixel Pitch LED Screen COB 600x337.5mm Die-casting Aliuminum Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.7 Small Pixel Pitch LED Screen COB 600x337.5mm Die-casting Aliuminum Cabinet | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Cabinet Dimension: | 600x337.5mm |
| Brightness: | 600-800nits | Refresh Rate: | ＞3840Hz |
| Durability: | 100000 Hours | Maintenance: | Front/Rear Service |
| Highlight: | Die-casting Aliuminum Cabinet LED Screen,COB Small Pixel Pitch LED Screen,P0.7 Small Pixel Pitch LED Screen |
||
Product Description
P0.7 Small Pixel Pitch LED Screen COB 600x337.5mm Die-casting Aliuminum Cabinet
Product Description:
P0.7 Small Pixel Pitch LED Screen is a state-of-the-art display solution that represents the pinnacle of visual technology. This high-definition display is designed for applications that demand the utmost clarity and detail, such as high-resolution presentations, intricate graphic displays, and immersive visual experiences.
Features:
- Full flip-chip COB process, protection technology includes: anti-collision, waterproof, moisture-proof, salt spray, (to prevent LED screens from blinding or caterpillar failures caused by lamp tubes getting damp in high-humidity and salt-spray environments) .
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*29.5mm | 600*337.5*29.5mm | 600*337.5*29.5mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
FAQ:
Q1:Can you provide customized services?
A1:Yes,we can design different category of products according to your demand.
Q2: Is it OK to print our logo on led screen product?
A2: Yes,we can print your logo according your request.
Q3: Can I order a sample for led display screen?
A3: Yes, we warmly welcome you to order a sample to test and check quality. You can choose any item what you want.
Q4: How much is the freight?
A4: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
Q5: What is price per square meter of screen?
A5: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q6: Do you offer guarantee for the products?
A6: Yes, we offer 2 years warranty to our products.
