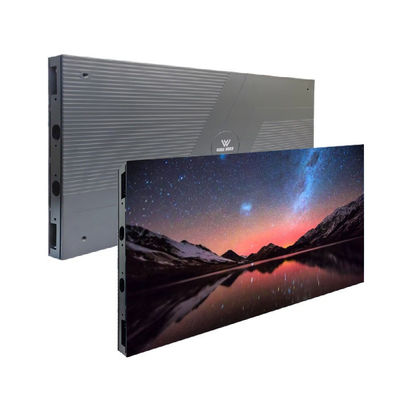

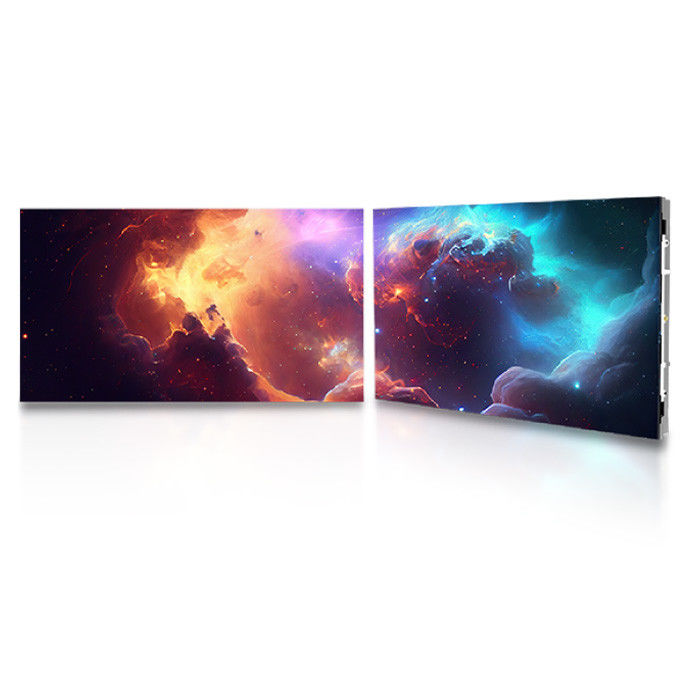

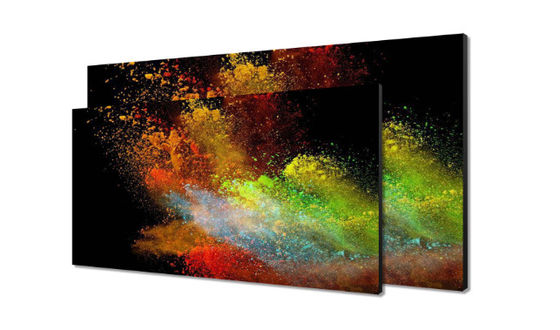

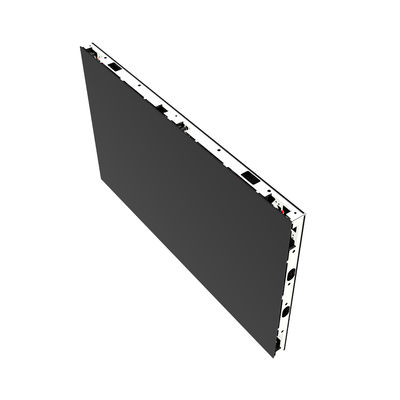

P1.56 Small Pixel Pitch LED Display 600x337.5mm COB Die-casting Aliuminum Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 | Refresh Rate: | ＞3840Hz |
|---|---|---|---|
| Brightness: | 600-800nits | Durability: | 100000 Hours |

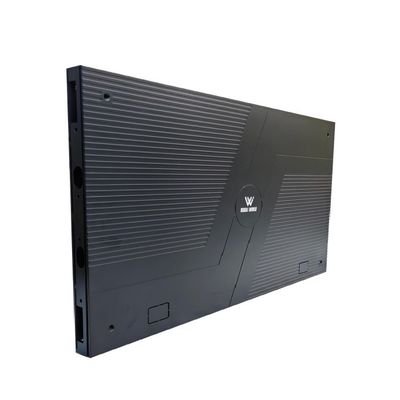

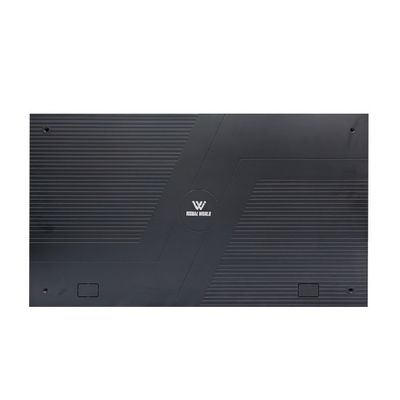

| Cabinet Material: | Die-casting Aliuminum | Display Type: | LED |
| Size: | 600x337.5mm | Maintenance: | Front/Rear Service |
| Highlight: | COB LED Display,P1.56 Small Pixel Pitch LED Display,Die-casting Aliuminum Cabinet LED Display |
||
Product Description
P1.56 Small Pixel Pitch LED Display 600x337.5mm COB Die-casting Aliuminum Cabinet
Product Description:
Full inverted COB process, protection technology with: anti-knock, waterproof, moisture, put salt spray, (to put an end to the LED screen in the high humidity and high salt spray environment due to the lamp moisture caused by blind lights or caterpillars and other failures).
Features:
- Full flip-chip COB process, protection technology includes: anti-collision, waterproof, moisture-proof, salt spray, (to prevent LED screens from blinding or caterpillar failures caused by lamp tubes getting damp in high-humidity and salt-spray environments) .
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
FAQ:
Q1: What's the weight and thickness of the LED cabinet?
A1:The weight of one cabinet is about 4.5kg. The The thickness is about 3.5cm.
Q2: What pitch do you have for COB Fine Pixel Pitch LED Display?
A2:We have small pitches from P0.7 to P1.56.
Q3. Can I have a sample order for LED display?
A3: Yes, we welcome sample order to test and check quality. Both for module or whole screen.
Q4. How do you ship the goods and how long does it take to arrive?
A4: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for LED display?
A5: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 1 years warranty to our products
Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
