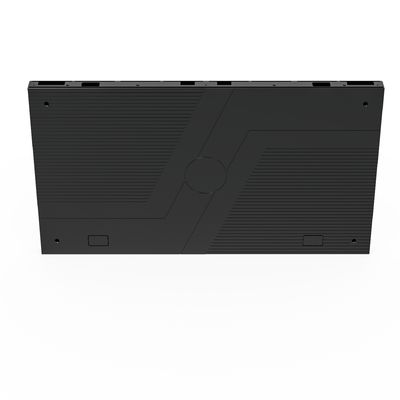

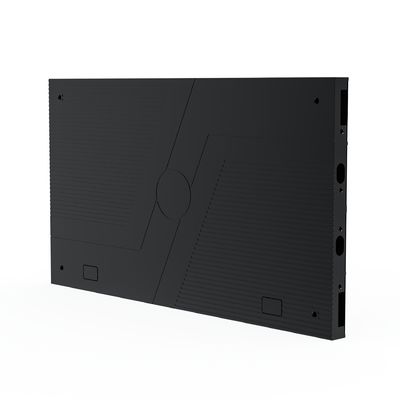

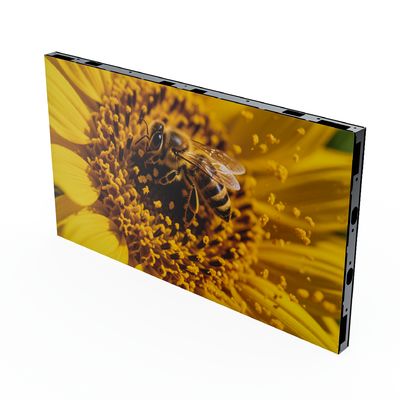

P0.7 Small Pixel Pitch LED Display Full Flip-chip COB Process 600x337.5mm Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Pixel Pitch: | P0.7/P0.9/P1.2 | Refresh Rate: | ＞3840Hz |
|---|---|---|---|
| Brightness: | 600-800nits | Durability: | 100000 Hours |
| Cabinet Material: | Die-casting Aliuminum | Display Type: | LED |
| Size: | 600x337.5mm | Maintenance: | Front/Rear Service |
| Highlight: | P0.7 Small Pixel Pitch LED Display,Full Flip-chip COB LED Display |
||
Product Description
P0.7 Small Pixel Pitch LED Display Full Flip-chip COB Process 600x337.5mm Cabinet
Product Description:
Full inverted COB process, protection technology with: anti-knock, waterproof, moisture, put salt spray, (to put an end to the LED screen in the high humidity and high salt spray environment due to the lamp moisture caused by blind lights or caterpillars and other failures).
Features:
- Full flip-chip COB process, protection technology includes: anti-collision, waterproof, moisture-proof, salt spray, (to prevent LED screens from blinding or caterpillar failures caused by lamp tubes getting damp in high-humidity and salt-spray environments) .
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating | Front: IP65 / Rear: IP30 | Front: IP65 / Rear: IP30 | Front: IP65 / Rear: IP30 | Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Packing and Shipping:
- Packaging
The Fine Pixel Pitch LED Display is first wrapped in a protective layer of bubble wrap to prevent any damage during transportation. It is then placed in a sturdy cardboard box with foam padding to provide additional protection.
The box is then sealed and labeled with the product name, model number, and shipping information.
- Shipping
We offer multiple shipping methods to ensure timely and secure delivery of our Fine Pixel Pitch LED Display.
For domestic orders, we use reliable courier services such as FedEx, UPS, and DHL. For international orders, we use air or sea freight depending on the customer's preference and location.
Our team carefully tracks and monitors the shipment until it reaches its final destination.
Upon arrival, the Fine Pixel Pitch LED Display is inspected and tested to ensure it is in perfect working condition before being delivered to the customer.
FAQ:
Q1: What's the weight and thickness of the LED cabinet?
A1:The weight of one cabinet is about 4.5kg. The The thickness is about 3.5cm.
Q2: What pitch do you have for COB Fine Pixel Pitch LED Display?
A2:We have small pitches from P0.7 to P1.56.
Q3: How to install?
A3:You only need to stack the cabinets one by one to install the screen on the structure on the wall. And the cabinet is light(4.5kg/pcs), it's convenient for workers to assemble.
Q4: Are you trading company or manufacturer?
A4: VISUAL WORLD is a professional LED display manufacturer, having been enrolled in led display industry with professional
R&D team and skilled QC team for 10 years.
Q5: What is the control system? How is it?
A5: We use Nova Taurus Series asynchronous control system. Support cluster play and management.
Support APP/Phone/WIFI Ipad/Laptop/PC/Cloud control. It's very easy and convenient to control.
Q6: What is your best service?
A6: One to one sales engineer to customer responsibility system. We will do:
1) Know your project and provide the best solution for it.
2) Track your order and let you know each step and detail of it.
3) Teach you how to install and use the screen.
4) Care the subsequent use of your screen and ensure vour after -sales service be well.
Q7: How about your Warranty Term?
A7: 2-year warranty. we have professional after-sale team to solve your any questions after you placed an order.
And your exclu-sive sales engineer will also help you to get over any problems.
