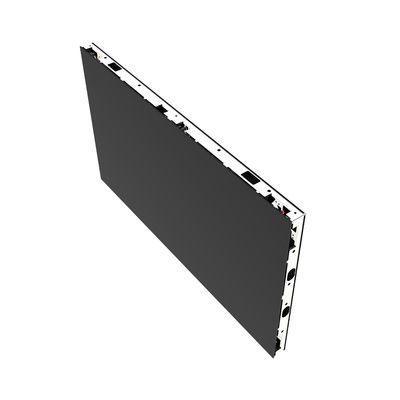

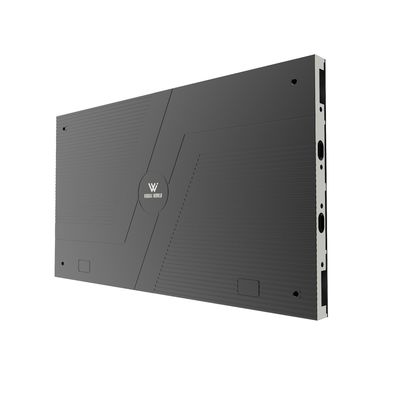

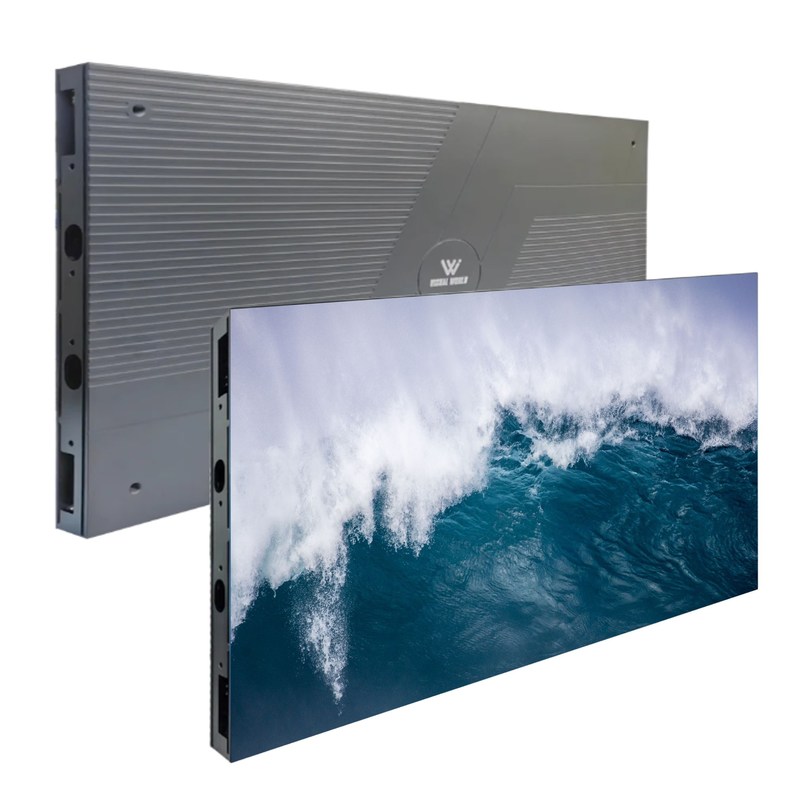

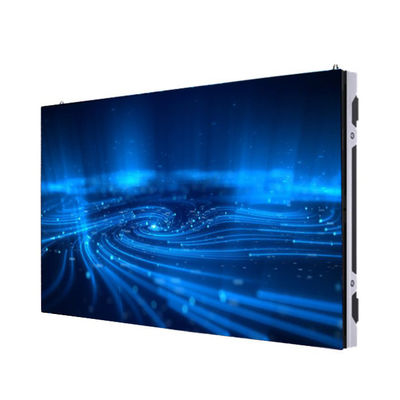

COB P1.56 Fine Pixel Pitch LED Display 600x337.5mm Cabinet With Die-casting Aliuminum Material
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.56 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 | Refresh Rate: | ＞3840Hz |
|---|---|---|---|
| Brightness: | 600-800nits | Durability: | 100000 Hours |
| Cabinet Material: | Die-casting Aliuminum | Display Type: | LED |
| Size: | 600x337.5mm | Maintenance: | Front/Rear Service |
| Highlight: | 600x337.5mm Fine Pixel Pitch LED Display,P1.56 Fine Pixel Pitch LED Display |
||
Product Description
COB P1.56 Fine Pixel Pitch LED Display
600x337.5mm Cabinet With Die-casting Aluminum Material
Product Overview
Full inverted COB process with advanced protection technology including anti-knock, waterproof, moisture-proof, and salt spray resistance. This display eliminates common failures caused by LED moisture in high humidity and high salt spray environments.
Key Features
- Full flip-chip COB process with anti-collision, waterproof, moisture-proof, and salt spray protection
- 3D ink printing technology increases contrast by 20% and reduces brightness requirements
- LCD status display panel for real-time cabinet operation monitoring
- HDI multi-layer circuit board design ensures excellent color uniformity and temperature distribution
- Sunrise energy-saving common cathode chip with 16-bit grayscale level
Technical Specifications
| Parameter | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type | 1/36 | 1/36 | 1/27 | 1/48 |
| Maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m² | 420/147 W/m² | 330/100 W/m² | 330/100 W/m² |
| IP Rating | Front: IP65 / Rear: IP30 | Front: IP65 / Rear: IP30 | Front: IP65 / Rear: IP30 | Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°; V:170° | H:170°; V:170° | H:170°; V:170° | H:170°; V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications
- Digital Signage systems
- Chain stores
- Street furniture
- Billboards
- Football stadiums
- Perimeter LED posters
- Arena displays
Packaging & Shipping
Packaging:
- Protective bubble wrap layer for transportation safety
- Sturdy cardboard box with foam padding
- Clear labeling with product name, model number, and shipping information
Shipping:
- Multiple shipping methods available for domestic and international orders
- Domestic: FedEx, UPS, DHL
- International: Air or sea freight options
- Comprehensive tracking and monitoring throughout shipment
- Final inspection and testing before customer delivery
Frequently Asked Questions
Are you a factory or trading company?
We are an OEM/ODM factory.
How long is the warranty time for your products?
Our officially promised warranty time is one full year after delivery.
What are the shipment terms and delivery time?
Delivery terms depend on order quantity. Standard shipment time is 3-8 working days after delivery. We offer express and air freight for samples and orders under 100KG, with air and sea shipping for larger orders.
Is it possible to have my logo on the product?
We support customized logo service with an additional service fee.
What products can I buy from you?
LED Displays, outdoor LED displays, LED billboards, LED modules, and indoor LED displays.
